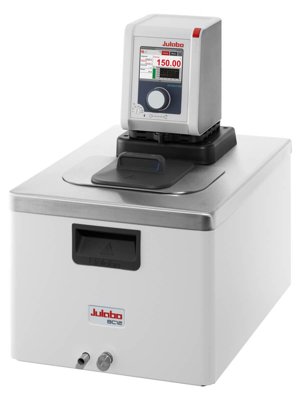

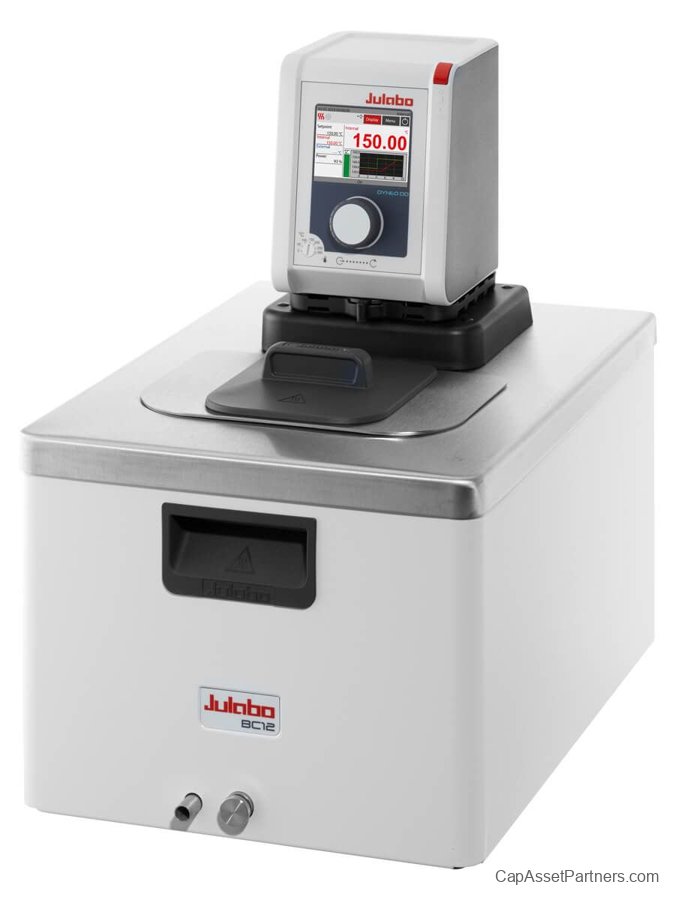

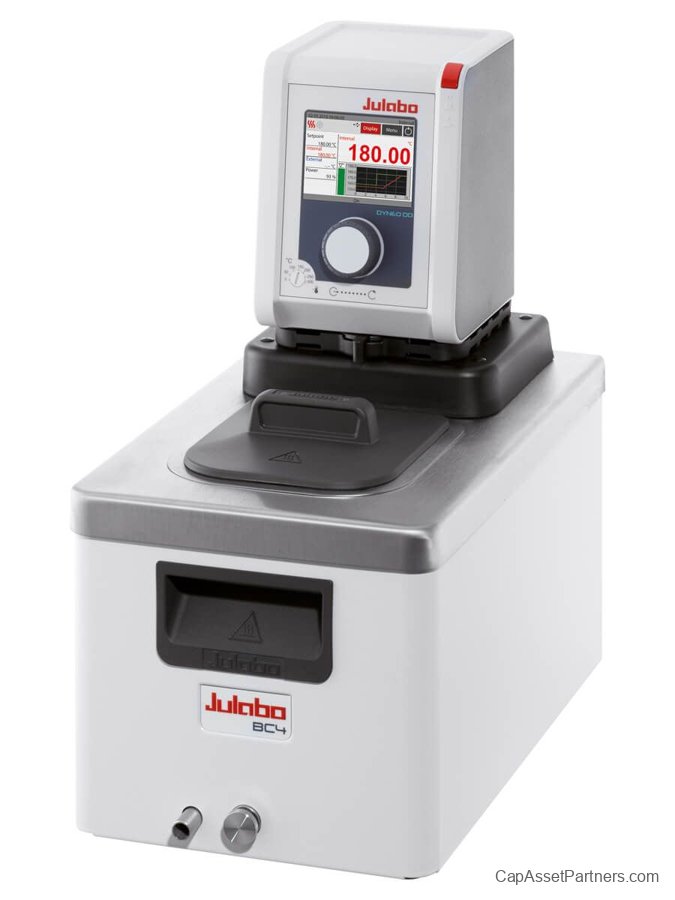

DYNEO DD-BC Series Heating Circulators
The DYNEO DD heating circulators are meticulously designed for both internal and external applications. Equipped with closed bath tanks, these circulators feature excellent thermal insulation along with a counter-cooling coil. Efficient maintenance is made easy thanks to the integrated drain tap that allows for clean and safe emptying of the tank. The operational interface is simplified with a multilingual 3.5-inch color display and a unique rotary knob, ensuring an intuitive user experience.
Key Features
- Designed for versatile internal and external applications.
- Features a powerful, infinitely adjustable pressure pump.
- Delivers a flow rate of 22 l/min with a pressure of 0.6 bar.
- Seamlessly switches between internal and external circulation modes.
- Generous large color TFT display with a comprehensive multilingual interface.
- Central rotary knob for straightforward operation.
- Built-in programmer for enhanced functionality.
- Includes an external Pt100 connection as well as USB and RS232 interfaces.
- Comes with a bath cover included for added protection.
- Integrated drain for easy, safe liquid removal.
- High-quality thermal insulation ensures efficient temperature control.
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Filling Volume |
Heating Capacity |
Flow Rate |
Flow Pressure |
Water Bath Dimensions |
Voltage |
Heaters |
| 9021504.22 |
20°C to 200°C (68°F to 392°F) |
N/A |
N/A |
1kW |
22 L/Min |
N/A |
N/A |
100-115V/50-60Hz |
N/A |
| 9021504.33 |
20°C to 200°C (68°F to 392°F) |
N/A |
N/A |
2kW |
22 L/Min |
N/A |
N/A |
200-230V/50-60Hz |
N/A |
| 9021506.22 |
20°C to 200°C (68°F to 392°F) |
N/A |
N/A |
1kW |
22 L/Min |
N/A |
N/A |
100-115V/50-60Hz |
N/A |
| 9021506.33 |
20°C to 200°C (68°F to 392°F) |
N/A |
N/A |
2kW |
22 L/Min |
N/A |
N/A |
200-230V/50-60Hz |
N/A |
| 9021512.22 |
20°C to 200°C (68°F to 392°F) |
+/- 0.01 °C |
8.5 to 12 L |
1kW |
8 to 23 L/Min |
1.5 to 8.7 psi |
8.7 x 5.9 / 7.9 in |
100-115V/50-60Hz |
N/A |
| 9021512.33 |
20°C to 200°C (68°F to 392°F) |
+/- 0.01 °C |
8.5 to 12 L |
2kW |
8 to 23 L/Min |
1.5 to 8.7 psi |
8.7 x 5.9 / 7.9 in |
200-230V/50-60Hz |
N/A |
| 9021526.22 |
20°C to 200°C (68°F to 392°F) |
+/- 0.01 °C |
19 to 26 L |
1kW |
8 to 23 L/Min |
1.5 to 8.7 psi |
10.2 x 13.8 / 7.9 in |
100-115V/50-60Hz |
N/A |
| 9021526.33 |
20°C to 200°C (68°F to 392°F) |
+/- 0.01 °C |
19 to 26 L |
2kW |
8 to 23 L/Min |
1.5 to 8.7 psi |
10.2 x 13.8 / 7.9 in |
200-230V/50-60Hz |
N/A |
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
Dimensions |
| 9021504.22 |
64 lb |
N/A |
N/A |
N/A |
N/A |
N/A |
| 9021504.33 |
64 lb |
N/A |
N/A |
N/A |
N/A |
N/A |
| 9021506.22 |
64 lb |
N/A |
N/A |
N/A |
N/A |
N/A |
| 9021506.33 |
64 lb |
N/A |
N/A |
N/A |
N/A |
N/A |
| 9021512.22 |
64 lb |
N/A |
N/A |
0.1 °C |
3.5 TFT Display |
13 x 19.3 x 18.5 In |
| 9021512.33 |
64 lb |
N/A |
N/A |
0.1 °C |
3.5 TFT Display |
13 x 19.3 x 18.5 In |
| 9021526.22 |
106 lb |
N/A |
N/A |
0.1 °C |
3.5 TFT Display |
15.3 x 24.4 x 18.9 In |
| 9021526.33 |
106 lb |
N/A |
N/A |
0.1 °C |
3.5 TFT Display |
15.3 x 24.4 x 18.10 In |
