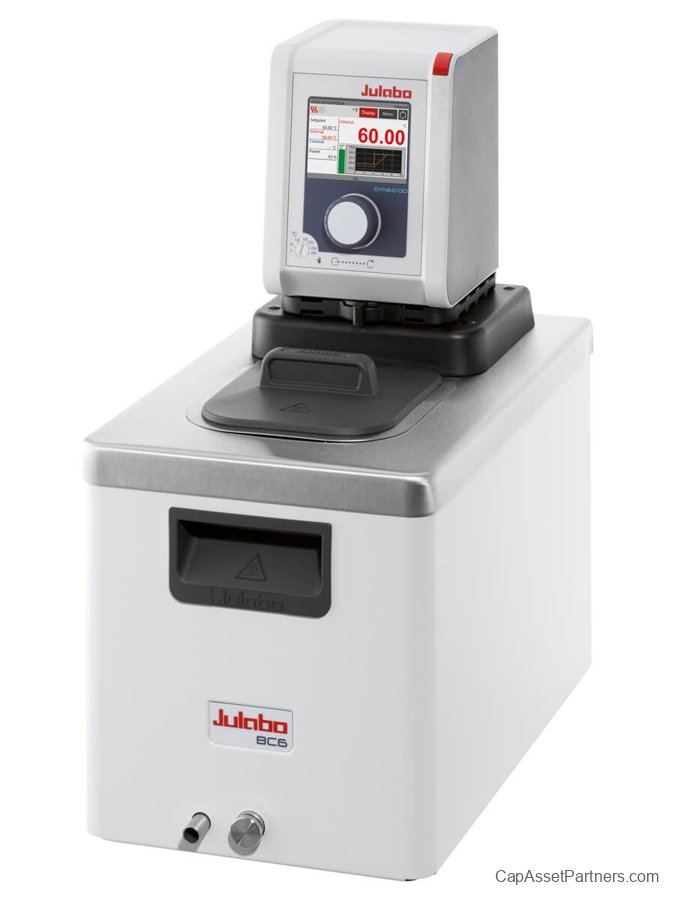

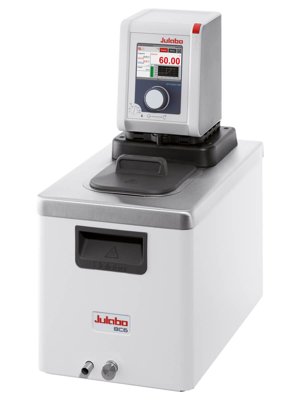

DYNEO DD-Series Digital/Analog Heating Circulators
Introducing the DYNEO DD-Series Digital/Analog Heating Circulators, a high-performance solution for both internal and external applications. These advanced heating circulators are designed with closed bath tanks that offer exceptional insulation, ensuring efficient thermal regulation. Equipped with a counter-cooling coil and a thoughtfully integrated drain tap, these units facilitate safe and clean liquid disposal.
Key Features
- Versatile design for internal and external applications.
- Powerful, infinitely adjustable pressure pump.
- Flow rate: 22 L/min, pressure: up to 0.6 bar.
- Seamless switching between internal and external circulation.
- Large, vibrant color TFT display with a multilingual interface for easy operation.
- Central rotary knob for intuitive control.
- Integrated programming capabilities for precise temperature control.
- External Pt100 connection for enhanced measurement accuracy.
- USB port and RS232 or analog interfaces for comprehensive connectivity.
- Bath cover included with each unit for optimal performance.
- High-quality thermal insulation within the bath tank for consistent temperature stability.
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Filling Volume |
Heating Capacity |
Flow Rate |
Flow Pressure |
Water Bath Dimensions |
Voltage |
Heaters |
| 9021504.22.A |
20°C to 200°C (68°F to 392°F) |
+/- 0.01 °C |
3 to 4.5 L |
1 kW |
8 to 23 L/min |
1.5 to 8.7 psi |
5.1 x 5.9 / 5.9 in |
100-115V/50-60Hz |
– |
| 9021504.22.D |
20°C to 200°C (68°F to 392°F) |
+/- 0.01 °C |
3 to 4.5 L |
1 kW |
8 to 23 L/min |
1.5 to 8.7 psi |
5.1 x 5.9 / 5.9 in |
100-115V/50-60Hz |
– |
| 9021504.33.A |
20°C to 200°C (68°F to 392°F) |
+/- 0.01 °C |
3 to 4.5 L |
2 kW |
8 to 23 L/min |
1.5 to 8.7 psi |
5.1 x 5.9 / 5.9 in |
200-230V/50-60Hz |
– |
| 9021504.33.D |
20°C to 200°C (68°F to 392°F) |
+/- 0.01 °C |
3 to 4.5 L |
2 kW |
8 to 23 L/min |
1.5 to 8.7 psi |
5.1 x 5.9 / 5.9 in |
200-230V/50-60Hz |
– |
{/ Additional Entries /}
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
| 9021504.22.A |
64 lb |
22 x 22 x 22 in |
PID2 temperature control |
0.1 °C |
Large color TFT display, multilingual interface |
| 9021504.22.D |
64 lb |
22 x 22 x 22 in |
PID2 temperature control |
0.1 °C |
Large color TFT display, multilingual interface |
