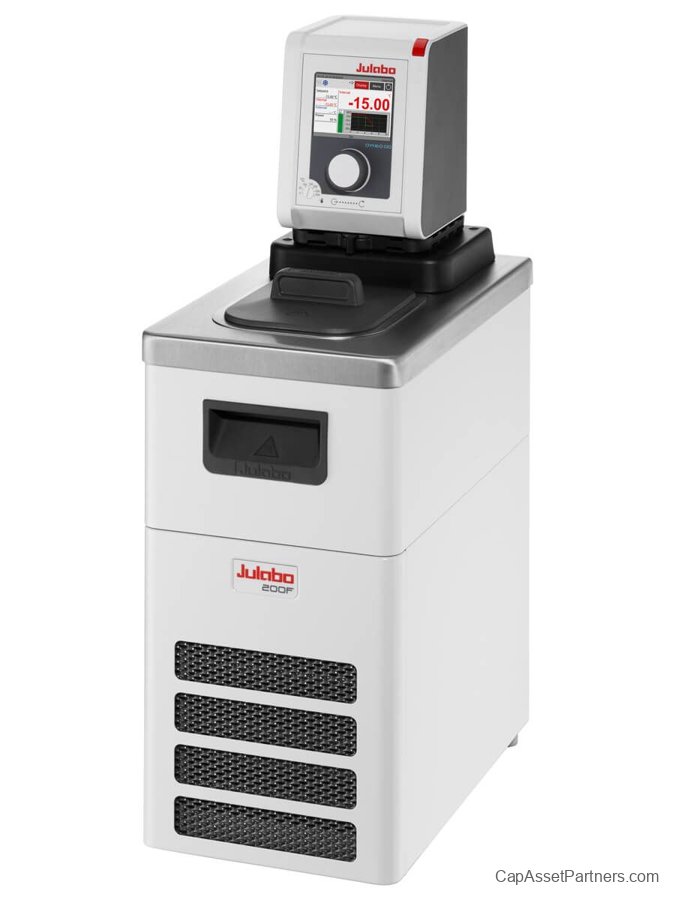

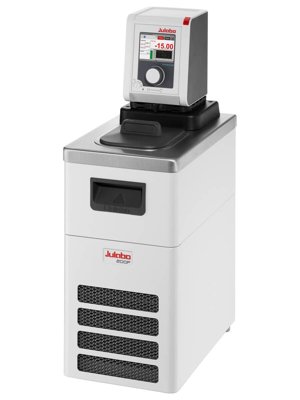

DYNEO DD-Series Digital/Analog Refrigerated/Heating Circulators
The DYNEO DD-Series Refrigerated/Heating Circulators are designed for precision temperature control in laboratory and industrial applications. With an extensive working temperature range from -50 to +200 °C, these circulators provide both refrigerated and heating capabilities, making them ideal for a variety of tasks. They are engineered for internal and external circulation, ensuring versatility and adaptability in different environments.
Key Features:
- Powerful cooling machines suitable for versatile applications.
- Optimized cooling coil design maximizes space utilization in the bath tank.
- Infinitely adjustable pressure pump with flow rate of 22 l/min and pressure of 0.6 bar.
- Seamless switching between internal and external circulation to meet various operational needs.
- Large 3.5-inch color TFT display with a multilingual interface for easy readability and operation.
- Central rotary knob simplifies user interaction and navigation.
- Integrated programmer for advanced scheduling and process control.
- External Pt100 connection for precise temperature measurement.
- USB port and optional RS232 or analog interfaces for enhanced connectivity.
- Delivery includes a bath cover and an integrated drain for safe and efficient liquid evacuation.
Specifications:
| SKU |
Temperature Range |
Temperature Stability |
Filling Volume |
Heating Capacity |
Flow Rate |
Flow Pressure |
Water Bath Dimensions |
Voltage |
Cooling Capacity |
| 9021701.02.A |
-20 to +200 °C |
± 0.01 °C |
3 to 4 L |
1 kW |
22 l/min |
0.6 bar |
5.1 x 5.9 in |
115V/60Hz |
|
| 9021701.02.D |
-20 to +200 °C |
± 0.01 °C |
3 to 4 L |
1 kW |
22 l/min |
0.6 bar |
5.1 x 5.9 in |
115V/60Hz |
|
| 9021701.33.A |
-20 to +200 °C |
± 0.01 °C |
3 to 4 L |
2 kW |
22 l/min |
0.6 bar |
5.1 x 5.9 in |
230V/50-60Hz |
|
| 9021701.33.D |
-20 to +200 °C |
± 0.01 °C |
3 to 4 L |
2 kW |
22 l/min |
0.6 bar |
5.1 x 5.9 in |
230V/50-60Hz |
|
Additional Information:
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
Dimensions |
| 9021701.02.A |
105 lb |
32 x 24 x 40 in |
PID2 temperature control |
0.1 °C |
3.5 TFT Display |
9.1 x 15.3 x 25.6 in |
| 9021701.02.D |
105 lb |
32 x 24 x 40 in |
PID2 temperature control |
0.1 °C |
3.5 TFT Display |
9.1 x 15.3 x 25.6 in |
| 9021701.33.A |
105 lb |
32 x 24 x 40 in |
PID2 temperature control |
0.1 °C |
3.5 TFT Display |
9.1 x 15.3 x 25.6 in |
| 9021701.33.D |
105 lb |
32 x 24 x 40 in |
PID2 temperature control |
0.1 °C |
3.5 TFT Display |
9.1 x 15.3 x 25.6 in |
