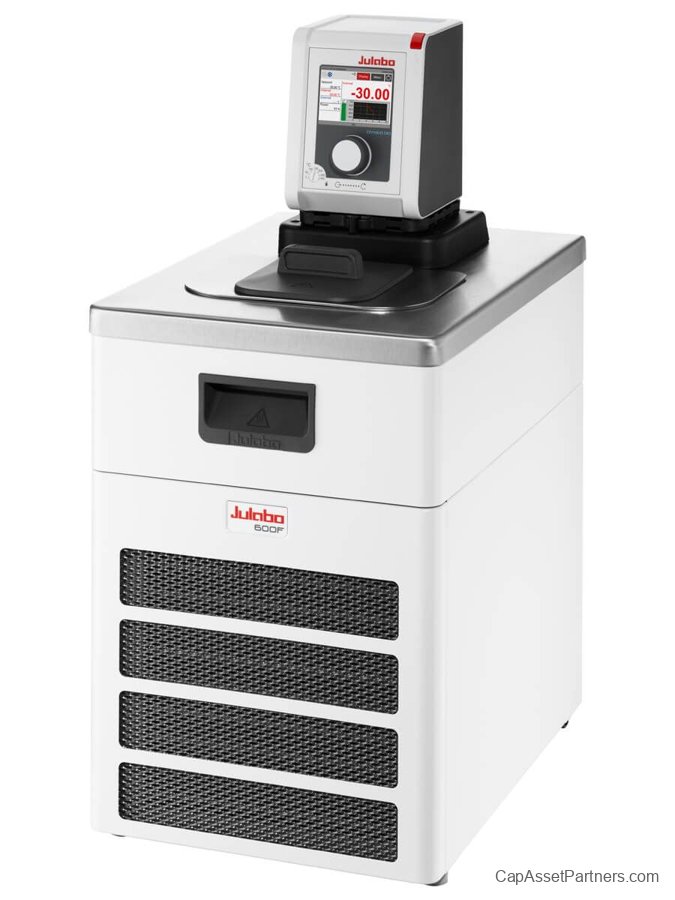

DYNEO DD Series Refrigerated/Heating Circulators
The DYNEO DD Series Refrigerated/Heating Circulators are designed for both internal and external applications, making them an essential tool for laboratories and industrial settings. With a wide working temperature range, these powerful circulators ensure precise and reliable operation even in elevated ambient temperatures of up to +40 °C.
Key Features
- High-powered cooling systems suitable for diverse applications.
- Innovative cooling coil design maximizes space efficiency in bath tanks.
- Robust and infinitely adjustable pressure pump enhances fluid control.
- Flow rate of 22 l/min with a pressure rating of 0.6 bar for optimal performance.
- Seamless transition between internal and external circulation.
- Multilingual 3.5-inch color TFT display for enhanced user experience.
- Simplified operation via a central rotary knob controller.
- Integrated programming functionality for complex applications.
- External Pt100 connection for advanced temperature measurement.
- USB port and optional RS232 or analog interfaces for data connectivity.
- Includes bath cover for liquid containment and safety during use.
- Integrated drain system allows for easy and safe liquid disposal.
Specifications
| SKU |
Flow Rate |
Temperature Stability |
Voltage |
Cooling Capacity |
Heating Capacity |
Flow Pressure |
Filling Volume |
| 9021701.02 |
8 to 23 L/Min |
+/- 0.01 °C |
115V/60Hz |
0.2 kW |
1 kW |
1.5 to 8.7 psi |
3 to 4 L |
| 9021701.33 |
8 to 23 L/Min |
+/- 0.01 °C |
230V/50-60Hz |
0.2 kW |
2 kW |
1.5 to 8.7 psi |
3 to 4 L |
Additional Info
| SKU |
Resolution |
Dimensions |
Temperature Display |
| 9021701.02 |
0.1 °C |
9.1 x 15.3 x 25.6 In |
3.5 TFT Display |
| 9021701.33 |
0.1 °C |
9.1 x 15.3 x 25.6 In |
3.5 TFT Display |
