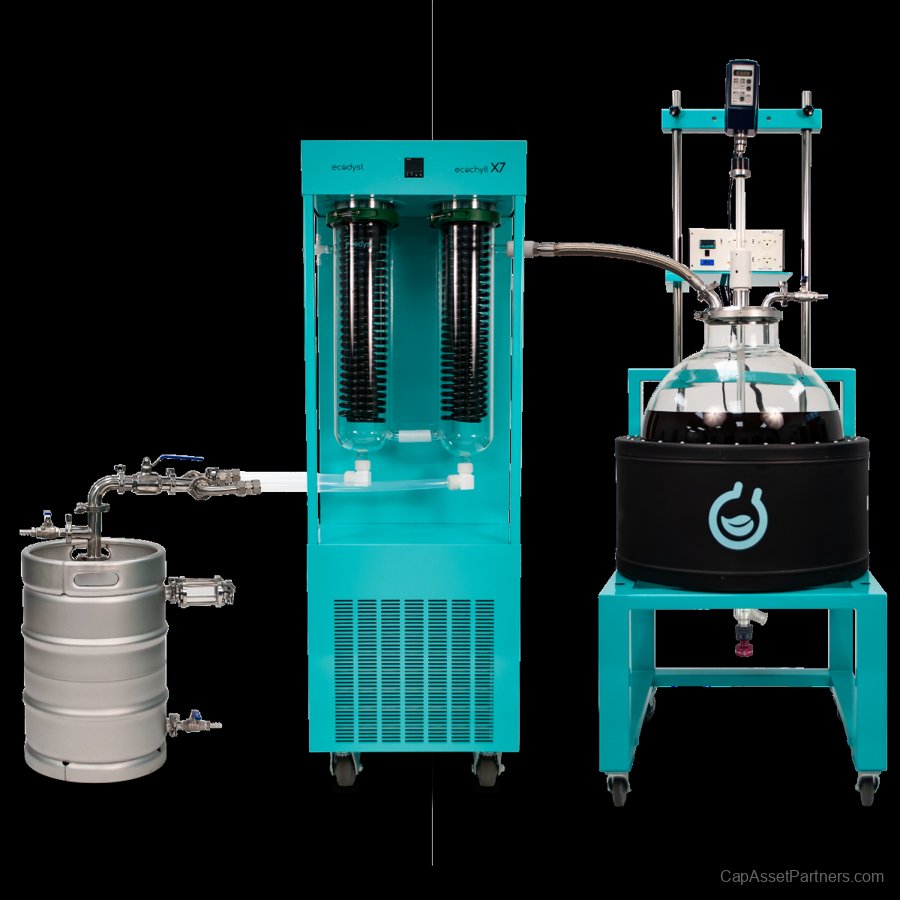

EcoChyll X7 Rotary Evaporator, 22L
The EcoChyll X7 Rotary Evaporator is a cutting-edge solution for efficient solvent recovery and evaporation, designed specifically for the rigorous demands of the cannabis and hemp industries. Its exceptional performance and user-friendly features make it an indispensable tool for any laboratory.
Key Features
- Efficiently recovers all residual solvents, maintaining levels below 500ppm.
- Versatile solvent handling, accommodating a broad spectrum of solvents, including water and common solvents.
- Stationary evaporation flask for seamless operation—a siphon feed valve fills the flask while a drain valve empties it without the need for glassware relocation.
- Designed for in-line incorporation with botanical extraction or winterization systems, fully automated for convenience.
- Large evaporation flask designed to prevent solution “bumping” into the condensation unit.
- Advanced digital interfaces offer comprehensive data monitoring for stirring rod, vacuum pump, chiller, and heating mantle.
- Patented EcoChyll condensation unit achieves -40°C on the coils in less than one minute, ensuring rapid cooling.
- Streamlined single user operation minimizes interruptions during processes.
- Capable of evaporating ethanol at remarkably low temperatures of 38°C.
- Engineered for energy efficiency, optimizing performance while reducing operational costs.
- Integrated safety features ensure automatic shutdown for enhanced user protection.
Specifications
Equipment Dimensions
- Approximate Dimensions: 62” L x 30” W x 75” H
- Mobility: All components are mounted on locking wheels for easy transport within the lab.
Electrical Specifications
- Total Power Usage: 13.3kW
- Heating Mantle: 50amp, 230V single-phase line, 11.5kW
- X7 EcoChyll: 15amp 230V single-phase line, 1.8kW
- Vacuum pump, stirring rod, and liquid transfer pump operate using standard 115V (or 230V) lines.
Technical Details
- Evaporation Flask Load Volume: 22L
- Minimum Load Volume for Evaporation Flask: 2L
- Receiving Keg Load Volume: 60L
- EcoChyll Cooling Capacity: Available upon request
- EcoChyll Minimum Temperature: -50°C
- Condenser Double-Coil Surface Area: ~9,000 cm²
- Heating Mantle Maximum Temperature: 250°C
- Overhead Stirrer Maximum Speed: 1800rpm (recommended 150rpm)
- Overhead Stirrer Maximum Torque: 50 in-lbs = 800 in-oz
- Metal Parts: Constructed from durable Stainless Steel 316
- Glass Parts: Made from high-quality Borosilicate glass
- Sealing and Tubing Materials: PTFE and FEP
