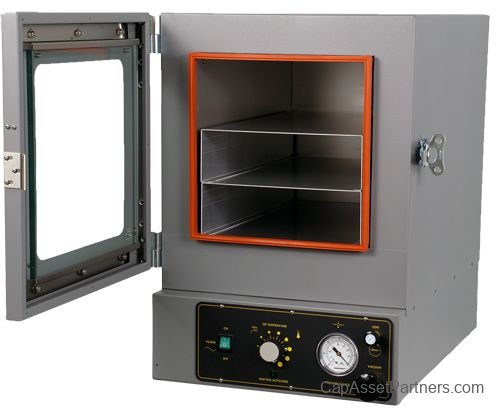

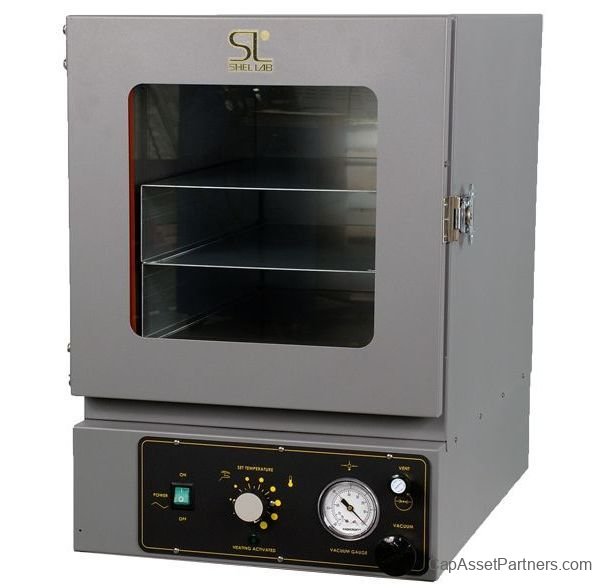

Economy Vacuum Ovens
Optimize your laboratory's drying process with our exceptional Economy Vacuum Ovens, designed for fast and gentle drying of heat-sensitive materials. These sophisticated ovens effectively eliminate residue accumulation on products and allow for the safe drying of flammable solvents, enhancing both safety and efficiency in your operations.
Key Features
- Radiant Heating System: Experience excellent heat transfer and temperature uniformity that maximizes chamber space for a more effective drying process.
- Durable Construction: Built with high-quality stainless steel chambers that are easy to clean and maintain, ensuring long-lasting performance.
- Enhanced Sealing: Positive latch handles with spring-loaded glass create a secure vacuum seal, minimizing gasket wear.
- View from Afar: The tempered glass viewing window allows for safe and continuous monitoring of samples without compromising safety.
- Versatile Gasket Options: Depending on your application, you can select from silicone, Buna, Fluorosilicone, or Viton® gaskets to meet your specific needs.
Applications
- Outgassing Solids and Liquids
- Chemical Resistance Studies
- Drying of Paper, Rubber, and Textiles
- Electronic Process Control
Technical Specifications
Analog Temperature Control
- Temperature Uniformity: +/- 3.0°C at 60°C, +/- 9.0°C at 120°C, +/- 13.0°C at 200°C
- Temperature Range: Ambient +15°C to 210°C
- Heat-Up Time: Reaches 150°C in approximately 90 minutes
Vacuum Control
- Vacuum Range: inch Hg (-3.0 to -29.9), kPa (-10 to -101), mbar (-101 to -1010)
- Display Range: Analog Dial Gauge (0 to 30 inch Hg, 0 to 76 cm Hg)
Model Overview
| Model |
SVAC1E |
SVAC2E |
| Exterior Dimensions (W x D x H) |
15.5 x 19.0 x 22.5" (39.4 x 48.3 x 57.2 cm) |
18.5 x 27.8 x 25.3" (47.0 x 70.5 x 64.2 cm) |
| Chamber Dimensions (W x D x H) |
9.0 x 12.0 x 9.0" (22.8 x 30.4 x 22.8 cm) |
12.0 x 20.0 x 12.0" (30.4 x 50.8 x 30.4 cm) |
| Oven Chamber Capacity |
0.6 cu ft (17 L) |
1.7 cu ft (48 L) |
| Number of Shelves |
2 included |
2 included |
