ED-S Series Solid Drying and Heating Chambers
The BINDER Series ED-S Solid Line Drying and Heating Chambers are meticulously engineered for precision drying and heating applications, making them ideal for research and quality assurance environments. With a robust design and advanced technology, these chambers provide reliable and consistent performance, tailored to meet specific application needs.
Key Features
- Temperature Range: +7°C above ambient temperature to +250°C
- Advanced APT.line™ Technology: Integrates preheating capabilities for enhanced thermal conditioning
- Natural Convection: Ensures uniform temperature distribution for optimal results
- Adjustable Exhaust Air Flap: Customize ventilation based on specific drying requirements
- User-Friendly Controller: Comes with timer function for precise operation management
- Included Rack: 1 chrome-plated rack with shelf supports for versatile loading options
- Safety Features: Class 2 independent adjustable temperature safety device (DIN 12880) with a visual alarm for enhanced operational safety
Benefits
- Easy Handling: Designed for convenient access and usability
- Accurate Temperature Control: Achieve and maintain desired conditions with confidence
- Ergonomic Door Design: Simplified door opening mechanism for enhanced user experience
Specifications
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Warm Up Time |
| 9090-0014 |
+7°C to +250°C |
± 0.8°C at 150°C |
± 2.8°C at 150°C |
60 min to 150°C |
| 9090-0015 |
+7°C to +250°C |
± 0.8°C at 150°C |
± 2.8°C at 150°C |
60 min to 150°C |
| 9090-0020 |
+7°C to +250°C |
± 0.9°C at 150°C |
± 2.8°C at 150°C |
55 min to 150°C |
| 9090-0021 |
+7°C to +250°C |
± 0.9°C at 150°C |
± 2.8°C at 150°C |
55 min to 150°C |

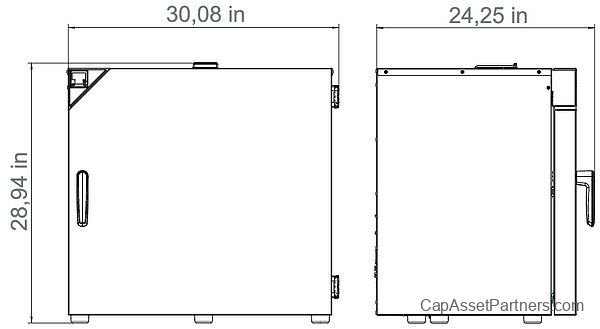

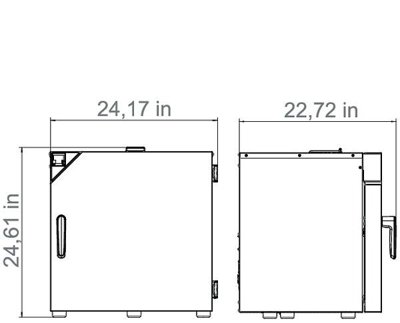

Additional Information
| SKU |
# of Shelves |
Depth |
Height |
Width |
Power Requirement |
| 9090-0014 |
1 std./3 max. |
22.73 in |
24.63 in |
24.19 in |
230 V, 50/60 Hz |
| 9090-0015 |
1 std./3 max. |
22.73 in |
24.63 in |
24.19 in |
120 V, 60 Hz |
| 9090-0020 |
1 std./5 max. |
24.27 in |
28.96 in |
30.1 in |
230 V, 50/60 Hz |
| 9090-0021 |
1 std./5 max. |
24.27 in |
28.96 in |
30.1 in |
120 V, 60 Hz |
