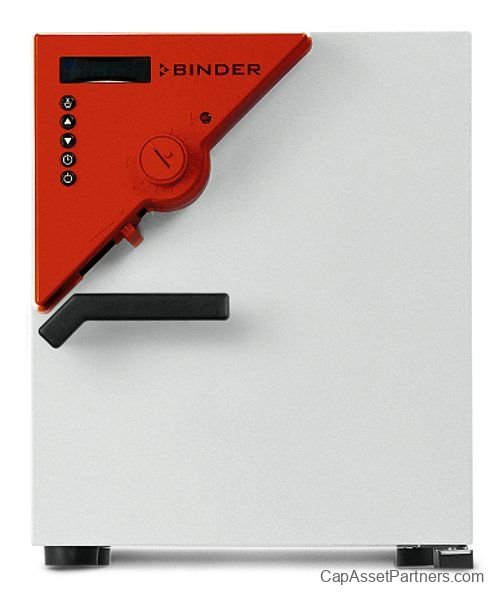

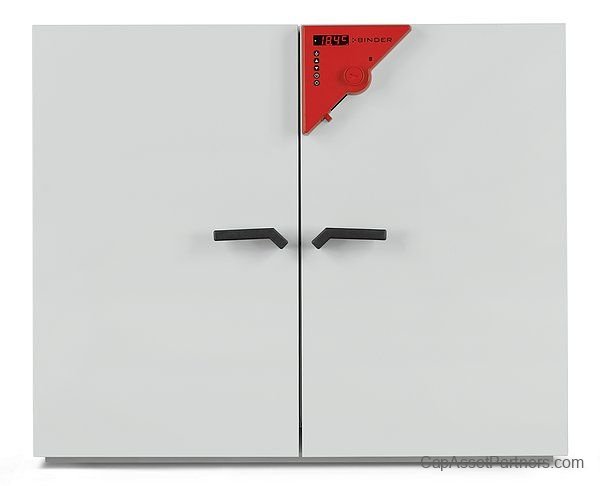

ED Series Classic Drying and Heating Chambers
The BINDER Series ED Classic Line Drying and Heating Chambers offer a reliable solution for routine drying and sterilization tasks, reaching temperatures of up to 300°C. Utilizing natural convection, these chambers ensure highly efficient thermal processes that deliver fast and uniform drying results.
Key Features
- APT.line™ Technology: Achieves uniform drying conditions with innovative preheating chamber technology.
- Consistent Testing: Ensures identical test conditions throughout the interior, unaffected by sample size or quantity.
- Cost-Efficient Operation: Outstanding thermal insulation reduces operational costs significantly.
- Controlled Convection: Gravity convection technology enhances the reliability of drying processes.
- Exhaust Air Flap: Adjustable design for precise control over air release.
- Smart Controller: User-friendly interface with timer functions for programmed drying cycles.
- Robust Racks: Comes equipped with two chrome-plated racks for optimal sample placement.
- Safety First: Class 2 independent adjustable temperature safety device (DIN 12880) with a visual alarm ensures safe operation.
Specifications
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
| 9010-0192 |
+5°C Above Ambient Temperature to 300°C |
± 0.5 at 150°C |
± 2.8 at 150°C |
| 9010-0190 |
+5°C Above Ambient Temperature to 300°C |
± 0.5 at 150°C |
± 2.8 at 150°C |
| 9010-0075 |
+5°C Above Ambient Temperature to 300°C |
± 0.5 at 150°C |
± 3.0 at 150°C |
| 9010-0168 |
+5°C Above Ambient Temperature to 300°C |
± 0.5 at 150°C |
± 3.0 at 150°C |
Additional Information
| SKU |
# of Shelves |

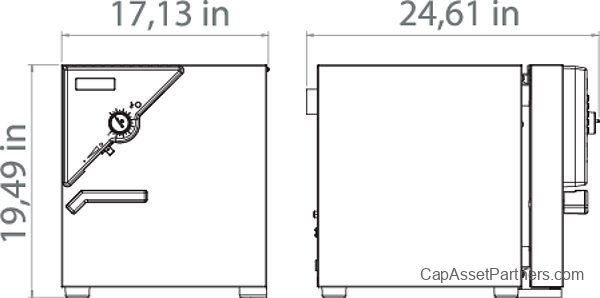

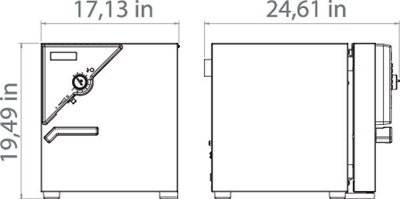

Dimensions |
Internal Dimensions |
Power Requirement |
| 9010-0192 |
2 std./4 max. |
20.49 in x 17.14 in x 19.5 in |
11.82 in x 8.75 in x 13.0 in |
120 V, 60 Hz |
| 9010-0190 |
2 std./4 max. |
20.49 in x 17.14 in x 19.5 in |
11.82 in x 8.75 in x 13.0 in |
230 V, 50/60 Hz |
| 9010-0075 |
2 std./10 max. |
30.14 in x 48.7 in x 40.4 in |
20.49 in x 39.4 in x 31.52 in |
400 V, 50/60 Hz |
| 9010-0168 |
2 std./10 max. |
30.14 in x 48.7 in x 40.4 in |
20.49 in x 39.4 in x 31.52 in |
208 V, 60 Hz |
