ENT Microscope - DRE Compass LED

ENT Microscope

• Compass LED: Elevate Your ENT Practice

Discover a perfect blend of classic aesthetics and cutting-edge technology with the Compass LED ENT Microscope. Designed for professionals in the field of otolaryngology, this advanced instrument offers all the high-performance features necessary for effective diagnosis and treatment in everyday ENT procedures.
The Compass LED boasts exceptional optical performance, featuring a 6-step magnification system and an apochromatic lens. This combination enhances resolution, contrast, and image depth, delivering crystal-clear visuals for improved patient assessments. Its long-lasting LED light source emits pure white illumination, ensuring optimal visibility during examinations.

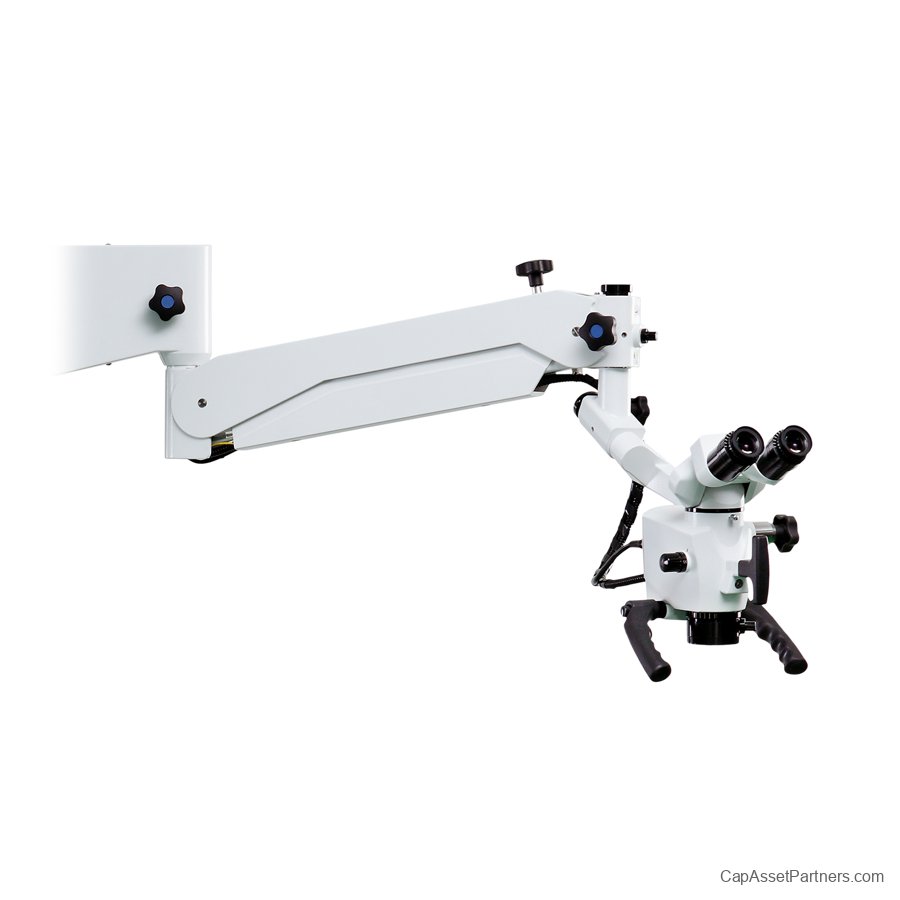

Maneuverability is key in medical settings, and the Compass LED excels with its counter-balanced pantographic arm, allowing for effortless positioning and adjustments. This practicality makes it an excellent choice and a cost-effective alternative to high-end models like the Zeiss Pico or Leica M

• Moreover, it serves as a viable replacement for aging Opmi 1 microscopes, offering significant savings in overall cost of ownership thanks to its energy-efficient LED lighting.

Key Features:

• 6-step magnification system for versatile viewing

• Luxurious LED light source with extended life and customizable color temperature

• 20W LED coaxial illuminator for enhanced brightness

• 10x wide field eyepiece (additional 12.5x option available)

• Versatile 250mm objective lens with options for 200-400mm

• Apochromatic objective lens for superior image quality

• Integrated video camera for real-time documentation

• Adjustable eyecups and rotatable maneuvering handles for comfort

• Counter-balanced pantographic arms with adjustable tension control

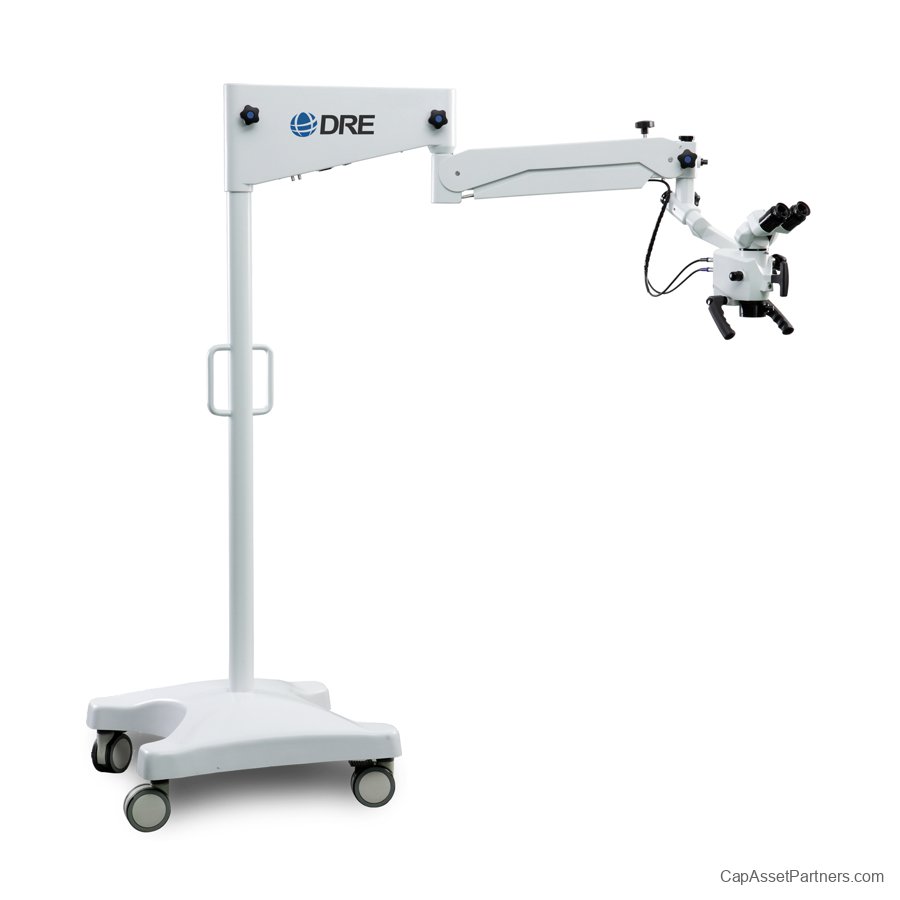

• Multiple mounting options: floor, wall, ceiling, table, or mobile

• Integrated orange and green filters for specialized lighting needs

• Upgradeable assistant scope for collaborative procedures

Take your ENT practice to the next level with the Compass LED ENT Microscope, a state-of-the-art solution designed to meet the demanding needs of modern healthcare.

ENT Microscope - DRE Compass LED Specifications

General

• Head Options:

• 45° inclined or 0-180° inclinable binocular head for dental surgery

• Straight binocular head for ENT surgery

• Eyepieces:

• 12.5x magnification with 18mm high eye-point wide-field

• Pupillary Distance:

• 50mm to 70mm (1.97" to 2.76")

• Diopter Adjustment:

• ± 7D

• Magnification:

• 6-step magnification levels:

• 0.33 = 2.8x

• 0.5 = 4.2x

• 0.8 = 6.9x

• 1.22 = 10.40x

• 2 = 17x

• 3 = 25.6x

• Arms:

• First big arm: 500mm (19.69") length, 360° rotation

• Second small arm: 600mm (23.62") length, ±300mm (±11.81") movement, ±150° rotation

• Third angled arm: 3-D movement

• Objective Lens:

• 250mm (9.84") APO-chromatic with fine focusing adjustment knob

• Object Field Diameter:

• 8.7mm to 78.3mm (0.34" to 3.07")

• Height:

• 1750mm (68.90")

• Base Size:

• 610mm × 600mm (24.02" × 23.62")

• Illuminator:

• One 20W LED

• Maximum Object Illumination:

• 50,000 Lux Min.

• Filters:

• Built-in orange filter and green filter adjustable by knob

• Power Supply:

• 220V/50Hz or 110V/60Hz

• Pupillary Distance Adjustment:

• 50mm to 70mm (1.97" to 2.76")
