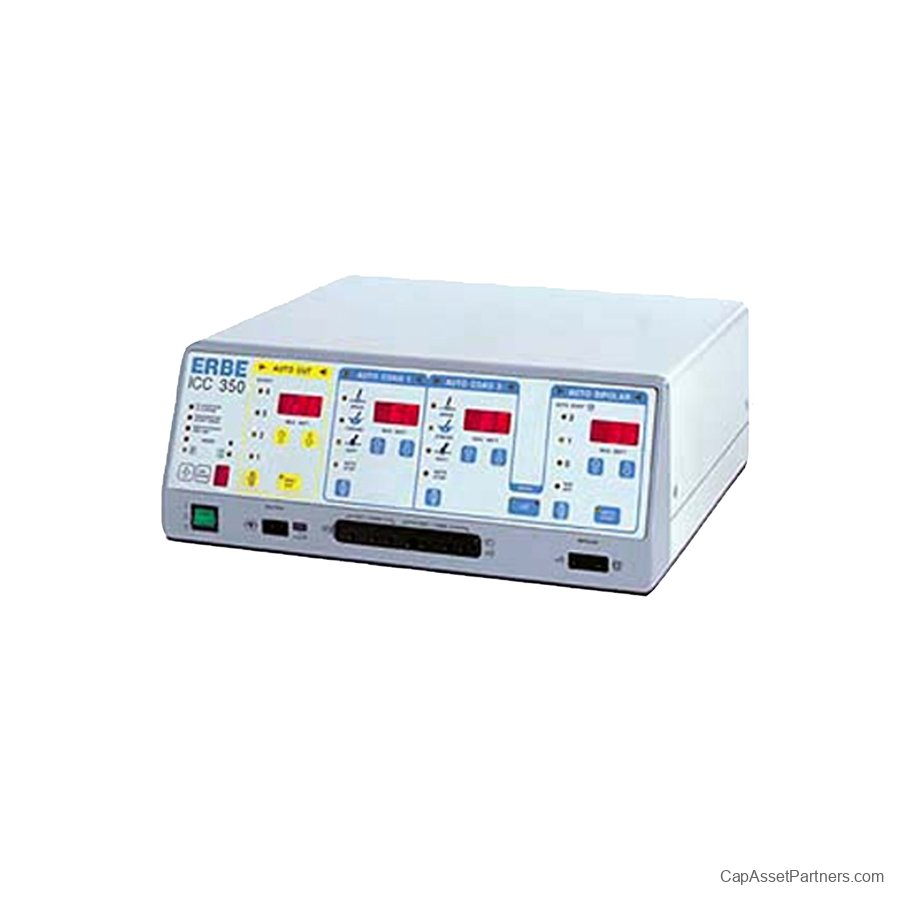

ERBE ICC 350

Product Description for ERBE ICC 350
Discover the exceptional capabilities of the ERBE ICC 350, the leading choice in high-frequency (HF) surgical units. Designed in collaboration with top surgeons across various medical specialties, this cutting-edge equipment exemplifies innovation in surgical technology, setting new standards beyond conventional procedures.
The ERBE ICC 350 delivers a unique blend of functionality and versatility tailored for diverse surgical needs. This unit has garnered international acclaim, revolutionizing approaches to surgical interventions and enabling the exploration of new techniques.

Features

Cutting:

• Cut Control: Automatic precision for flawless cuts.

• High Cut: Specialized arc regulation, ideal for underwater cuts or fatty tissues.

• Endo Cut: Optimized cutting mode specifically for endoscopic procedures.

• Mono and Bipolar Cutting: Includes Bipolar Cut for enhanced versatility.

• Power Peak System (PPS): Intelligent support ensuring effective initial incisions.

Coagulation:

• Soft Coag: Offers precisely controlled coagulation without carbonization.

• Forced Coag: Designed for rapid coagulation when speed is critical.

• Spray Coag: Efficient surface coagulation for enhanced surgical outcomes.

• Standard Hookup for Argon-Plasma Coagulation: Seamlessly integrates with the ERBE APC 300.

• Mono and Bipolar Coagulation: Includes Bipolar Coag, providing optimal flexibility.

• Twin Coag: Facilitates coagulation on two channels with customizable settings for each instrument.

• Auto Start and Auto Stop: Supports seamless coagulation during procedures.

Handling:

• User-Friendly Operation: Equipped with 11 individually configurable programs for maximum ease of use.

Safety:

• Neutral Electrode Safety System (Nessy): A distinctive feature ensuring operational safety.

• Double-Safe Cutting: Enhances protection with Cut Control and Biopolar Cut technologies.

The ERBE ICC 350 stands at the forefront of HF surgical equipment, offering unparalleled performance and advanced features that cater to the needs of modern surgical practices. Empower your surgical team with this state-of-the-art technology, designed to enhance precision, efficiency, and patient safety in the operating room.

ERBE ICC 350 Specifications (Old)

Cutting

• HF Power Adjustment: With up/down increment keys

• Form of HF Voltage: Sine-shaped

• Nominal Frequency of HF Voltage: 330 kHz

• Cutting Quality: 4 coagulation effects, selectable by key

• Constancy of Coagulation Effects: Automatically regulated

• Support for Initial Incision and Cutting: PPS, PowerPeakSystem

• Monopolar AUTO CUT: With automatic voltage control

• Monopolar HIGH CUT: With automatic arc control

• Nominal HF Output: 300 watts (500 ohms)

• Peak HF Power with PPS: 400 watts (500 ohms)

• Monopolar ENDO CUT: 200 watts (max 200 ohms)

• BIPOLAR AUTO CUT: With automatic voltage control

• Nominal HF Output: 100 watts (500 ohms)

Coagulation

• HF Power Adjustment: With up/down increment keys

Monopolar SOFT COAG

• Form of HF Current: Sine-shaped

• Nominal Frequency of HF Voltage: 300 kHz

• Nominal HF Output: 120 watts (125 ohms)

• End of Coagulation: With pedal or AUTO STOP

Monopolar FORCED COAG

• Form of HF Current: Pulse-modulated

• Nominal Frequency of HF Voltage: 1 MHz

• Nominal HF Output: 120 watts (350 ohms)

Monopolar SPRAY COAG

• Form of HF Current: Pulse-modulated

• Nominal Frequency of HF Voltage: 1 MHz

• Nominal HF Output: 120 watts (500 ohms)

Bipolar COA

• Form of HF Current: Sine-shaped

• Nominal Frequency of HF Voltage: 330 kHz

• Nominal HF Output: 120 watts (125 ohms)

• Start of Coagulation: By foot pedal or AUTO START

• End of Coagulation: By foot pedal or AUTO STOP

Safety Precautions

• Safety Class: I, corresponds to DIN IEC 601-1

• Type: CF, corresponds to DIN IEC 601-1

• Software Check of LF Leakage Current, Icritical: 0.05 mA (only with capacitive grounding)

• Software Check of HF Leakage Current, Icritical: 150 mA/300 mA

• NESSY: Neutral Electrode Safety System

• Neutral Electrode Switching: Switch-selectable capacitively grounded or with floating power

• Self-Check: Includes all safety-related subassemblies

• Dimensions (W x H x D): 16.14" x 5.98" x 14.49" (410 x 152 x 368 mm)

• Weight: 22.05 lbs (10.0 kg)

Power Connection

• Rated Power Voltage: 240V/230V/115V/110V/100V ± 10%

• Rated Power Frequency: 50/60 Hz

• Power Current: 4.0 A at 230 - 240 V / 8.0 A at 100 - 115 V

• Power Consumption in Standby Mode: 25 watts

• Power Consumption at Max. HF Power: 620 watts / 920 VA

• Current Consumption in Standby Mode: 150 mA at 230 - 240 V / 300 mA at 100 - 115 V

• Potential Equalization Terminal: Yes

• Power Fuses: 2 slow burn, 4 A at 230 - 240 V / 8 A at 100 - 115 V
