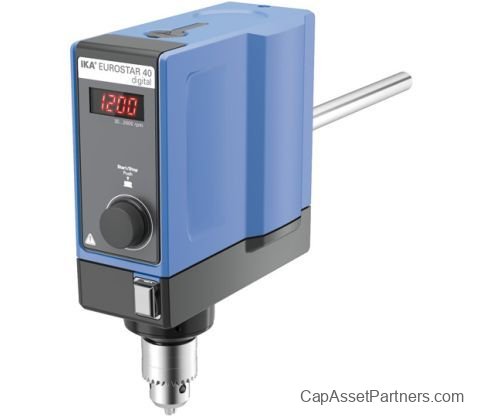

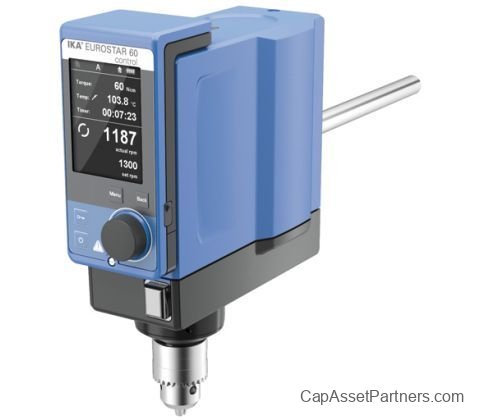

EurStar 20, 40, 60 Overhead Stirrers, Digital & Control
The EuroStar series overhead stirrers are designed for efficiency and precision in a wide range of laboratory stirring tasks. Accommodating fluid volumes of up to:
- EuroStar 20: 15 liters of H2O
- EuroStar 40: 25 liters of H2O
- EuroStar 60: 40 liters of H2O
These stirrers utilize advanced microprocessor technology to automatically adjust speed in the range of 0/30 - 2000 rpm. The built-in safety circuits ensure reliable operation, providing an automatic cut-off in cases of anti-stall or overload conditions. The system continuously compares the shaft speed to the desired speed, making real-time adjustments to maintain a consistent stirring speed despite variations in the viscosity of the sample.
Features
- • Digital speed display for easy monitoring
- • Infinitely adjustable speed settings
- • Convenient push-through agitator shafts
- • Built-in overload protection to safeguard your applications
- • Designed for short-term overload operation
- • Slim casing allows for space-efficient usage
- • Quiet operation for minimal disturbance in the lab
- • Error code display for quick diagnostics
Specifications
| Specification |
EuroStar 20 |
EuroStar 40 |
EuroStar 60 |
EuroStar 60 Control |
| Stirring quantity max. (H2O) |
15 l |
25 l |
40 l |
40 l |
| Motor rating input |
70 W |
118 W |
176 W |
168 W |
| Motor rating output |
42 W |
84 W |
126 W |
131 W |
| Motor principle |
Brushless DC |
Brushless DC |
Brushless DC |
Brushless DC |
| Speed display |
LED |
7 segment LED |
7 segment LED |
TFT |
| Speed range |
0/30 - 2000 rpm |
0/30 - 2000 rpm |
0/30 - 2000 rpm |
0/30 - 2000 rpm |
| Viscosity max. |
10,000 mPas |
30,000 mPas |
50,000 mPas |
50,000 mPas |
| Torque max. at stirring shaft |
20 Ncm |
40 Ncm |
60 Ncm |
60 Ncm |
| Dimensions (W x H x D) |
86 x 248 x 208 mm |
86 x 248 x 208 mm |
86 x 248 x 208 mm |
86 x 267 x 230 mm |
| Weight |
4.4 kg |
4.4 kg |
4.4 kg |
4.7 kg |
| Permissible ambient temperature |
5 - 40 °C |
5 - 40 °C |
5 - 40 °C |
5 - 40 °C |
| Protection class according to DIN EN 60529 |
IP 40 |
IP 40 |
IP 40 |
IP 40 |
| Voltage |
230 / 115 / 100 V |
230 / 115 / 100 V |
230 / 115 / 100 V |
230 / 115 / 100 V |
| Frequency |
50/60 Hz |
50/60 Hz |
50/60 Hz |
50/60 Hz |
