EUROSTAR 200 Overhead Stirrers

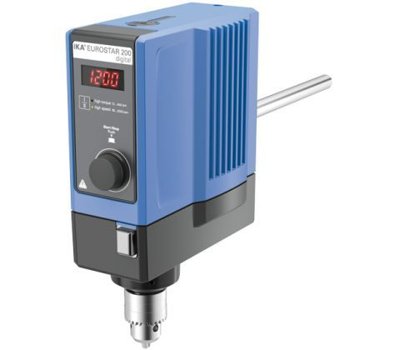

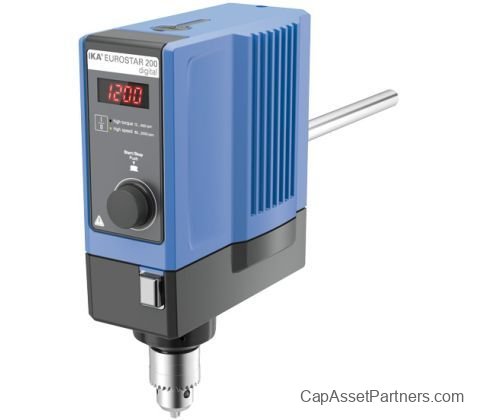

EUROSTAR 200 Digital
Description:
Discover unrivaled mixing power with the EUROSTAR 200 Digital overhead stirrer, engineered for high-viscosity applications and capable of handling volumes up to 100 liters (H2O). This state-of-the-art stirrer employs microprocessor-controlled technology, automatically adjusting speeds in a range from 0.6 to 2000 rpm across two speed ranges. Enhanced safety features include automatic shut-off during anti-stall or overload conditions, ensuring safe and consistent operation. You can trust the continuous monitoring that keeps shaft speed constant, even as sample viscosities fluctuate.
Key Features:
- Digital speed display for easy monitoring
- Infinitely adjustable speed control
- Push-through agitator shafts for versatile applications
- Integrated overload protection
- Short-term overload operation support
- Sleek, slim casing for space-efficient use
- Error code display for troubleshooting

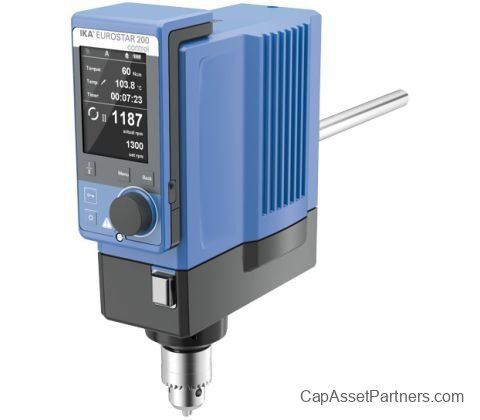

EUROSTAR 200 Control
Description:
The EUROSTAR 200 Control model takes mixing efficiency to the next level with a removable wireless controller and an intuitive digital TFT display. Like its digital counterpart, it maintains the ability to mix highly viscous samples up to 100 liters. The microprocessor technology ensures precise control within a speed range of 0.6 to 2000 rpm. Enhanced connectivity options through RS 232 and USB interfaces allow for comprehensive parameter management and documentation. An integrated torque trend display makes monitoring viscosity changes straightforward, ensuring operational accuracy regardless of sample modifications.
Key Features:
- Multilingual TFT display for user-friendly interaction
- Programmable functionalities for advanced applications
- Built-in temperature measurement for precise mixing conditions
- Interval operation capability for flexible use
- Timer function for accurate operation timing
- Adjustable safety circuits ensuring operational safety
- Lock function to prevent unauthorized adjustments
- Push-through agitator shafts for ease of use
- Overload protection for enhanced safety
- Short-term overload operation for demanding tasks
- Quiet mechanism for noise-sensitive environments
- Error code display for immediate diagnostics
Technical Specifications
Specifications |
EUROSTAR 200 Digital |
EUROSTAR 200 Control |
Stirring quantity max. (H2O) |
100 l |
100 l |
Motor rating input |
130 W |
130 W |
Motor rating output |
84 W |
84 W |
Motor principle |
Brushless DC |
Brushless DC |
Speed display |
7 segment LED |
TFT |
Speed range |
0.6 - 2000 rpm |
0.6 - 2000 rpm |
Intermittent operation |
No |
Yes |
Viscosity max. |
100000 mPas |
100000 mPas |
Output max. at stirring shaft |
84 W |
84 W |
Torque max. at stirring shaft |
200 Ncm |
200 Ncm |
Temperature display |
No |
Yes |
Dimensions (W x H x D) |
91 x 274 x 209 mm |
91 x 297 x 231 mm |
Weight |
4.6 kg |
4.9 kg |
Permissible ambient temperature |
5 - 40 °C |
5 - 40 °C |
Protection class according to DIN EN 60529 |
IP 40 |
IP 40 |
USB interface |
No |
Yes |
Voltage |
230 / 100 - 115 / 100 V |
230 / 100 - 115 / 100 V |
Frequency |
50/60 Hz |
50/60 Hz |
