EZcap™ 1x8 PCR FilmStrips™

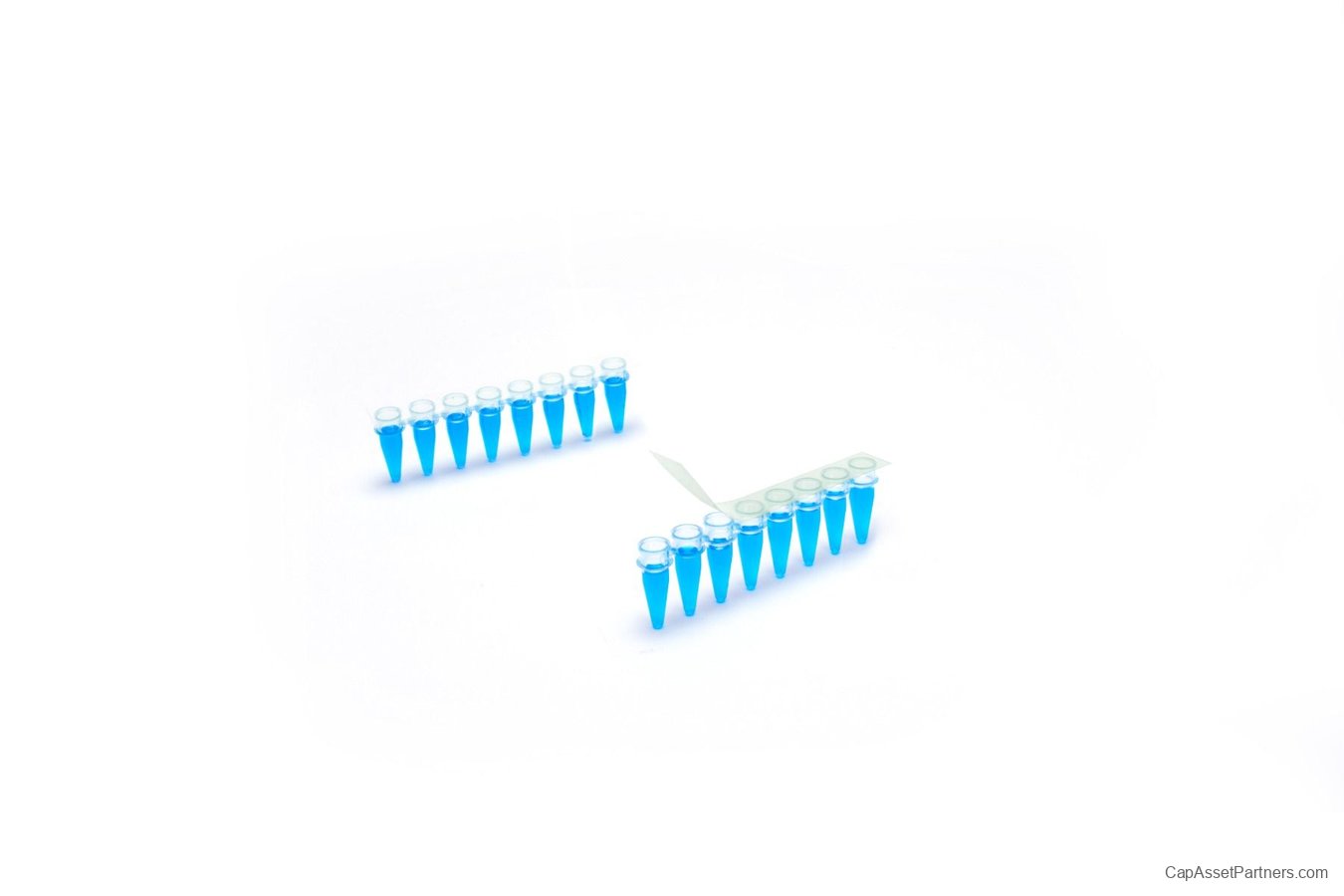

Discover the EZcap™ 1x8 PCR FilmStrips™—an economical and ergonomically designed alternative to traditional PCR strip-caps. Say goodbye to sore thumbs! These precision-cut film strips are perfect for sealing a PCR 8-tube strip or a single row of a 96-well plate, allowing for selective protection or easy access to rows without the hassle of splash back associated with strip-caps.
Key Features:
- Ideal for sealing PCR 8-tube strips or a single row of a 96-well plate
- Certified DNase- and RNase-free for reliable results
- Extra strong, thick adhesive minimizes evaporation, ensuring sample integrity
- Each sheet consists of 8 strips on a continuous liner for easy handling
- Please note: All sales are final. No refunds permitted except for manufacturer defects.
Helpful Tips for Optimal Use:
- Utilize a non-locking workstation for sample preparation to enhance ease of use (e.g., a 96-well round-boom plate).
- It is advisable to remove the end-tabs at the perforations before thermal cycling.
- A final sealing step in the thermal cycler is recommended to counteract the flexing of the 8-tube strips during handling.

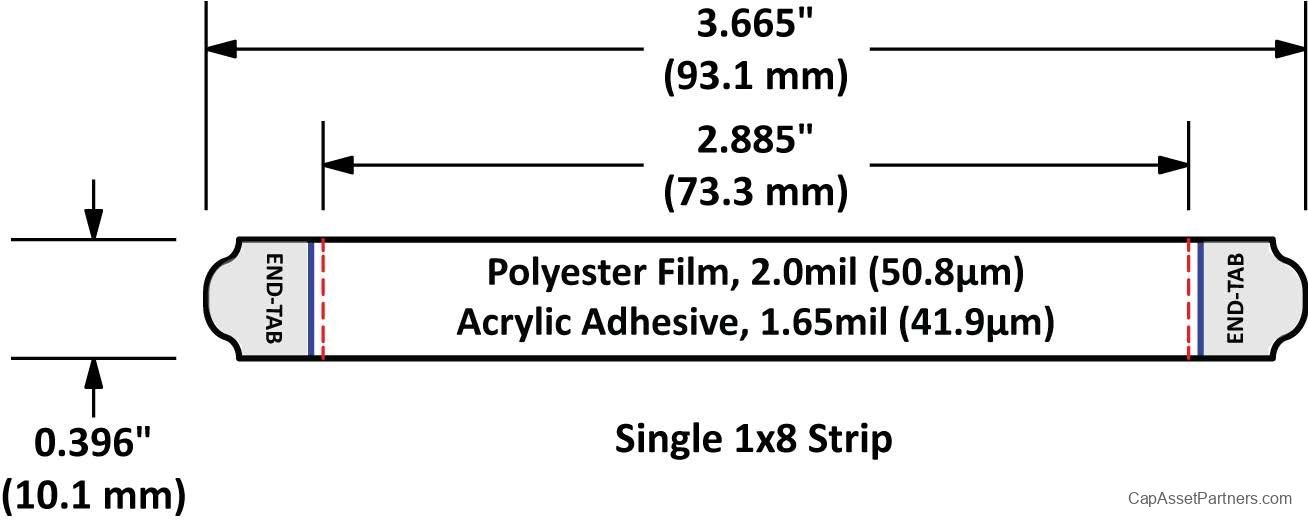

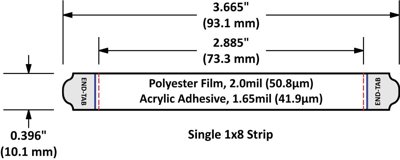

Specifications:
| SKU |
Temperature Range |
Dimensions |
Liner Thickness |
| US-CS1X8-400 |
-20°C to +120°C |
3.665" x 3.1667" ± 0.015" |
4.8 mil ± 10% |
Additional Information:
| SKU |
Tab Dimensions |
Corner Radius |
Film Material |
Film Thickness |
Adhesive Thickness |
Liner Material |
| US-CS1X8-400 |
0.35" ± 0.015" |
3/32" outside; 1/16" inside |
Polyester |
2 mil ± 10% |
1.5 mil - 1.8 mil |
White Poly-Coated Paper |
