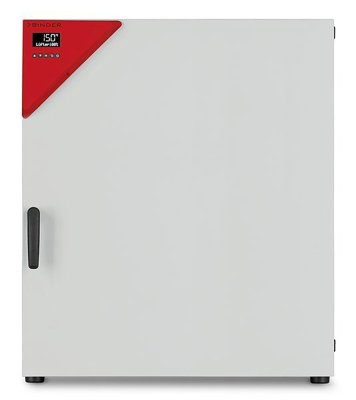

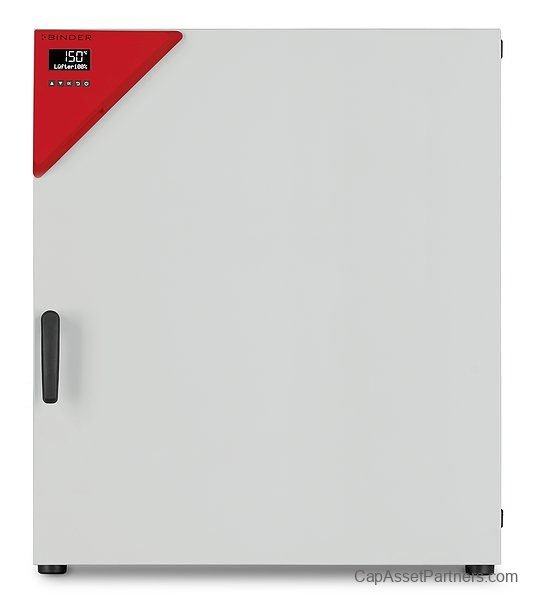

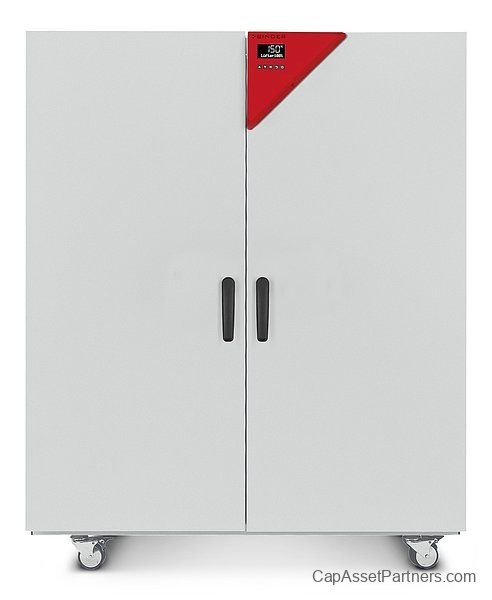

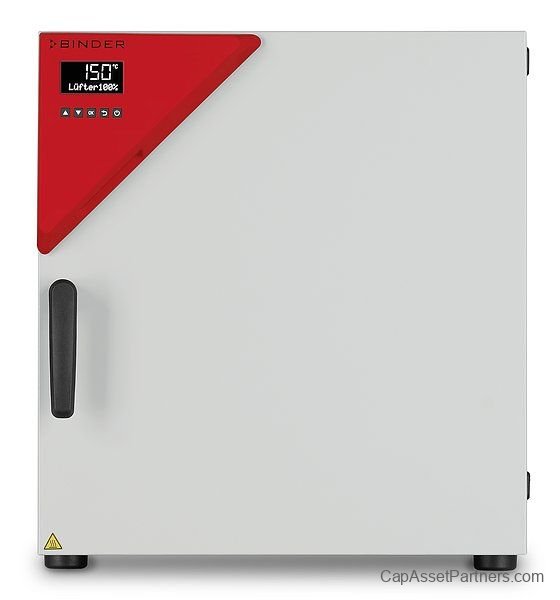

The FD Series Avantgarde Drying and Heating Chambers are engineered for efficiency and precision in environments where rapid drying and sterilization are crucial. Utilizing advanced forced convection technology, these chambers deliver superior performance with consistent temperature distribution, ensuring a reliable and time-saving solution for your medical equipment and laboratory needs.
Features:
- Temperature Range: +10°C above ambient temperature to +300°C
- High Temperature Accuracy leveraging APT.line™ technology
- Enhanced forced convection for optimal heat distribution
- Easy-to-use controller with an LCD display for comprehensive monitoring
- Electromechanical control of the exhaust air flap for precise airflow management

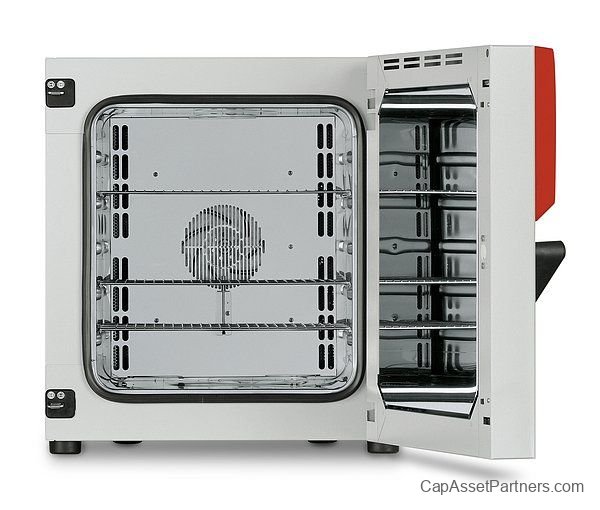

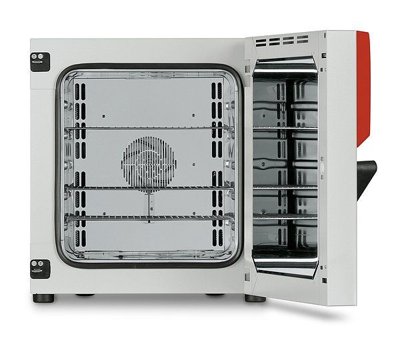

- Includes 2 chrome-plated racks for flexible loading options
- Models up to 115L are stackable to maximize space efficiency
- Safety features include a Class 2 independent temperature safety device (DIN 12880) with a visual temperature alarm
- Ergonomically designed handles for user convenience
- USB port available for data recording and analysis
Benefits:
- Unmatched energy efficiency in its class
- Superior temporal and spatial temperature accuracy to ensure reliable results
- USB connection for easy data recording and future access
- Robust temperature range reaching up to +300°C for diverse applications
Technical Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Air Change |
| 9010-0303 |
300°C +10°C |
± 0.3 at 150°C |
± 1.7 at 150°C |
80 x/h at 100°C |
| 9010-0304 |
300°C +10°C |
± 0.3 at 150°C |
± 1.7 at 150°C |
80 x/h at 100°C |
| 9010-0305 |
300°C +10°C |
± 0.3 at 150°C |
± 1.7 at 150°C |
32 x/h at 100°C |
| 9010-0306 |
300°C +10°C |
± 0.3 at 150°C |
± 1.7 at 150°C |
32 x/h at 100°C |
| 9010-0310 |
300°C +10°C |
± 0.4 at 150°C |
± 1.9 at 150°C |
9 x/h at 100°C |
| 9010-0309 |
300°C +10°C |
± 0.4 at 150°C |
± 1.9 at 150°C |
9 x/h at 100°C |
| 9010-0311 |
300°C +12°C |
± 0.6 at 150°C |
± 2.5 at 150°C |
5 x/h at 100°C |
Additional Information:
| SKU |
# of Shelves |
Depth |
Height |
Width |
Power Requirement |

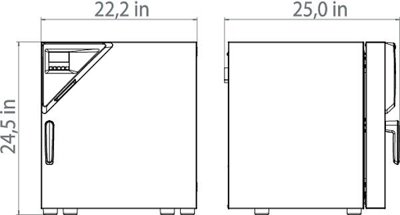

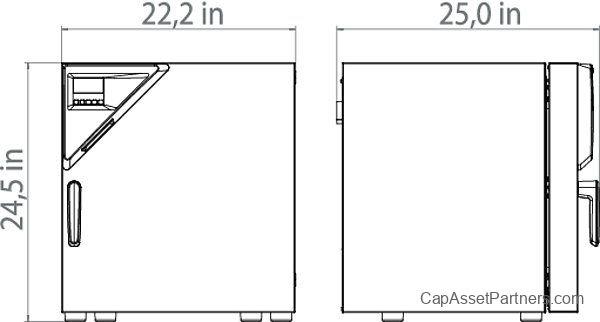

| 9010-0303 |
2 std./4 max. |
22.26 in |
24.63 in |
22.06 in |
230 V, 50/60 Hz |
| 9010-0304 |
2 std./4 max. |
22.26 in |
24.63 in |
22.06 in |
120 V, 60 Hz |

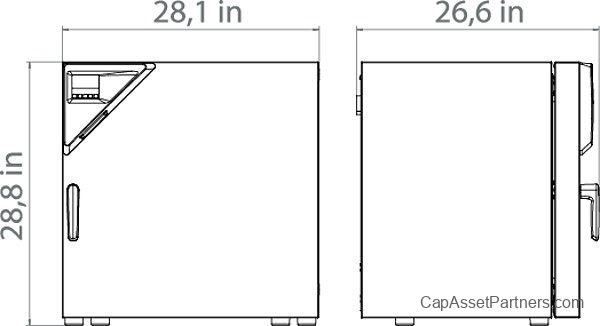

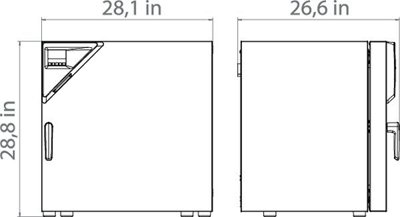

| 9010-0305 |
2 std./5 max. |
23.84 in |
28.96 in |
27.97 in |
230 V, 50/60 Hz |
| 9010-0306 |
2 std./5 max. |
23.84 in |
28.96 in |
27.97 in |
120 V, 60 Hz |

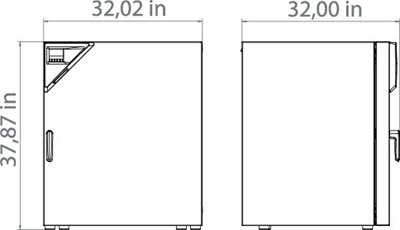

| 9010-0310 |
2 std./8 max. |
32.5 in |
37.04 in |
31.91 in |
240 V, 60 Hz |
| 9010-0309 |
2 std./8 max. |
32.5 in |
37.04 in |
31.91 in |
230 V, 50/60 Hz |

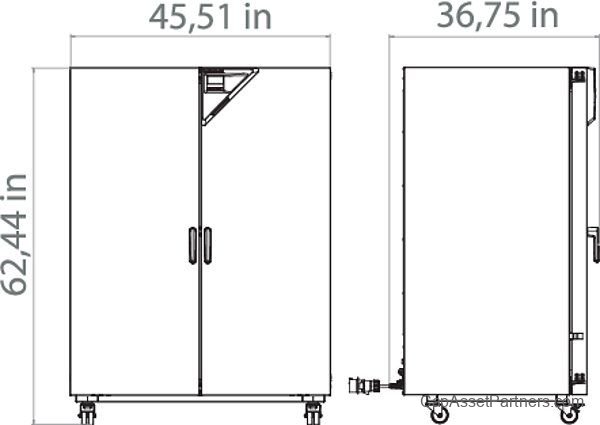

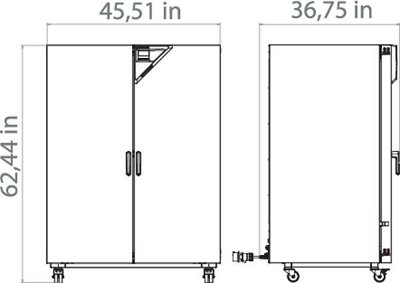

| 9010-0311 |
2 std./16 max. |
34.28 in |
62.6 in |
45.9 in |
400 V, 50/60 Hz |
