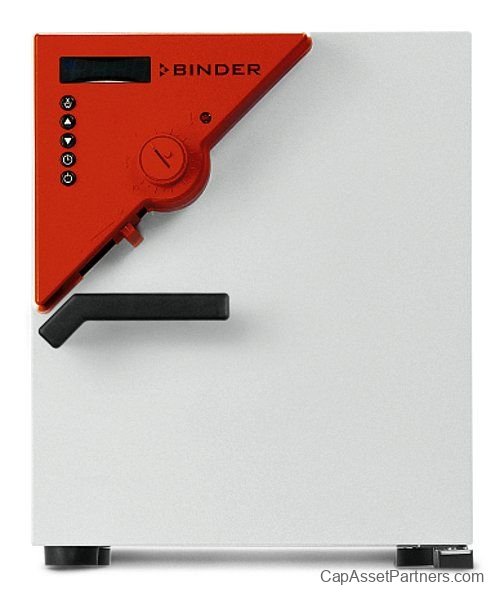

FD Series Classic Drying and Heating Chambers
The FD Series Classic Line Drying and Heating Chambers are specifically designed for applications requiring rapid drying and sterilization. With their advanced forced convection system and fully homogeneous temperature distribution, these heating ovens maximize efficiency and significantly reduce processing times.
Key Features:
- Temperature Range: Room temperature +5°C to 300°C
- APT.line™ Preheating Chamber Technology: Ensures optimal uniformity in temperature
- Forced Convection: Delivers quick and even heat distribution
- Adjustable Exhaust Air Flap: Allows control over humidity and ventilation
- Comprehensive Controller: Includes timer functions for precise operation
- Two Chrome-Plated Racks: Offers flexibility for varied sample sizes
- Safety Features: Class 2 independent adjustable temperature safety device (DIN 12880) with visual alarm
Benefits:
- Uniform Drying Conditions: Achieved through advanced APT.line™ technology
- Consistent Test Conditions: Provides identical results throughout the chamber irrespective of sample size or quantity
- Cost-Effective Operation: Outstanding thermal insulation minimizes energy consumption
Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Air Change |
| 9010-0194 |
300°C +5°C |
± 0.6 at 150°C |
± 2.5 at 150°C |
64 x/h at 100°C |
| 9010-0196 |
300°C +5°C |
± 0.6 at 150°C |
± 2.5 at 150°C |
64 x/h at 100°C |

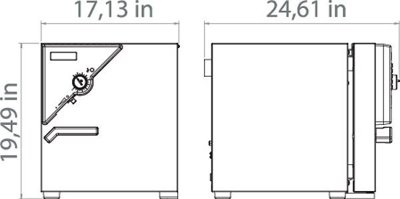

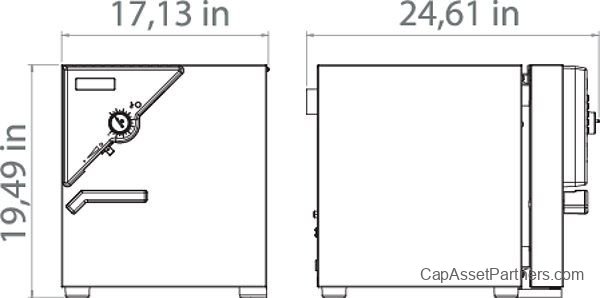

Additional Specifications:
| SKU |
# of Shelves |
Depth |
Height |
Width |
Power Requirement |
| 9010-0194 |
2 std./4 max. |
20.49 in |
19.5 in |
17.14 in |
230 V, 50/60 Hz |
| 9010-0196 |
2 std./4 max. |
20.49 in |
19.5 in |
17.14 in |
120 V, 60 Hz |
