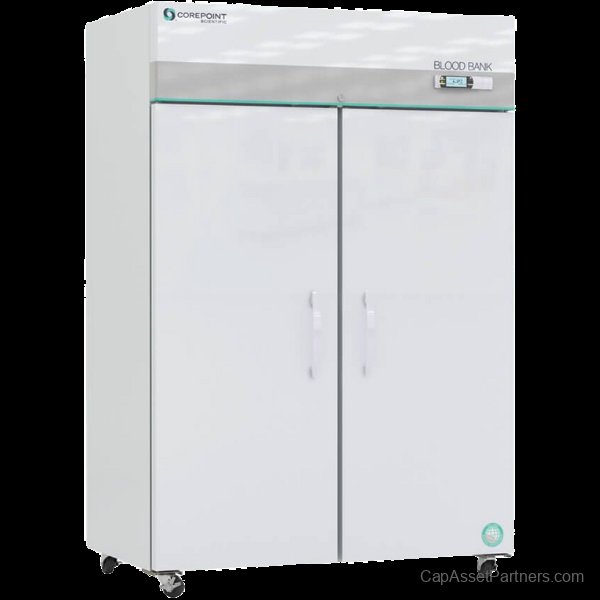

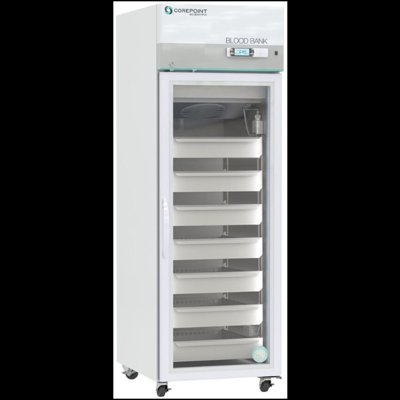

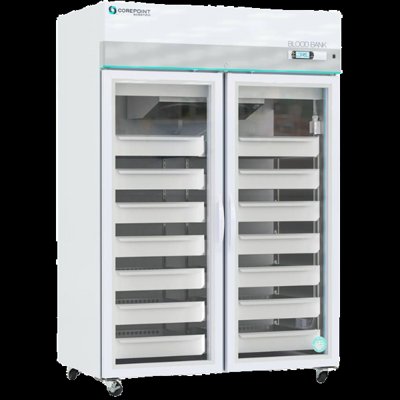

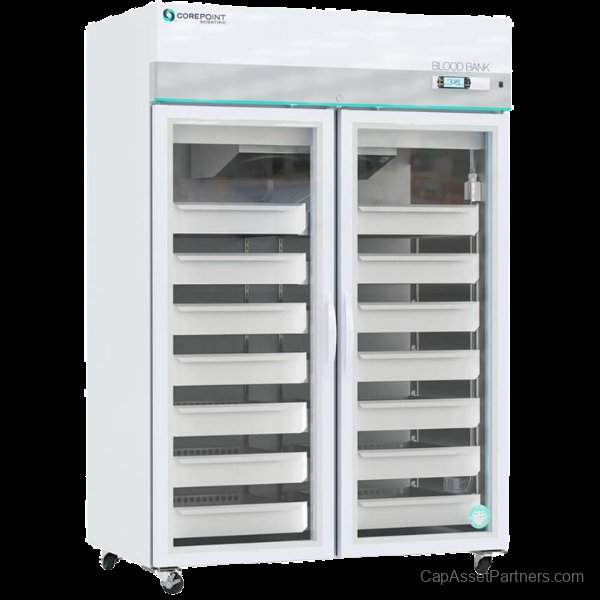

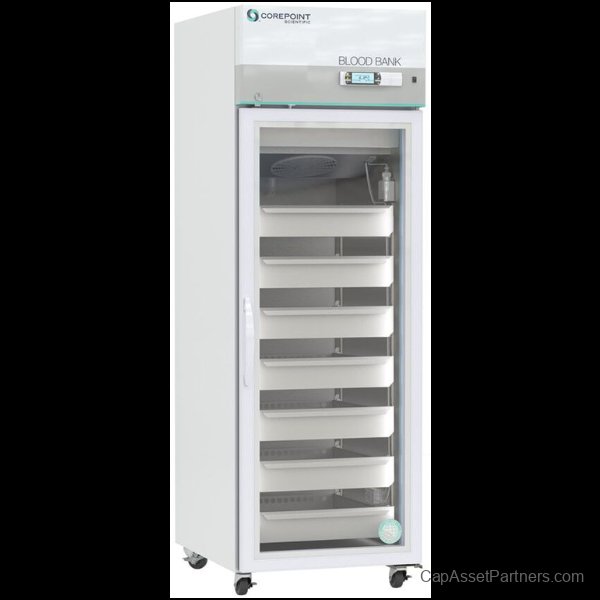

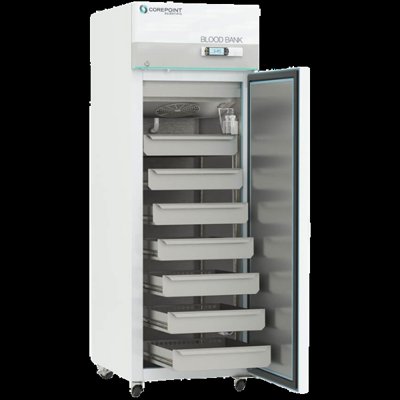

FDA Class 2 Blood Bank Refrigerators with Chart Recorder
Ensure the integrity of your blood storage with our FDA Class 2 Blood Bank Refrigerators, specifically engineered for optimal temperature control. These high-performance units are compliant with EPA SNAP refrigerants, providing a safe environment that protects blood products from waste while allowing for peak delivery efficiency.
Key Features:
- Hermetic Variable Speed Compressor: Operates at a speed range of 1300-4000 rpm for superior cooling performance.
- PID Microprocessor Temperature Controller: Offers precise control for maintaining ideal temperatures.
- LCD Display: Easy-to-read interface for monitoring temperature settings and system alerts.
- Backup Power: 24V high-capacity backup battery ensures essential functions like alarms and monitoring are preserved during power outages.
- Comprehensive Alarms: Visual and audible alerts for conditions such as high/low temperature, door ajar, and battery issues.
- Remote Alarm Contacts: Facilitates external monitoring for added security.
- Customized Probe Access Port: Includes a 3/4 inch rear wall port for easy integration of monitoring equipment.
- Stainless Steel Interiors: Durable and easy-to-clean stainless steel shelves, each holding up to 65 lbs.
- Foamed-In-Place Insulation: Constructed with EPA compliant high-density urethane foam for enhanced energy efficiency and temperature retention.
Available Accessories:
- Two anchor brackets to secure the unit.
- 7-day chart paper (pack of 50) for documentation.
- Factory-installed lower glycerol bottle kit for precise temperature control.
- Factory-installed upper solid ballast kit.

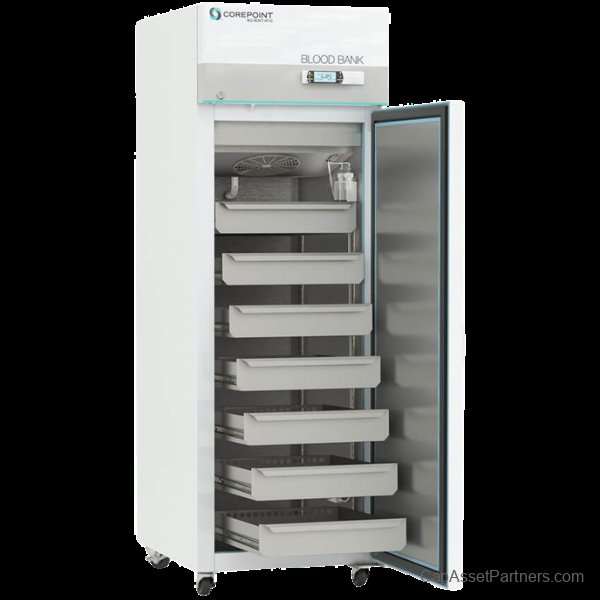

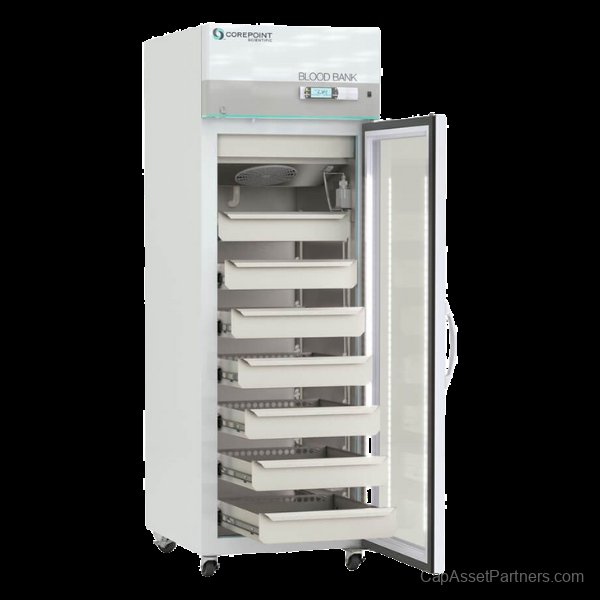

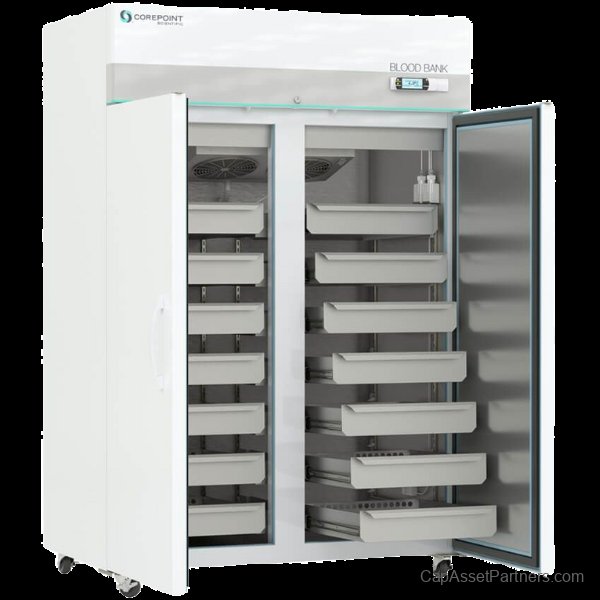

- Single and double door refrigerator drawers for flexible storage options.
Certifications and Compliance:
- FDA listed as Class II medical device.
- Compliant with 21 CFR Part 820.
- ETL and CETL listed for product safety.
- Certified to UL471 standard for hydrocarbon refrigerant safety.
Specifications:
| SKU |
Operating Temp Range |
Certification |
Compliance |
Hinge |
| NSBR231WSGCR/0 |
1°C to 10°C |
FDA Class 2 Medical Device, ETL, CETL |
21 CFR Part 820 |
Right |
| NSBR231WSWCR/0 |
1°C to 10°C |
FDA Class 2 Medical Device, ETL, CETL |
21 CFR Part 820 |
Right |
| NSBR492WSGCR/0 |
1°C to 10°C |
FDA Class 2 Medical Device, ETL, CETL |
21 CFR Part 820 |
Left and Right |
| NSBR492WSWCR/0 |
1°C to 10°C |
FDA Class 2 Medical Device, ETL, CETL |
21 CFR Part 820 |
Left and Right |
Electrical and Physical Information:
| SKU |
Dimensions |
Electrical Info |
Refrigerant |
Controller |
Plug Type |
| NSBR231WSGCR/0 |
35.75 in x 26.875 in x 81.5 in |
115V, 60Hz |
R600a |
Microprocessor |
NEMA 5-15P |
| NSBR231WSWCR/0 |
35.375 in x 26.875 in x 81.5 in |
115V, 60Hz |
R600a |
Microprocessor |
NEMA 5-15P |
| NSBR492WSGCR/0 |
35.75 in x 54.0 in x 81.5 in |
115V, 60Hz |
R600a |
Microprocessor |
NEMA 5-15P |
| NSBR492WSWCR/0 |
36.375 in x 54.0 in x 81.5 in |
115V, 60Hz |
R600a |
Microprocessor |
NEMA 5-15P |
Product Compliance:
Approved as AABB standards compliant for refrigerated blood products cold storage.
