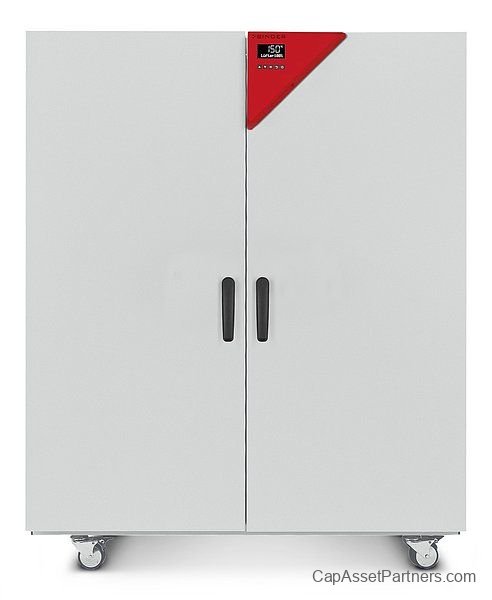

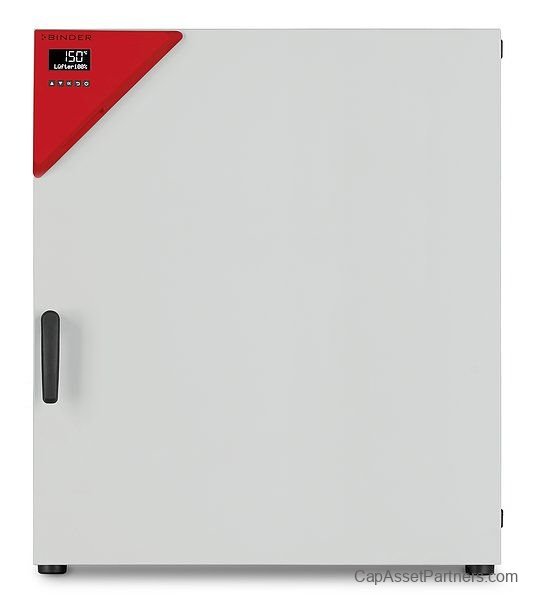

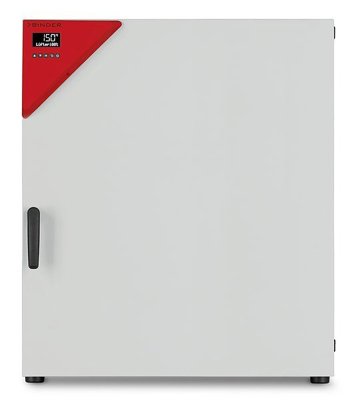

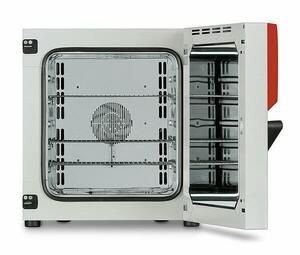

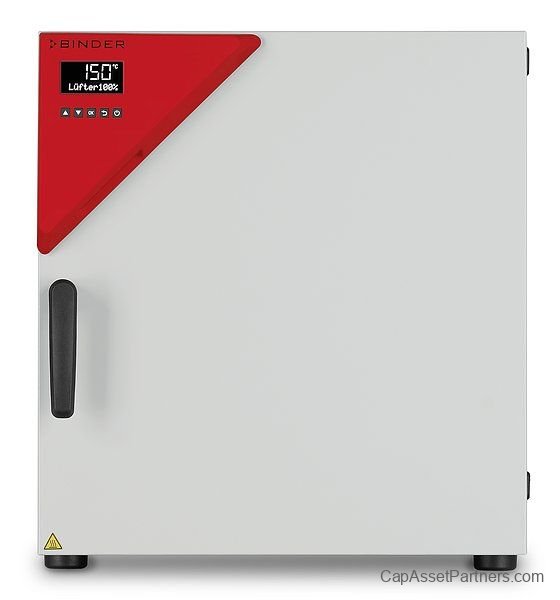

FED Series Avantgarde Drying and Heating Chambers
The FED Series Avantgarde Drying and Heating Chambers are engineered for exceptional performance in drying and heating applications. Featuring forced convection and advanced timer functions, these chambers offer unmatched adaptability and capabilities for diverse laboratory needs.
Key Features
- Up to 30% lower energy consumption compared to traditional models on the market
- Temperature range: +10°C above ambient temperature to +300°C
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm ensures safety during operation
- APT.line™ technology guarantees high temperature accuracy
- Electromechanical control of the exhaust air flap for precise ventilation management
- User-friendly controller with LCD display and enhanced timing functionalities
Benefits
- Optimal energy efficiency for cost-effective operation
- Versatile temperature range capable of reaching up to 300°C
- Excellent temporal and spatial temperature consistency enhances experimental reliability
Specifications
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
| 9010-0295 |
300°C +10°C |
± 0.3 at 150°C |
± 1.4 at 150°C |
| 9010-0296 |
300°C +10°C |
± 0.3 at 150°C |
± 1.4 at 150°C |
| 9010-0293 |
300°C +10°C |
± 0.3 at 150°C |
± 1.2 at 150°C |
| 9010-0294 |
300°C +10°C |
± 0.3 at 150°C |
± 1.2 at 150°C |
| 9010-0300 |
300°C +10°C |
± 0.4 at 150°C |
± 1.6 at 150°C |
| 9010-0299 |
300°C +10°C |
± 0.4 at 150°C |
± 1.6 at 150°C |
| 9010-0301 |
300°C +10°C |
± 0.6 at 150°C |
± 2.0 at 150°C |
| 9010-0302 |
300°C +10°C |
± 0.6 at 150°C |
± 2.0 at 150°C |

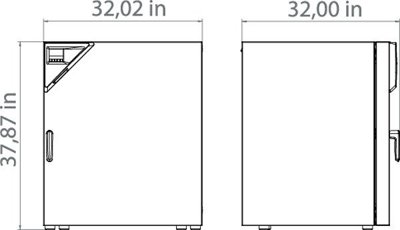

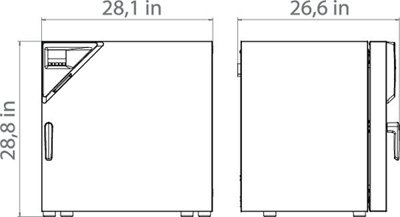

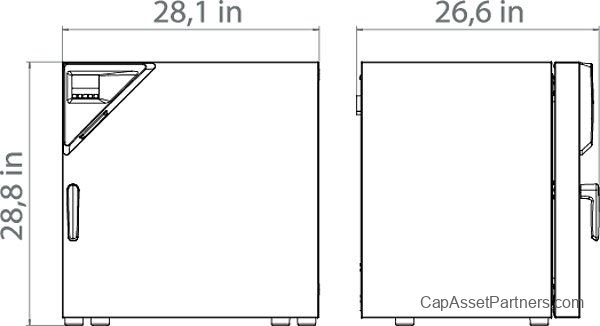

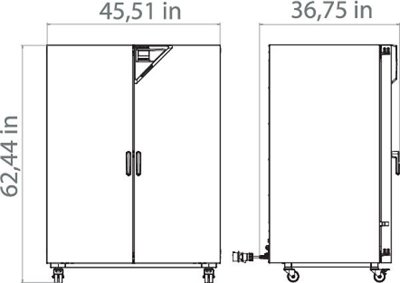

Additional Specifications
| SKU |
# of Shelves |
Depth |
Height |
Width |
Power Requirement |

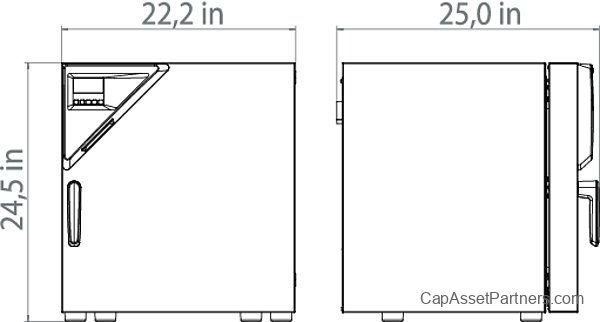

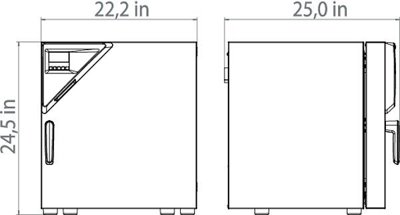

| 9010-0295 |
2 std./4 max. |
22.26 in |
24.63 in |
22.06 in |
230 V, 50/60 Hz |
| 9010-0296 |
2 std./4 max. |
22.26 in |
24.63 in |
22.06 in |
120 V, 60 Hz |
| 9010-0293 |
2 std./5 max. |
23.84 in |
27.78 in |
27.97 in |
230 V, 50/60 Hz |
| 9010-0294 |
2 std./5 max. |
23.84 in |
27.78 in |
27.97 in |
120 V, 60 Hz |

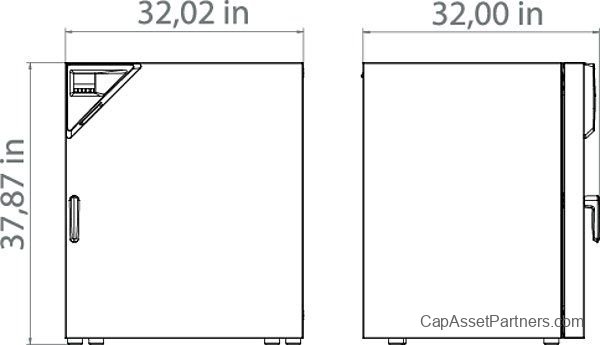

| 9010-0300 |
2 std./8 max. |
29.94 in |
37.04 in |
31.91 in |
240 V, 60 Hz |
| 9010-0299 |
2 std./8 max. |
29.94 in |
37.04 in |
31.91 in |
230 V, 50/60 Hz |

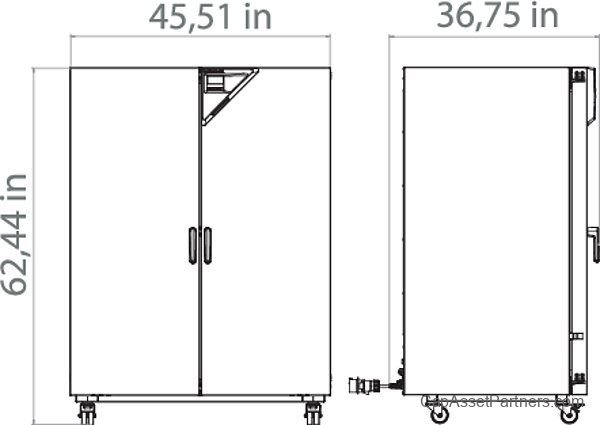

| 9010-0301 |
2 std./16 max. |
34.28 in |
62.6 in |
45.9 in |
400 V, 50/60 Hz |
| 9010-0302 |
2 std./16 max. |
34.28 in |
62.6 in |
45.9 in |
208 V, 60 Hz |
