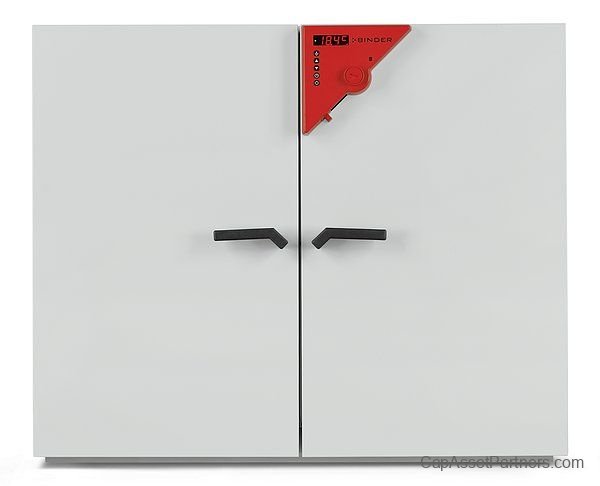

FED Series Classic Drying and Heating Chambers
Introducing the unparalleled BINDER Series FED Classic Line Drying and Heating Chambers, expertly designed with forced convection and advanced timer functions. These chambers are crafted to offer exceptional adaptability and an extensive capacity suitable for various applications in scientific and industrial settings.
Key Features:
- Temperature range: Room temperature + 5°C to 300°C for precise thermal management.
- Apt.line™ preheating chamber technology ensures uniform temperature distribution.
- Adjustable fan speed allows for customizable airflow to suit different processes.
- Adjustable exhaust air flap for optimized ventilation and moisture control.
- Intuitive controller with extended timer functions for enhanced operational flexibility.
- Includes 2 chrome-plated racks, with the option to add up to 10 for increased storage.
- Class 2 independent adjustable temperature safety device (DIN 12880) equipped with a visual alarm for added protection.
- Integrated computer interface (RS 422) for seamless data transfer and monitoring.
Benefits of Choosing the FED Series:
- Achieve consistent drying conditions across the chamber interior with APT.line™ technology, irrespective of the sample size and amount.
- Identical test conditions ensure reliable and reproducible results throughout varied experiments.
- Outstanding thermal insulation minimizes heat loss, leading to more cost-effective operation over time.
Specifications:
| SKU |
Temperature Range |
Temperature Fluctuation |
Temperature Variation |
Air Change |
| 9010-0216 |
300°C + 5°C |
± 0.7 at 150°C |
± 3.8 at 150°C |
18 x/h at 100°C |
| 9010-0217 |
300°C + 5°C |
± 0.7 at 150°C |
± 3.8 at 150°C |
18 x/h at 100°C |
Additional Information:
| SKU |
# of Shelves |

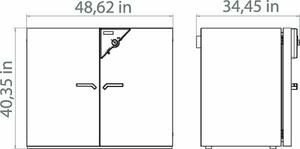

Depth |
Height |
Width |
Power Requirement |
| 9010-0216 |
2 std./10 max. |
30.14 in |
40.4 in |
48.7 in |
400 V, 50/60 Hz |
| 9010-0217 |
2 std./10 max. |
30.14 in |
40.4 in |
48.7 in |
208 V, 60 Hz |
