Fixed Needle Agilent Syringes, Cone Tipped

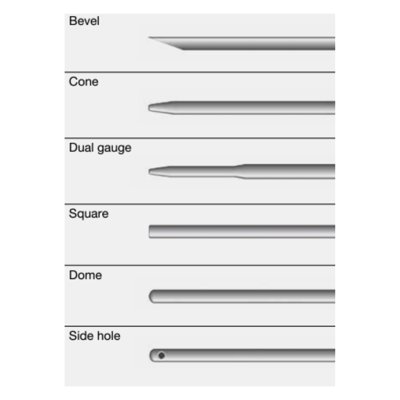

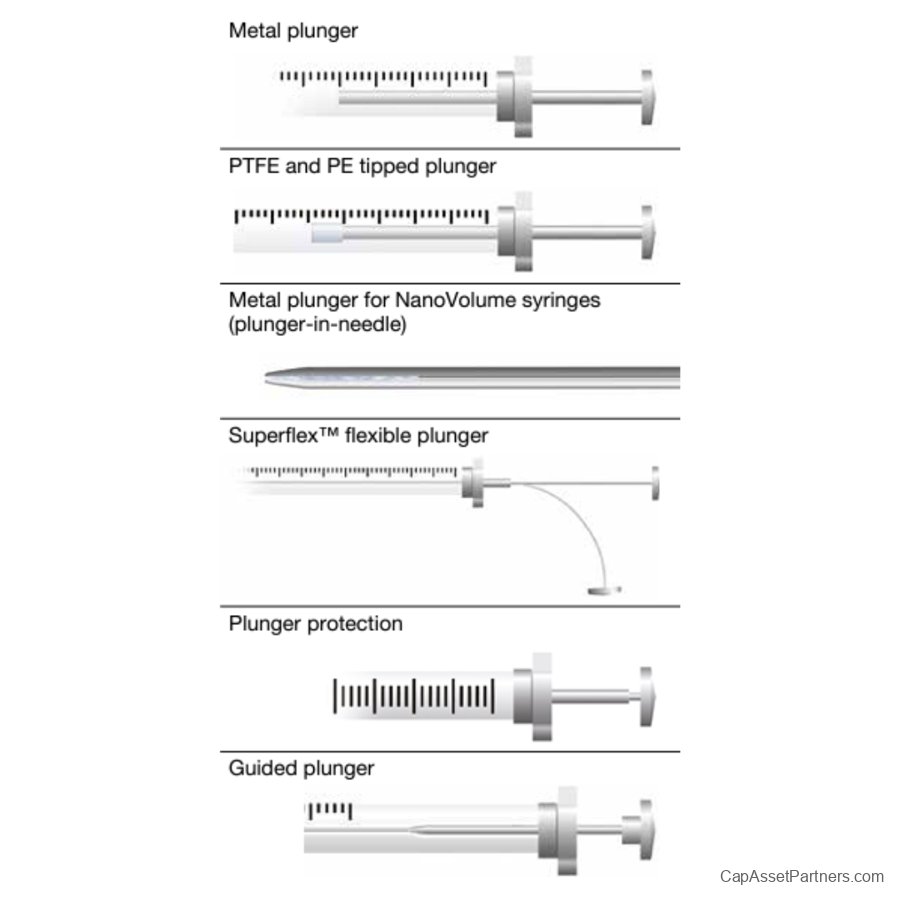

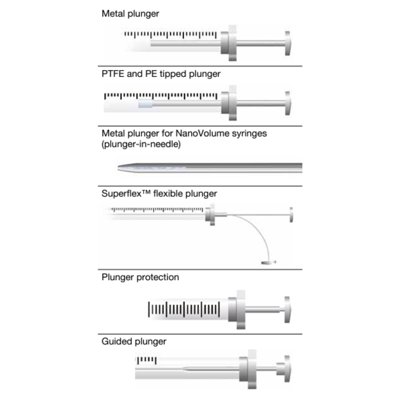

Engineered specifically for seamless compatibility with Agilent autosamplers, these Fixed Needle Agilent Syringes come with an innovative plunger design that minimizes the risk of bending and seizing during critical injection processes. The syringes are equipped with a cone-tipped needle, meticulously crafted to endure the rigorous multi-injection demands typical in advanced laboratory environments.
Compatible with Agilent Autosamplers
These syringes support a variety of Agilent autosamplers including:
Key Features
- Versatile Needle Options: Select from 0.63mm O.D. needles for routine analyses, suitable for packed column, split/splitless injection, and direct injection. Alternatively, choose 0.47mm O.D. needles for megabore capillary on-column injections.
- Customizable Sizes: Choose the needle size and volume best suited for your application needs, providing flexibility for varying laboratory tasks.
- Traceable Standards: Each syringe meets international standards for traceability, ensuring accuracy and compliance in analytical workflows.
Technical Specifications
| Accuracy and Reproducibility |
Scale Length |
Borosilicate Glass Barrel OD |
| ±1% (dispensed volume) (±2% for 0.5 μL and 1 μL syringes) |
0.5 μL to 1 μL = 27.05 mm
5 μL to 10 μL = 54.1 mm
25 μL to 100 μL = 60 mm
|
0.5 μL to 100 μL = 6.5 mm |
Product Range
| SKU |
For Use With |
Inner Diameter |
Type |
Length |
Volume |

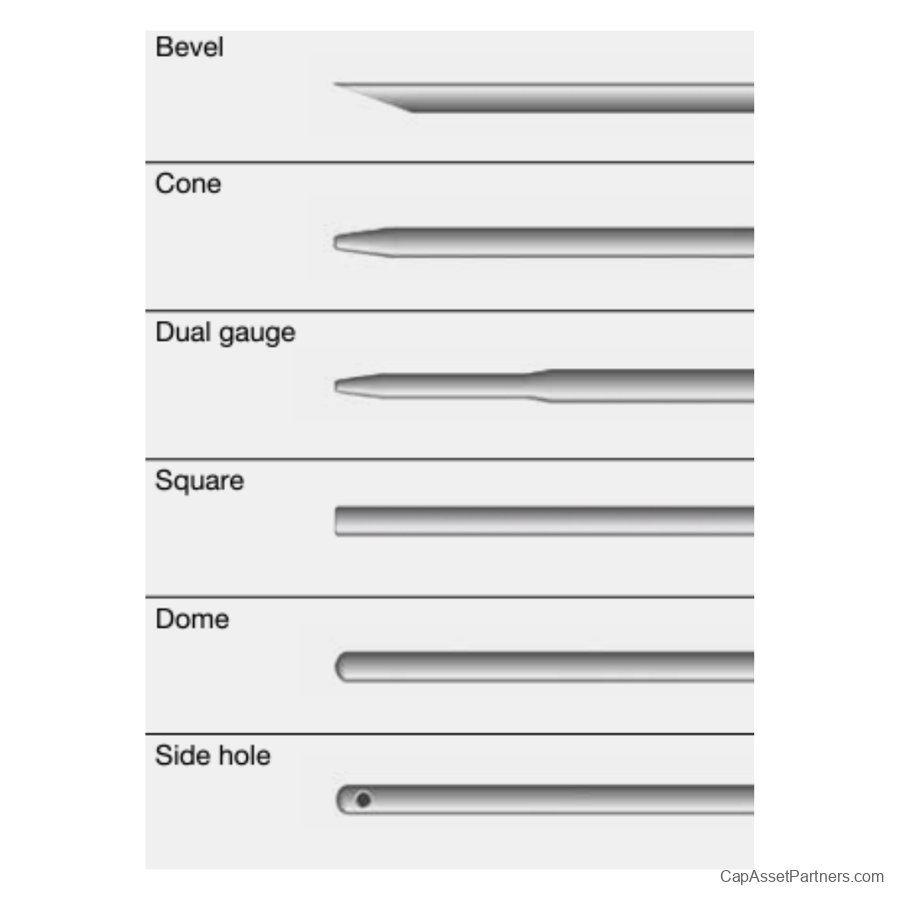

Tip Shape |
| 001804 |
Agilent |
0.11 mm |
Fixed Needle |
42 mm |

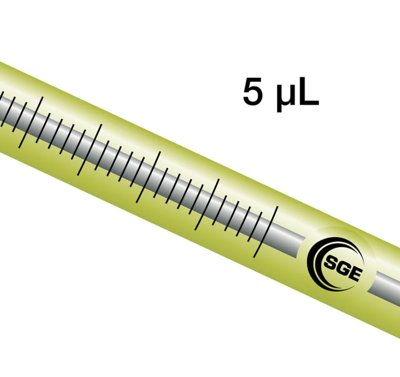

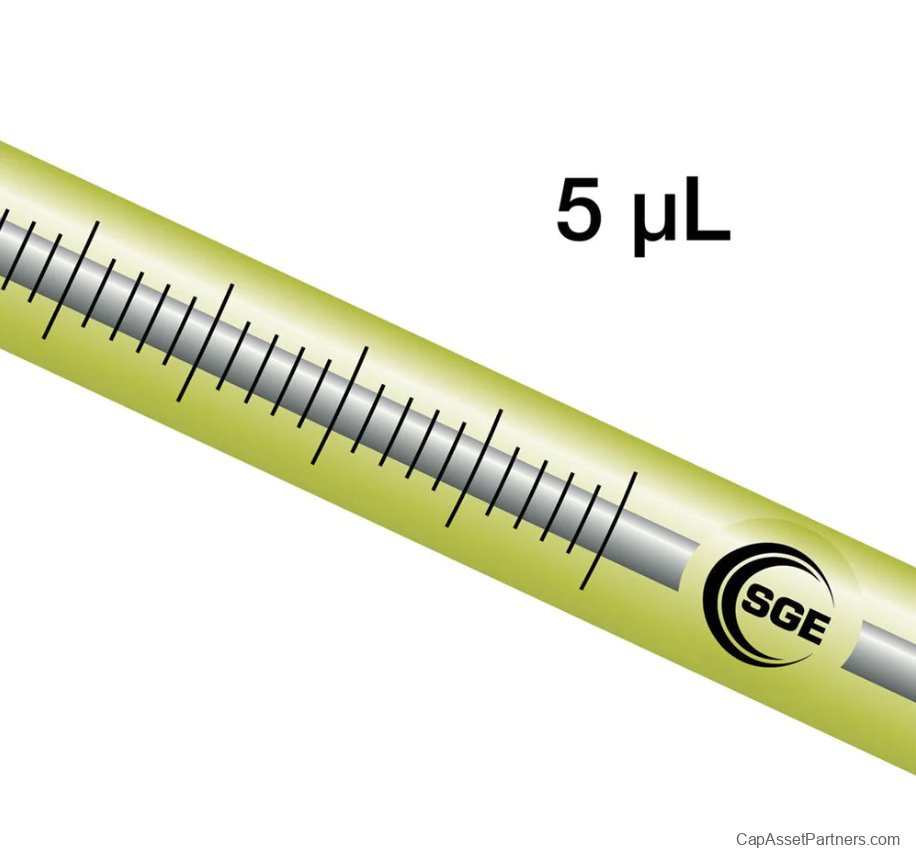

5 μL |
Cone |
| 002800 |
Agilent |
0.11 mm |
Fixed Needle |
42 mm |

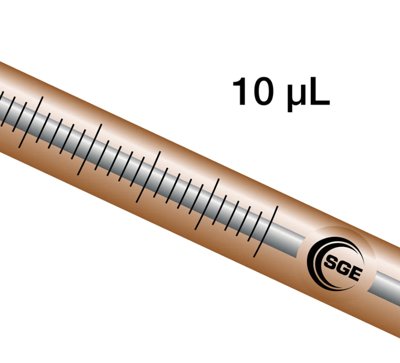

10 μL |
Cone |
| 003668 |
Agilent |
0.24 mm |
Fixed Needle, Gas Tight Plunger |
42 mm |
25 μL |
Cone |
| 005668 |
Agilent |
0.24 mm |
Fixed Needle, Gas Tight Plunger |
42 mm |
100 μL |
Cone |

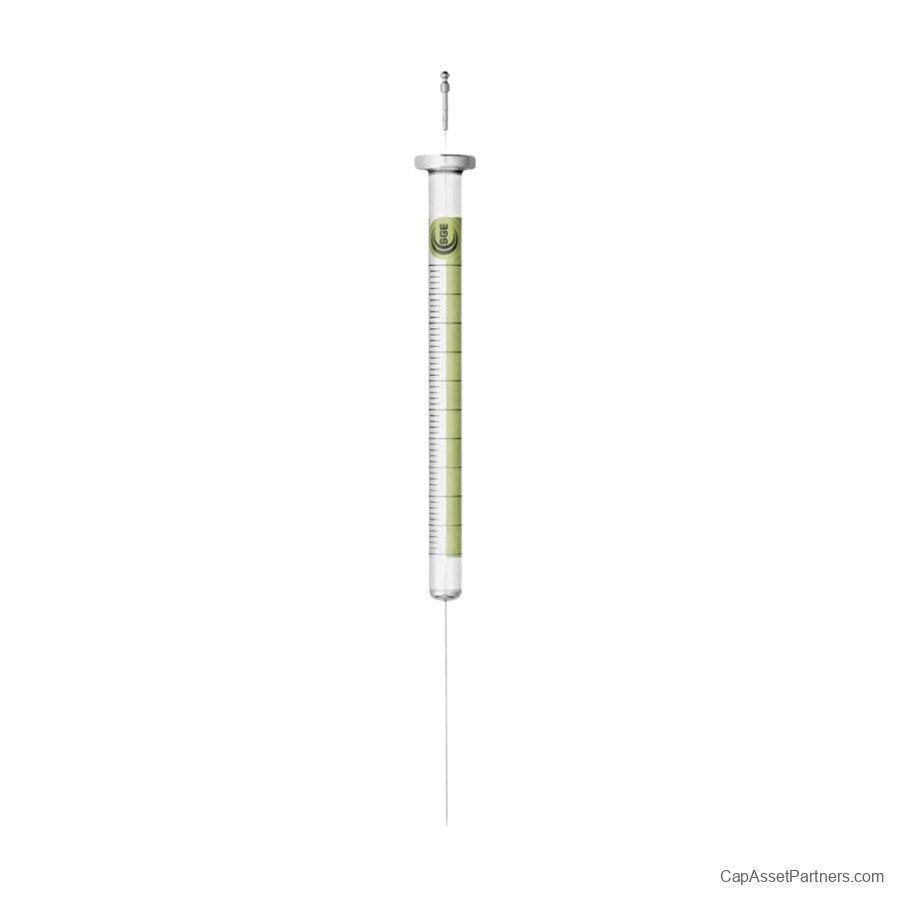

Note: Image is representative and may not reflect the specific item.
