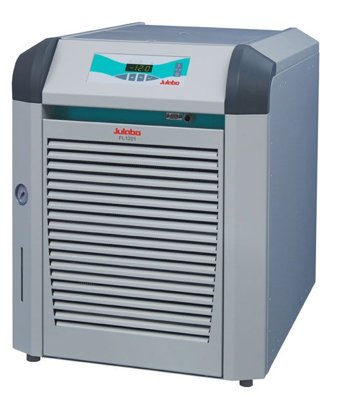

FL Series Recirculating Chillers
The FL Series Recirculating Chillers represent a cutting-edge solution for routine cooling applications across laboratory and industrial environments. Engineered for exceptional temperature stability, these chillers employ advanced PID control technology to maintain precise thermal conditions.
Key Features
- Temperature Range: Ranges from -25 to +40°C, ensuring versatile operational capability.
- Temperature Stability: Achieves a stability of +/- 0.5°C, providing reliable performance for critical applications.
- High Cooling Capacity: Models available with cooling capacities ranging from 300 W to 20 kW to meet various cooling needs.
- Flow Rate: Offers flow rates from 15 L/min up to 80 L/min for efficient thermal management.
- PID Control: Delivers precise temperature control and responsive adjustments to maintain your desired conditions.
- LED Display: Modern LED temperature display for easy monitoring of system status.
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Cooling Capacity |
Flow Pressure |
Flow Rate |
Filling Volume |
Voltage |
| 9660003.2 |
-20 to +40°C |
+/- 0.5°C |
300 W |
5.08 psi |
15 L/Min |
3 to 4.5 L |
115V/60Hz |
| 9663012.13 |
-20 to +40°C |
+/- 0.5°C |
1.2 kW |
7.2 to 43.5 psi |
40 L/Min |
12 to 17 L |
230V/60Hz |
| 9666025.13 |
-15°C to 40°C (5°F to 104°F) |
+/- 0.5°C |
2.5 kW |
7.25 to 87 psi |
60 L/Min |
24 to 30 L |
230V/60Hz |
| 9666110.16 |
-20 to +40°C |
+/- 0.5°C |
11 kW |
7.25 to 87 psi |
60 L/Min |
39 to 47 L |
230V/3PPE/60Hz |
| 9661006.2 |
-20 to +40°C |
+/- 0.5°C |
600 W |
14.5 psi |
23 L/Min |
5.5 to 8 L |
115V/60Hz |
| 9663017.13 |
-20 to +40°C |
+/- 0.5°C |
1.7 kW |
7.2 to 43.5 psi |
40 L/Min |
12 to 17 L |
230V/60Hz |
| 9666200.16 |
-25 to +40°C |
+/- 0.5°C |
20 kW |
11.6 to 87 psi |
80 L/Min |
15 to 37 L |
230V/3PPE/60Hz |
| 9663025.13 |
-20 to +40°C |
+/- 0.5°C |
2.7 kW |
7.2 to 43.5 psi |
40 L/Min |
24 to 30 L |
230V/60Hz |
| 9666070.16 |
-20 to +40°C |
+/- 0.5°C |
7 kW |
7.25 to 87 psi |
60 L/Min |
39 to 47 L |
230V/3PPE/60Hz |
| 9661012.2 |
-20 to +40°C |
+/- 0.5°C |
1.2 kW |
14.5 psi |
23 L/Min |
12 to 17 L |
115V/60Hz |
| 9666040.16 |
-20 to +40°C |
+/- 0.5°C |
4 kW |
7.25 to 87 psi |
60 L/Min |
24 to 30 L |
230V/3PPE/60Hz |
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
Barbed Fittings Diameter |
Dimensions |
| 9660003.2 |
160 lb |
24 x 32 x 40 in |
PID temperature control |
0.1 °C |
LED |
8/12 in |
9.8 |
| 9663012.13 |
250 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
3/4 in |
19.7 |
| 9666025.13 |
582 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
1 in |
23.6 |
| 9666110.16 |
686 lb |
42 x 48 x 66 in |
PID temperature control |
0.1 °C |
LED |
1 in |
30.7 |
| 9661006.2 |
160 lb |
32 x 24 x 40 in |
PID temperature control |
0.1 °C |
LED |
8/12 in |
12.6 |
| 9663017.13 |
250 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
3/4 in |
19.7 |
| 9666200.16 |
1000 lb |
42 x 54 x 74 in |
PID temperature control |
0.1 °C |
LED |
1 in |
37.4 |
| 9663025.13 |
582 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
3/4 in |
23.6 |
| 9666070.16 |
686 lb |
42 x 48 x 66 in |
PID temperature control |
0.1 °C |
LED |
1 in |
30.7 |
| 9661012.2 |
250 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
8/12 in |
19.7 |
| 9666040.16 |
582 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
1 in |
23.6 |
