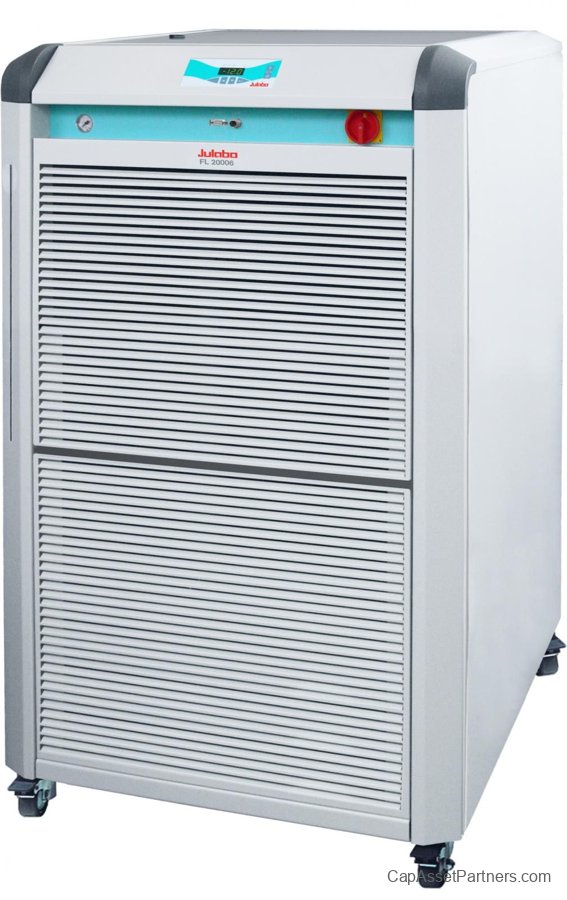

FLW Series Recirculating Chillers
Introducing the FLW Series Recirculating Chillers, engineered for reliable and precise temperature control in laboratory and industrial settings. These state-of-the-art chillers ensure exceptional temperature stability with a PID control accuracy of ±0.5°C, making them the ideal choice for routine cooling applications.
Key Features
- Ergonomic design facilitating ease of operation
- Splash-proof keypad with an integrated mains switch
- Large, bright LED display for easy temperature monitoring
- Microprocessor-controlled PID temperature management for reliable performance
- Visible filling level indicator
- Powerful immersion pumps designed for continuous operation
- Supports a permissible return line temperature of up to +80°C
- User-friendly top-filling access with a hinged protective lid
- Low liquid level protection featuring both optical and audible alarm signals
- Integrated stainless steel bath tanks for durability
- Removable venting grid allowing hassle-free condenser cleaning
- Front drain for easy maintenance
- No side vents facilitate space-saving installation with units placed side-by-side
- RS232 interface for seamless PC connectivity
- IP class rating of 21 according to IEC 60529
- Alarm output with potential-free change-over contact (max. 30 VA)
- Pressure indicator for effective monitoring
- By-pass valve to adjust pump pressure as needed
- Efficient water cooling system
Specifications
| SKU |
Temperature Range |
Temperature Stability |
Cooling Capacity |
Flow Pressure |
Flow Rate |
Filling Volume |
Voltage |
| 9673017.13 |
-20 to +40°C |
±0.5°C |
1.7 kW |
7.2 to 43.5 psi |
40 L/Min |
12 to 17 L |
230V/60Hz |
| 9676200.16 |
-25 to +40°C |
±0.5°C |
20 kW |
11.6 to 87 psi |
80 L/Min |
15 to 37 L |
230V/3PPE/60Hz |
| 9673025.13 |
-20 to +40°C |
±0.5°C |
2.7 kW |
7.2 to 43.5 psi |
40 L/Min |
24 to 30 L |
230V/60Hz |
| 9676070.16 |
-20 to +40°C |
±0.5°C |
7.4 kW |
7.25 to 87 psi |
60 L/Min |
39 to 47 L |
230V/3PPE/60Hz |
| 9676025.13 |
-15°C to 40°C (5°F to 104°F) |
±0.5°C |
2.5 kW |
7.25 to 87 psi |
60 L/Min |
24 to 30 L |
230V/60Hz |
| 9676110.16 |
-20 to +40°C |
±0.5°C |
11.5 kW |
7.25 to 87 psi |
60 L/Min |
39 to 47 L |
230V/3PPE/60Hz |
| 9676040.16 |
-15°C to 40°C (5°F to 104°F) |
±0.5°C |
4 kW |
7.25 to 87 psi |
60 L/Min |
24 to 30 L |
230V/3PPE/60Hz |
| 9671017.2 |
-20 to +40°C |
±0.5°C |
1.7 kW |
14.5 psi |
23 L/Min |
12 to 17 L |
115V/60Hz |
Additional Information
| SKU |
Shipping Weight |
Shipping Dimensions |
Controller |
Resolution |
Temperature Display |
Barbed Fittings Diameter |
Dimensions |
| 9673017.13 |
250 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
3/4 in |
19.7 |
| 9676200.16 |
1000 lb |
42 x 54 x 74 in |
PID temperature control |
0.1 °C |
LED |
1 in |
37.4 |
| 9673025.13 |
582 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
3/4 in |
23.6 |
| 9676070.16 |
686 lb |
42 x 48 x 66 in |
PID temperature control |
0.1 °C |
LED |
1 in |
30.7 |
| 9676025.13 |
582 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
1 in |
23.6 |
| 9676110.16 |
686 lb |
42 x 48 x 66 in |
PID temperature control |
0.1 °C |
LED |
1 in |
30.7 |
| 9676040.16 |
582 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
1 in |
23.6 |
| 9671017.2 |
250 lb |
42 x 42 x 64 in |
PID temperature control |
0.1 °C |
LED |
8/12 in |
19.7 |
