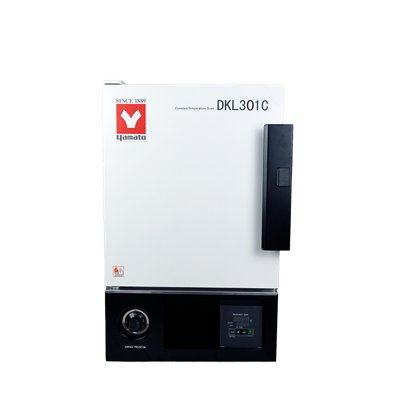

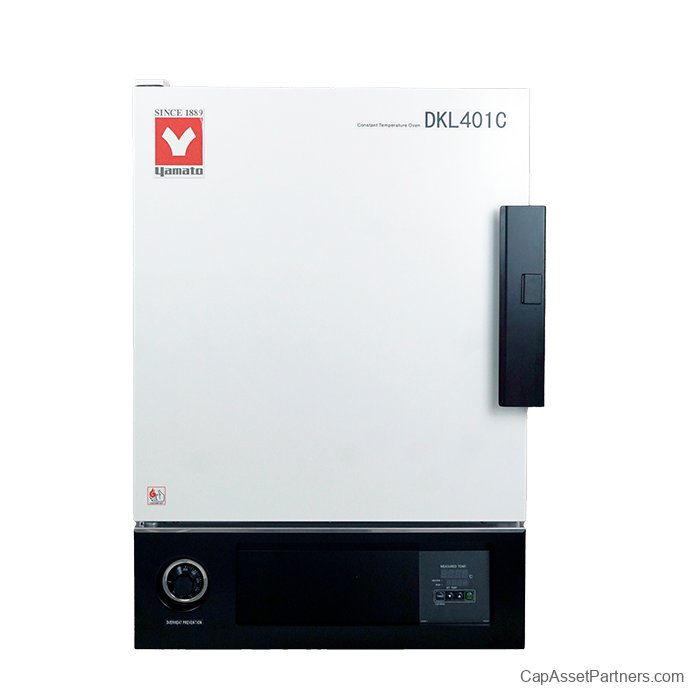

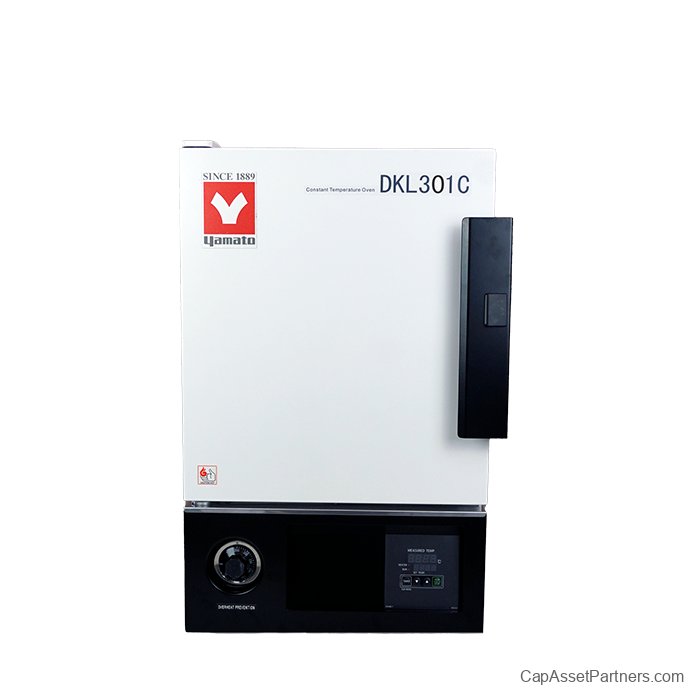

Forced Convection Ovens
Discover the precision and efficiency of our Forced Convection Ovens, designed to meet the stringent demands of medical and laboratory applications. With their state-of-the-art forced air circulation technology, these ovens ensure uniform temperature distribution for optimal sample processing.
Key Features:
- Efficient forced air circulation for even heat distribution
- Fixed temperature operations for consistent results
- Quick auto-stop functionality to enhance safety
- Multiple control modes: Auto stop and start for user flexibility
- High-performance Sirocco fan with a 10W fan motor
- Digital settings managed via dedicated operation keys or intuitive up/down controls
- Calibration offset function for accurate adjustments
- Robust stainless steel shelf plates designed for longevity
Safety Features:
- Comprehensive self-diagnostic functions, including:
- Temperature sensor error detection
- Automatic overheat prevention
- Measured temperature error notifications
- MCB with overcurrent protection for enhanced safety
- Integrated hydraulic standalone overheat prevention device
Specifications:
| SKU |
Ambient Temperature Range |
Temperature Accuracy |
Interior Material |
Exterior Material |
Heaters |
Power Requirement |
| DKL-301C |
10°C to 260°C |
± 1°C |
Stainless Steel |
Steel Plate SPCC |
SUS304 Pipe Heater |
115V |
| DKL-311C |
10°C to 260°C |
± 1°C |
Stainless Steel |
Steel Plate SPCC |
SUS304 Pipe Heater |
220V |
| DKL-401C |
10°C to 260°C |
± 1°C |
Stainless Steel |
Steel Plate SPCC |
SUS304 Pipe Heater |
115V |
| DKL-411C |
10°C to 260°C |
± 1°C |
Stainless Steel |
Steel Plate SPCC |
SUS304 Pipe Heater |
220V |
| DKL-601C |
10°C to 260°C |
± 1°C |
Stainless Steel |
Steel Plate SPCC |
SUS304 Pipe Heater |
115V |
| DKL-611C |
10°C to 260°C |
± 1°C |
Stainless Steel |
Steel Plate SPCC |
SUS304 Pipe Heater |
220V |
Additional Information:
| SKU |
Internal Dimensions |
External Dimensions |
Controller |
Sensor Technology |
| DKL-301C |
310 mm x 310 mm x 310 mm |
410 mm x 450 mm x 680 mm |
PID Control by Microprocessor |
K-Thermocouple |
| DKL-311C |
310 mm x 310 mm x 310 mm |
410 mm x 450 mm x 680 mm |
PID Control by Microprocessor |
K-Thermocouple |
| DKL-401C |
450 mm x 450 mm x 450 mm |
560 mm x 600 mm x 820 mm |
PID Control by Microprocessor |
K-Thermocouple |
| DKL-411C |
450 mm x 450 mm x 450 mm |
560 mm x 600 mm x 820 mm |
PID Control by Microprocessor |
K-Thermocouple |
| DKL-601C |
610 mm x 500 mm x 500 mm |
710 mm x 650 mm x 880 mm |
PID Control by Microprocessor |
K-Thermocouple |
| DKL-611C |
610 mm x 500 mm x 500 mm |
710 mm x 650 mm x 880 mm |
PID Control by Microprocessor |
K-Thermocouple |
