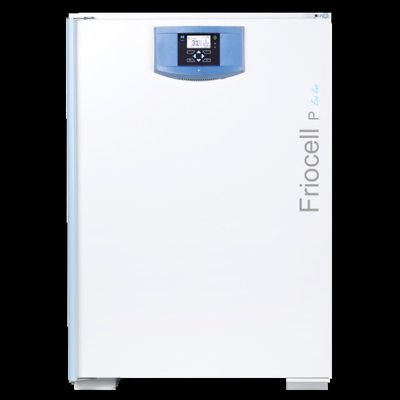

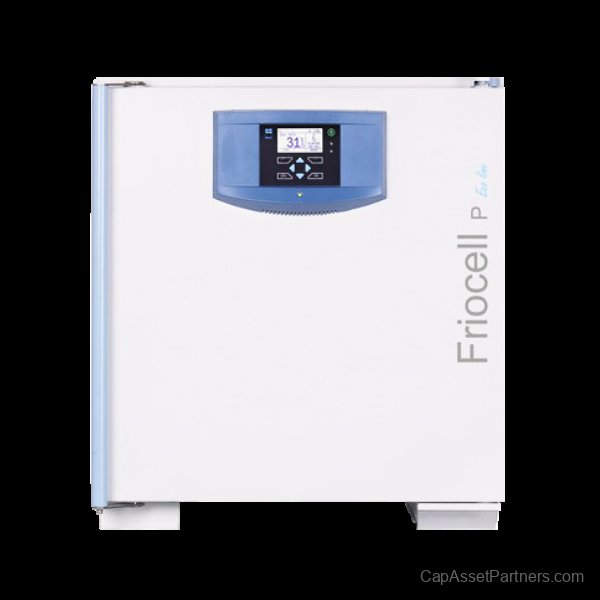

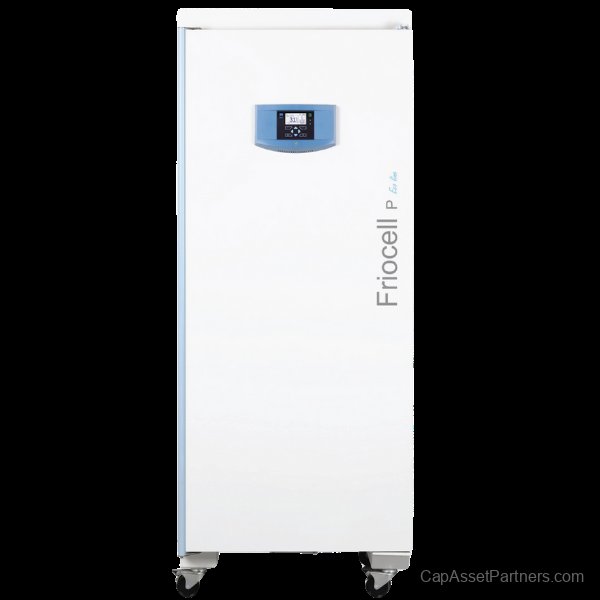

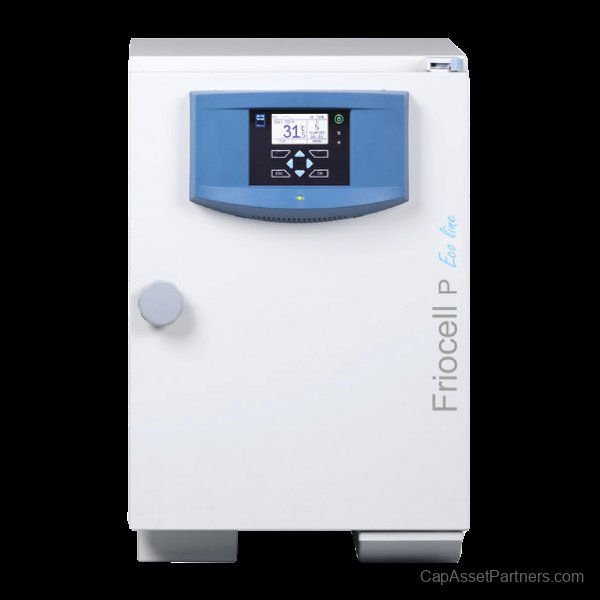

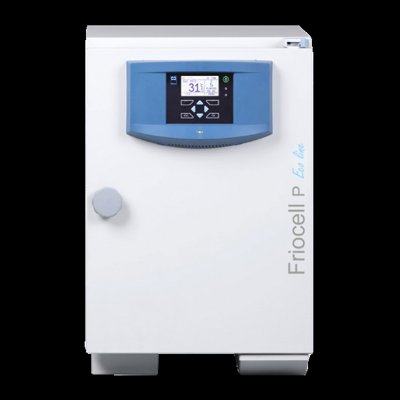

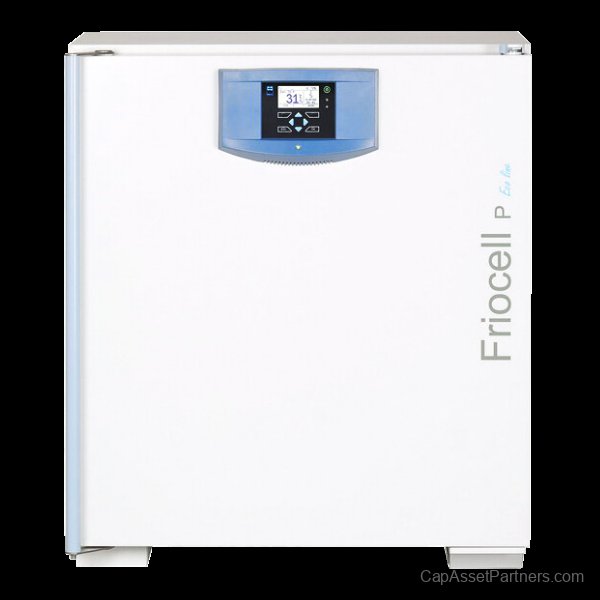

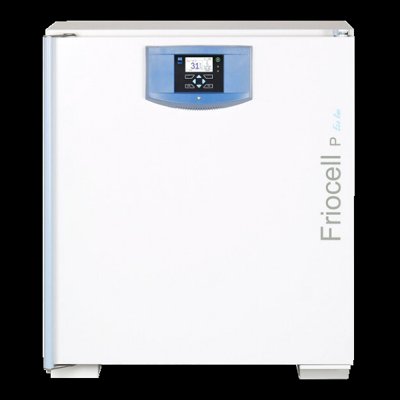

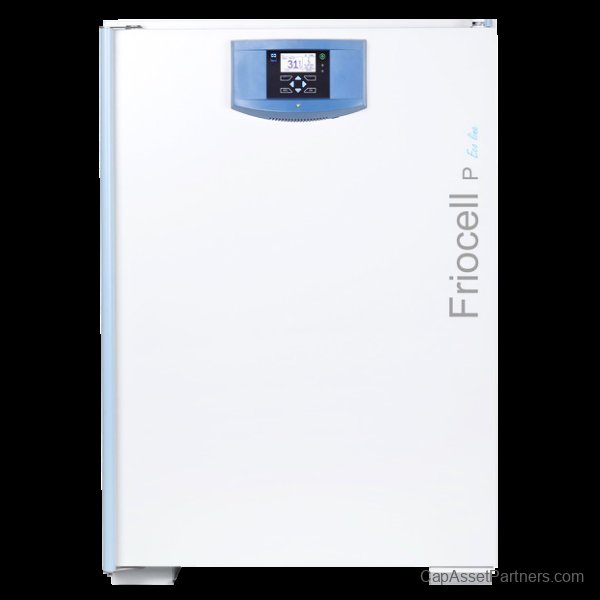

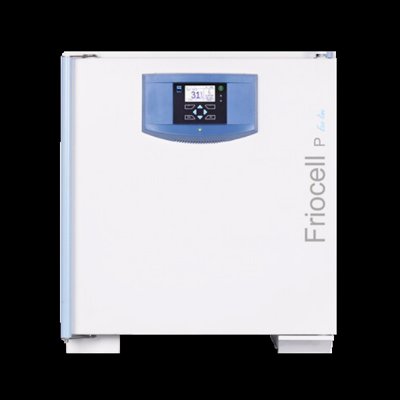

Friocell® ECO Peltier Cooled Incubators
The Friocell® ECO Peltier Cooled Incubators are designed to provide an energy-efficient and environmentally responsible solution for a variety of laboratory applications. Ideal for long-term sample storage, cell cultivation, stability testing, and incubation, these incubators operate within a temperature range from 21°C below ambient to 45°C above ambient, ensuring optimal conditions for your sensitive materials.
Key Features
- ECO standard microprocessor controller for precise temperature control
- Fuzzy logic technology coupled with a 3-inch digital LCD display for user-friendly operation
- Real-time programming and cycling with 9 customizable programs and up to 99 cycles
- Equipped with a digital safety thermostat for added security
- Delayed heating start and stop function enhances usability
- Audible and digital alarm systems for monitoring conditions
- Keypad lock feature ensures security against unauthorized adjustments
- Integrated USB and RS 232 ports for data transfer and monitoring
- Pharmaceutical grade AISI 304 stainless steel chamber for durability and easy cleaning
- Removable inner chamber and molded brackets for convenient sample management
- Double-wall chamber design with five layers of insulation for uniform temperature distribution
- Rounded interior corners to prevent contamination
- Patented 4-point closing system that seals the door effectively and allows hands-free operation

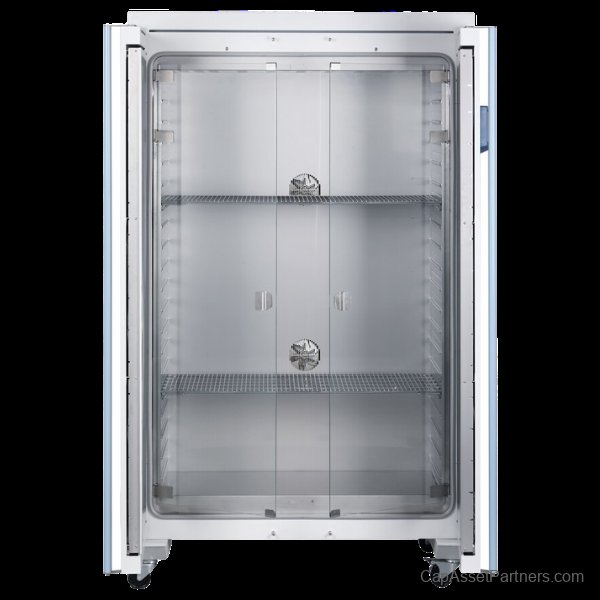

- Inner glass door(s) for continuous monitoring without disrupting interior conditions
- Stainless steel port with a 50 mm diameter for additional access
Certifications
*For volumes 404 and 707, the operational temperature range is guaranteed from 14°C below ambient to 30°C above ambient.
Specifications
| SKU |
Operating Temperature Range |
Model # |
Hinge |
Door Type |
Heat-Up Time |
Interior Material |
Door Recovery Time |
| MC 000194 |
0°C to 70°C |
Friocell ECO P 22 |
Right |
Solid Swing Door |
< 32 min to 37°C |
AISI 304 Stainless Steel |
< 2 min to 10°C
< 3 min to 50°C |
| MC 000195 |
0°C to 70°C |
Friocell ECO P 55 |
Right |
Solid Swing Door |
< 35 min to 37°C |
AISI 304 Stainless Steel |
< 4 min to 10°C
< 4 min to 50°C |
| MC 000196 |
0°C to 70°C |
Friocell ECO P 111 |
Right |
Solid Swing Door |
< 50 min to 37°C |
AISI 304 Stainless Steel |
< 3 min to 10°C
< 4 min to 50°C |
| MC 000197 |
0°C to 70°C |
Friocell ECO P 222 |
Right |
Solid Swing Door |
< 60 min to 37°C |
AISI 304 Stainless Steel |
< 4 min to 10°C
< 3 min to 50°C |
| MC 000199 |
0°C to 70°C |

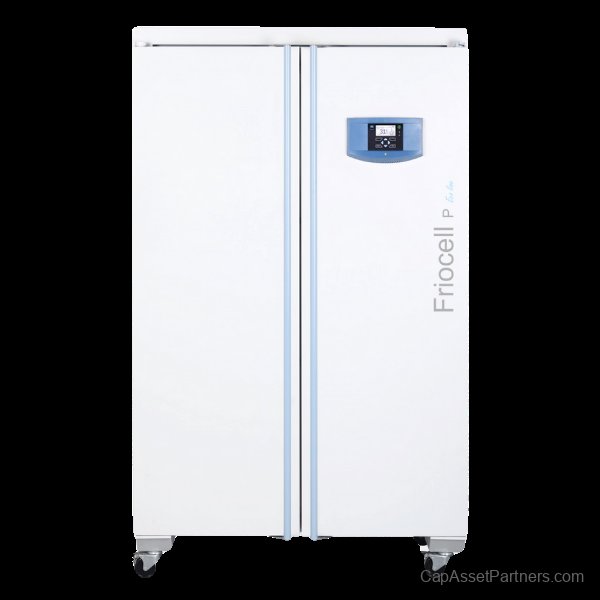

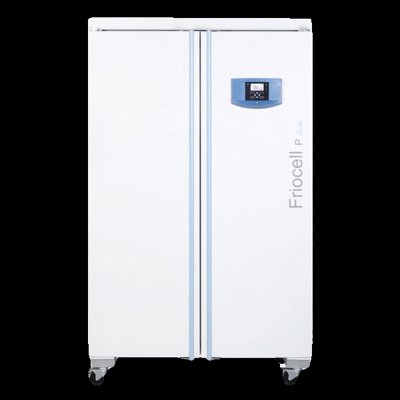

Friocell ECO P 707 |
Left and Right |
Dual Solid Swing Door |
< 55 min to 37°C |
AISI 304 Stainless Steel |
< 6 min to 10°C
< 4.2 min to 50°C |
| MC 000198 |
0°C to 70°C |
Friocell ECO P 404 |
Right |
Solid Swing Door |
< 50 min to 37°C |
AISI 304 Stainless Steel |
< 6 min to 10°C
< 3 min to 50°C |
Additional Information
| SKU |
Max. # of Shelves |
Shelf Capacity |
Electrical Information |
Dimensions |
Internal Dimensions |
Display |
Shelf Type |
| MC 000194 |
4 Shelves |
22 lbs |
115V, 50/60Hz, 1.3A |
24.0 in x 16.0 in x 24.0 in |
12.0 in x 9.4 in x 11.6 in |
Digital |
Adjustable |
| MC 000195 |
4 Shelves |
44.1 lbs |
115V, 50/60Hz, 1.7A |
26.8 in x 24.4 in x 26.8 in |
15.7 in x 14.6 in x 13.8 in |
Digital |
Adjustable |
| MC 000196 |
7 Shelves |
44.1 lbs |
115V, 50/60Hz, 3.1A |
29.9 in x 26.8 in x 33.9 in |
21.3 in x 14.6 in x 20.9 in |
Digital |
Adjustable |
| MC 000197 |
10 Shelves |
60.1 lbs |
115V, 50/60Hz, 3.1A |
32.7 in x 29.9 in x 42.9 in |
21.3 in x 20.5 in x 29.9 in |
Digital |
Adjustable |
| MC 000199 |
19 Shelves |
110.2 lbs |
115V, 50/60Hz, 5.1A |
45.7 in x 31.1 in x 75.2 in |
37.0 in x 20.5 in x 55.7 in |
Digital |
Adjustable |
| MC 000198 |
19 Shelves |
60.1 lbs |
115V, 50/60Hz, 3.7A |
31.1 in x 29.9 in x 75.2 in |
21.3 in x 20.5 in x 55.7 in |
Digital |
Adjustable |
