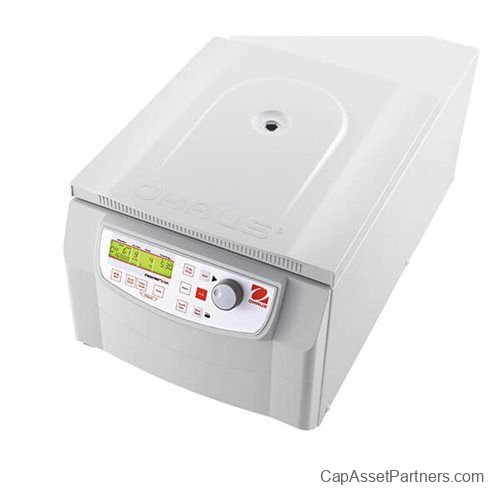

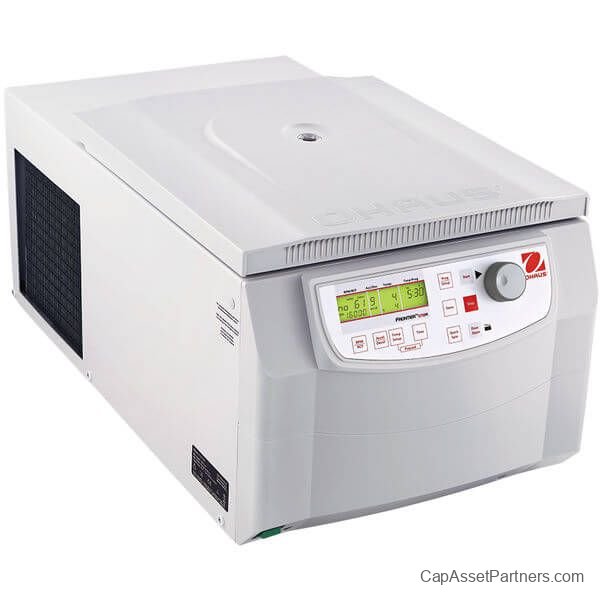

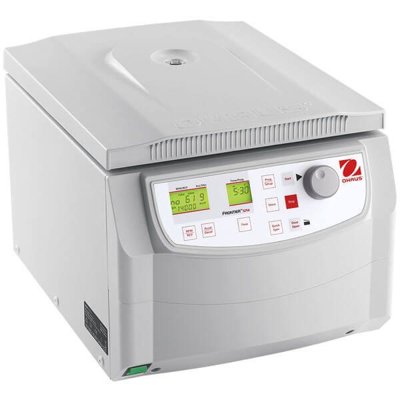

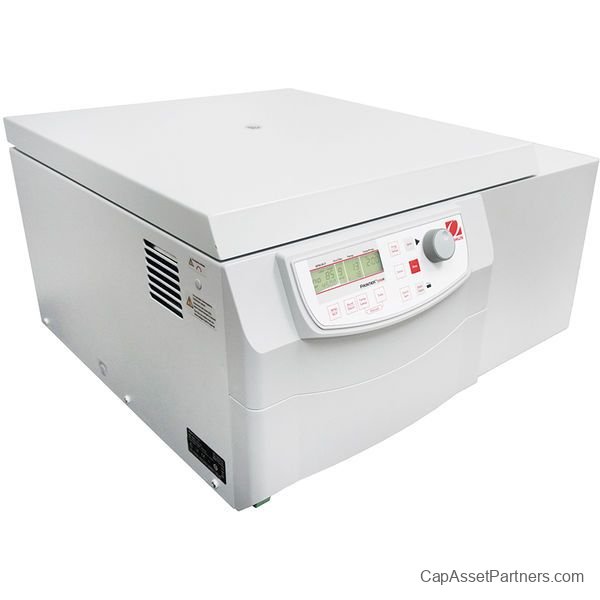

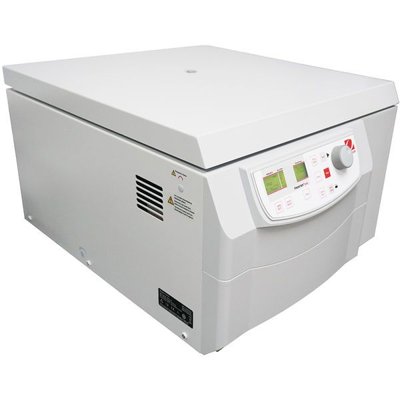

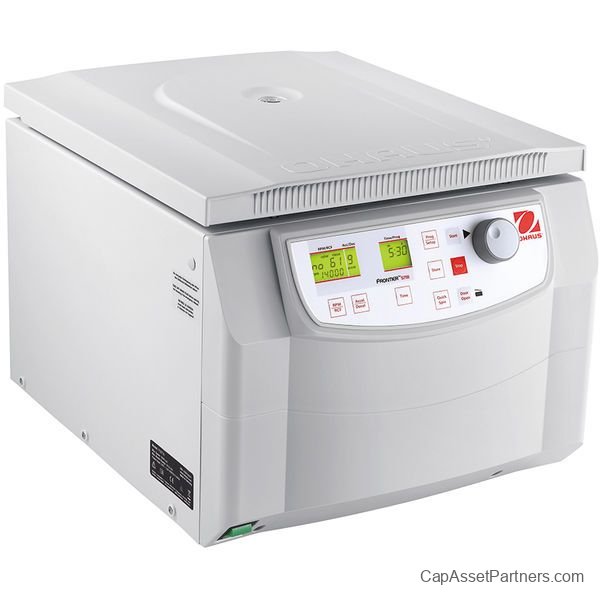

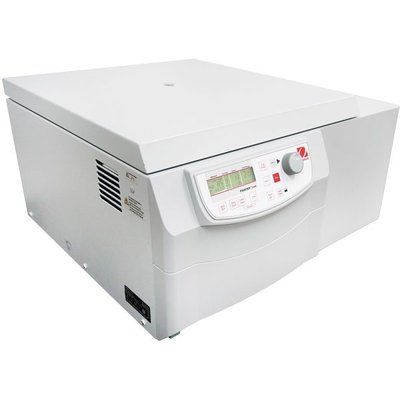

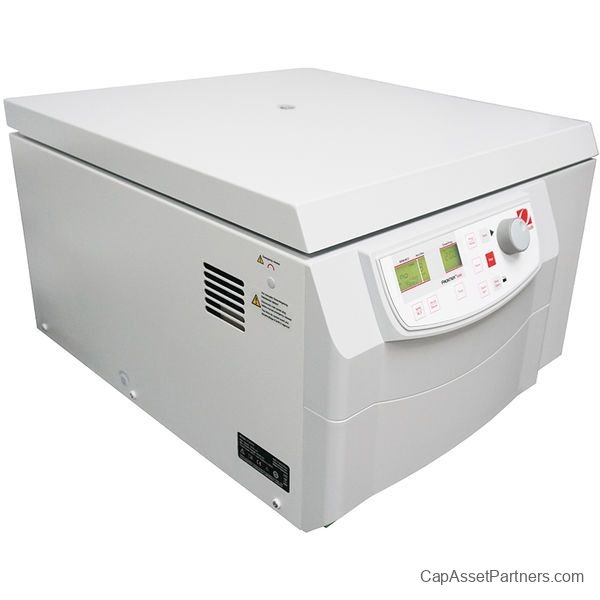

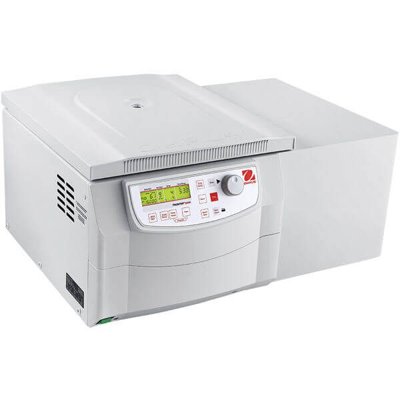

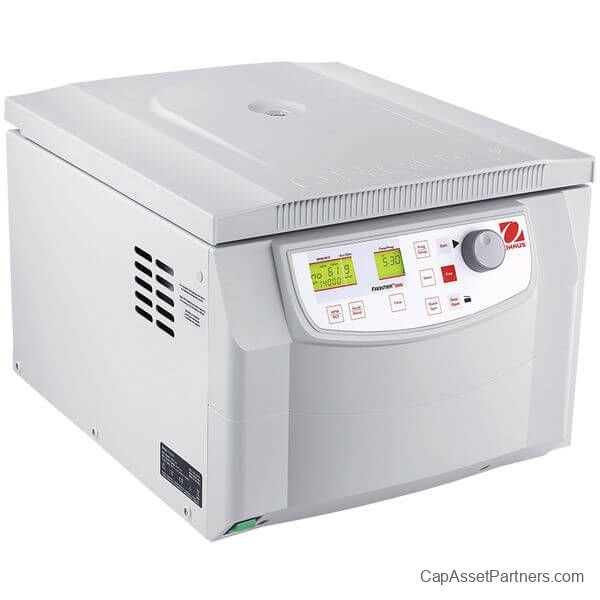

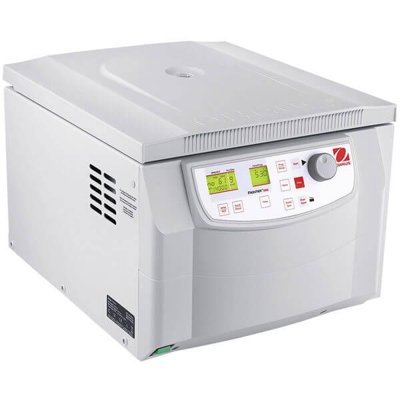

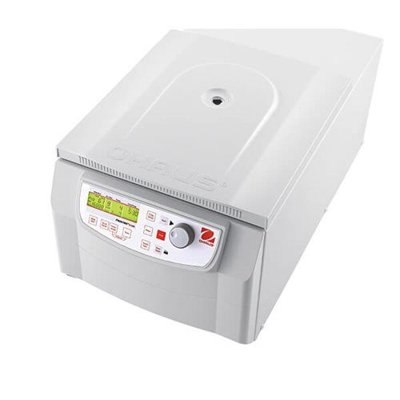

Frontier™ 5000 Series Multi-Pro Centrifuges
Discover the unparalleled versatility of the Frontier™ 5000 Series Multi-Pro Centrifuges, designed to meet the diverse needs of laboratory environments. With a selection of seven distinct models, these centrifuges boast a speed range of 14,000 - 18,000 rpm, catering to small to medium capacity applications. The Frontier™ 5000 series is perfectly suited for spinning a wide variety of tubes and bottles, including microtubes, blood tubes, round bottom tubes, conical tubes, and microtiter plates.
Key Features:
- Versatile Platform: Provides maximum flexibility for various laboratory applications.
- User-Friendly Design: Intuitive controls for seamless operation.
- Reliable Engineering: Solid construction ensures durability and longevity.
- Enhanced Safety: Built-in protective features to safeguard users and samples.
- Automatic Rotor Identification: Simplifies the transition between applications effortlessly.

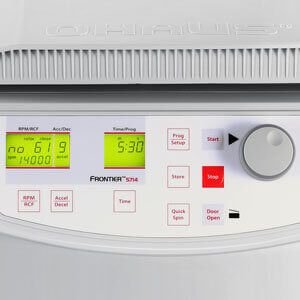

- One-Hand Operation: A selection button/rotary knob combination allows easy use, even with lab gloves.
- Large Backlit LCD: Displays centrifugation settings and real-time parameters in a single interface.
- Maintenance-Free Drive: Induction drive technology enhances reliability.

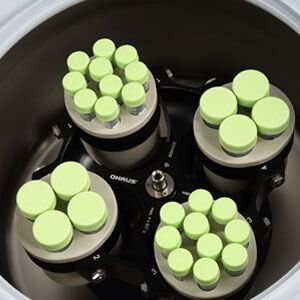

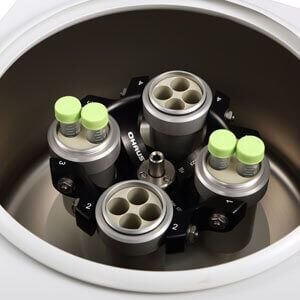

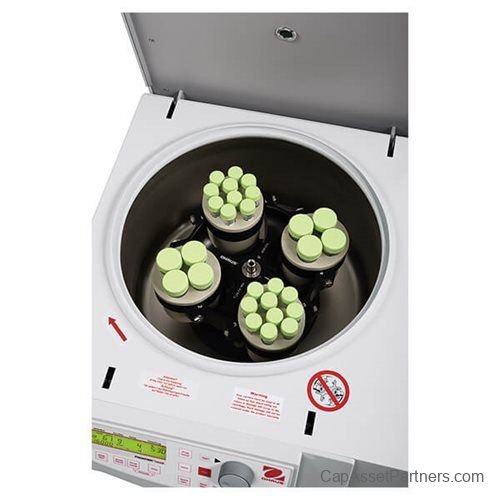

- Thread-Free Rotor Locking: Provides a secure and hassle-free rotor installation.
- Optimized Airflow System: Keeps samples cool in non-refrigerated configurations.
- Pre-Cooling Program: Quickly achieves the desired temperature in refrigerated models.
- Corrosion-Resistant Construction: Stainless steel housing engineered for durability in demanding lab environments.
- Self-Diagnostics: Monitors usage and error history to streamline maintenance and minimize downtime.
Model Specifications:

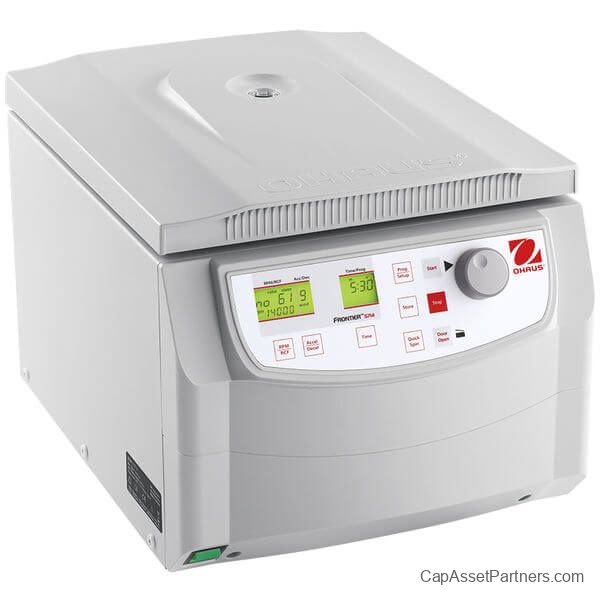

FC5714 Centrifuge (Non-Refrigerated)
- Compatible with up to 9 optional rotors and 77 accessories.
- Capacities ranging from 0.2 mL to 4 x 100 mL.
- High-speed centrifugation (> 10000 rpm) handling 0.2 mL up to 1.5/2.0 mL tubes.
FC5718 (Non-Refrigerated) and FC5718R (Refrigerated)
- Compatible with up to 19 optional rotors and 122 accessories.
- Accommodates microliter (0.2 mL per tube) to 4 x 100 mL capacities.
- Supports high-speed centrifugation (>10000 rpm) for 0.2 mL up to 85 mL tubes.
- Temperature range of -20°C to 40°C (FC5718R).
FC5816 (Non-Refrigerated) and FC5816R (Refrigerated)
- Compatible with up to 13 optional rotors and 71 accessories.
- Capacities from 0.2 mL up to 6 x 250 mL.
- Enhanced sample processing with an additional rotor for blood collection and standard conical tubes.
- High-speed centrifugation (>10000 rpm) from 0.2 mL to 85 mL tubes.
- Temperature variable range of -20°C to 40°C (FC5816R).
FC5916 (Non-Refrigerated) and FC5916R (Refrigerated)
- Compatible with up to 14 optional rotors and 75 accessories.
- Capacities from microliter to 4 x 750 mL.
- Improved sample processing throughput with an additional rotor for blood collection and standard conical tubes.
- High-speed centrifugation (>10000 rpm) from 0.2 mL to 85 mL tubes.
- Temperature variable range of -20°C to 40°C (FC5916R).
Technical Specifications:
| SKU |
RCF High |
Temperature Range |
Noise Level |
Working Environment |
| 30553037 |
20 - 24,325 x g |
Air Cooled |
≤ 63 ± 2 dB(A) |
2°C - 35°C, 80% RH, Non-condensing |
| 30314815 |
20 - 23,542 x g |
-20°C - 40°C |
≤ 60 ± 2 dB(A) |
2°C - 35°C, 80% RH, Non-condensing |
| 30553103 |
20 - 26,331 x g |
-20°C - 40°C |
≤ 63 ± 2 dB(A) |
2°C - 35°C, 80% RH, Non-condensing |
| 30314817 |
20 - 21,379 x g |
Air Cooled |
≤ 61 ± 2 dB(A) |
2°C - 35°C, 80% RH, Non-condensing |
| 30314811 |
20 - 18,624 x g |
Air Cooled |
≤ 63 ± 2 dB(A) |
2°C - 35°C, 80% RH, Non-condensing |
| 30314819 |
20 - 24,325 x g |
-20°C - 40°C |
≤ 63 ± 2 dB(A) |
2°C - 35°C, 80% RH, Non-condensing |
| 30314813 |
20 - 23,542 x g |
Air Cooled |
≤ 60 ± 2 dB(A) |
2°C - 35°C, 80% RH, Non-condensing |
Additional Information:
| SKU |
Model # |
Dimensions |
Plug Type |
Display |
Certification |
| 30553037 |
FC5916 |
26.4 in x 15.4 in x 21.3 in |
AC Power |
LCD, Backlit |
CE, FCC |
| 30314815 |
FC5718R |
28.78 in x 14.13 in x 16.02 in |
AC Power |
LCD, Backlit |
CE, FCC |
| 30553103 |
FC5916R |
26.4 in x 15.4 in x 28.7 in |
AC Power |
LCD, Backlit |
CE, FCC |
| 30314817 |
FC5816 |
21.18 in x 13.94 in x 17.56 in |
AC Power |
LCD, Backlit |
CE, FCC |
| 30314811 |
FC5714 |
19.41 in x 12.99 in x 14.25 in |
AC Power |
LCD, Backlit |
CE, FCC |
| 30314819 |
FC5816R |
21.18 in x 13.94 in x 28.46 in |
AC Power |
LCD, Backlit |
CE, FCC |
| 30314813 |
FC5718 |
19.65 in x 13.82 in x 16.06 in |
AC Power |
LCD, Backlit |
CE, FCC |
