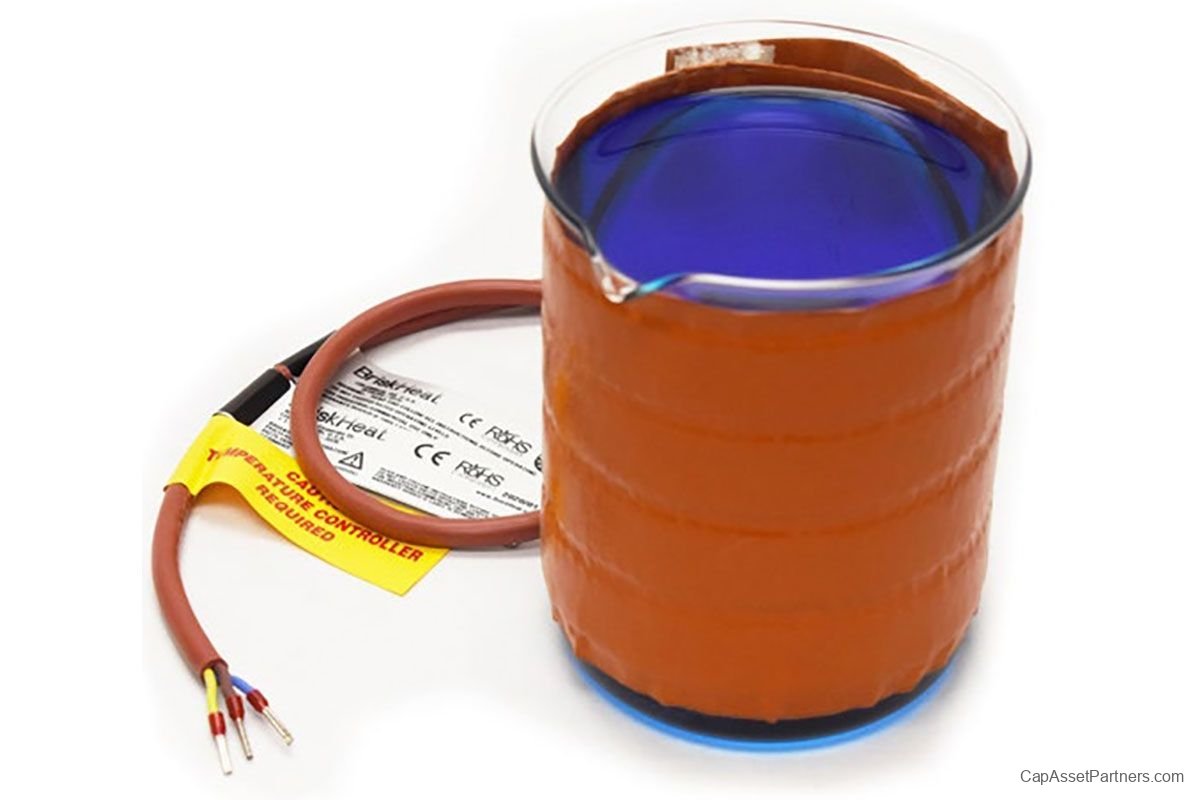

The GBHE Grounded Silicone Rubber Griffin Beaker Heaters are expertly designed for consistent and reliable heating in laboratory settings. These heaters are ideal for standard beaker applications, providing even temperature distribution to elevate your experimental processes.
Key Features:
- Delivers uniform heat tailored for Griffin and standard beakers.
- Removable and reusable, ensuring versatility in use.
- Equipped with a 360° grounded heating element for optimal safety.
- Constructed to be moisture and chemical resistant, enhancing durability.
- Permits easy access to graduation marks for precise measurement.
- Maximum Exposure Temperature: Up to 232°C (450°F).
- Voltage Options: Available in 120 or 240 VAC.
- Power Density: 5.0 W/in² (0.8 W/cm²).
- Dielectric Strength: Rated over 2000 Volts, assuring robust electrical insulation.
- Features a 24-inch (0.6 m) long power cord with crimped wire for convenient setup.
- Comes with ferrule terminated leads for secure electrical connection.
- Ingress Protection Rating: IP66 for high-level dust and water resistance.
Specifications:
| SKU |
Material |
Max Temperature |
Height |
Diameter |
Length |
Density |
| GBHE0250-2 |
Silicone Rubber |
450°F (232°C) |
3.25 in (83 mm) |
2.7 in (69 mm) |
12.25 in (311 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBHE0400-2 |
Silicone Rubber |
450°F (232°C) |
3.5 in (89 mm) |
3.0 in (76 mm) |
13.75 in (349 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBHE0600-2 |
Silicone Rubber |
450°F (232°C) |
4.0 in (102 mm) |
3.6 in (91 mm) |
15 in (381 mm) |
5.0 W/in² (0.8 W/cm²) |
| GBHE1000-2 |
Silicone Rubber |
450°F (232°C) |
4.6 in (117 mm) |
4.3 in (109 mm) |
17.25 in (438 mm) |
5.0 W/in² (0.8 W/cm²) |
Additional Information:
| SKU |
Voltage |
Certification |
Plug Type |
Lead Length |
| GBHE0250-2 |
240V |
REACH, RoHS, CE Approved |
Ferrule Terminated Leads |
24 in (0.6 m) |
| GBHE0400-2 |
240V |
REACH, RoHS, CE Approved |
Ferrule Terminated Leads |
24 in (0.6 m) |
| GBHE0600-2 |
240V |
REACH, RoHS, CE Approved |
Ferrule Terminated Leads |
24 in (0.6 m) |
| GBHE1000-2 |
240V |
REACH, RoHS, CE Approved |
Ferrule Terminated Leads |
24 in (0.6 m) |
