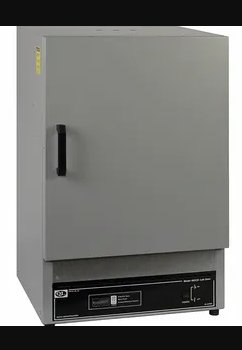

GCE Series Digital Gravity Convection Ovens
The GCE Series Digital Gravity Convection Ovens are engineered with precision, making them an ideal choice for laboratories in various sectors including industry, research, and education. Boasting exceptional versatility, these ovens excel in multiple applications such as part drying, baking, curing, sterilizing, evaporating, heat treating, annealing, and testing.
With a temperature range that spans from ambient +25°F to a maximum of 450°F (232°C), the GCE Series combines competitive pricing with reliability and performance.
Key Features
- Digital Microprocessor Control for precise temperature management

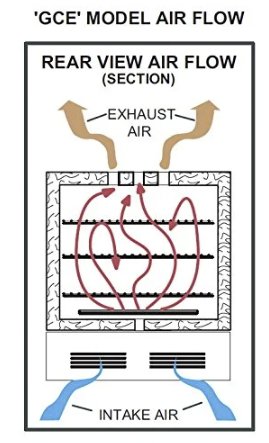

- Air Forced Gravity Convection for uniform heating
- Durable double-wall construction enhances thermal insulation
- Scratch-resistant hammer finish exterior for prolonged durability
- Corrosion-resistant aluminized steel interior ensures longevity
- Full 18-month factory warranty guarantees peace of mind
- Proven reliability for varied laboratory applications
Advanced Design
The exterior of the GCE Series ovens is not only functional but also aesthetically pleasing, featuring a painted light gray color and a tough, scratch-resistant hammer finish. The doors are equipped with high-impact thermoplastic handles, while the heavy steel double-wall construction and one-inch high-density mineral wool insulation ensure effectiveness and durability. The interiors are crafted from corrosion-resistant aluminized steel, facilitating a safe and efficient work environment.
Control System
The digital control system enhances operational ease, offering the advanced features of the analog model with added precision. The PID microprocessor maintains temperature settings within ±0.5°C (±1°F), accommodating fluctuations in ambient conditions or power supply. The user-friendly interface includes large LED displays to show both set and process temperatures, and a setting lock mode to safeguard against unintended adjustments.
Heating Elements
Designed for energy efficiency, the low-watt density, incoloy-sheathed heating elements provide rapid warm-up and recovery times. The introduction of a perforated heat shield greatly enhances temperature uniformity, capturing and distributing radiant heat evenly throughout the chamber.
Specifications
| SKU |
Controller |
Material |
Max Temperature |
Temperature Range |
Dimensions (W x D x H) |
Shelf Capacity |
Internal Dimensions |
Max. # of Shelves |
| 10GCE |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
450°F (232°C) |
Ambient +25°F to 450°F |
14 in x 17.5 in x 12.3 in |
35 lbs |
12 in x 10 in x 10 in |
10 |
| 20GCE |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
450°F (232°C) |
Ambient +25°F to 450°F |
15 in x 21.5 in x 15.3 in |
35 lbs |
13 in x 13 in x 13 in |
13 |
| 30GCE |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
450°F (232°C) |
Ambient +25°F to 450°F |
20 in x 25.5 in x 14.3 in |
35 lbs |
18 in x 15.6 in x 12 in |
16 |
| 40GCE |
Digital PID Microprocessor Control |
Aluminum, Solid Steel |
450°F (232°C) |
Ambient +25°F to 450°F |
20 in x 31.5 in x 16.3 in |
35 lbs |
18 in x 21.8 in x 14 in |
22 |
Additional Information
| SKU |
Model # |
Electrical Information |
Plug Type |
Temperature Stability |
Time to Reach Temperature |
Door Recovery Time |
Warranty |
| 10GCE |
10GCE |
115V, 5.2A, 600W |
5-15P |
± 1.0°F (± 0.5°C) |
Ambient to Max: 43 min. |
@300°F (Door Open 15 Sec.) 9 min.
@300°F (Door Open 30 Sec.) 13 min. |
18 Months |
| 20GCE |
20GCE |
115V, 6.3A, 750W |
5-15P |
± 1.0°F (± 0.5°C) |
Ambient to Max: 52 min. |
@300°F (Door Open 15 Sec.) 11 min.
@300°F (Door Open 30 Sec.) 14 min. |
18 Months |
| 30GCE |
30GCE |
115V, 10.5A, 1200W |
5-15P |
± 1.0°F (± 0.5°C) |
Ambient to Max: 37 min. |
@300°F (Door Open 15 Sec.) 10 min.
@300°F (Door Open 30 Sec.) 11 min. |
18 Months |
| 40GCE |
40GCE |
115V, 12.5A, 1500W |
5-15P |
± 1.0°F (± 0.5°C) |
Ambient to Max: 42 min. |
@300°F (Door Open 15 Sec.) 10 min.
@300°F (Door Open 30 Sec.) 14 min. |
18 Months |
