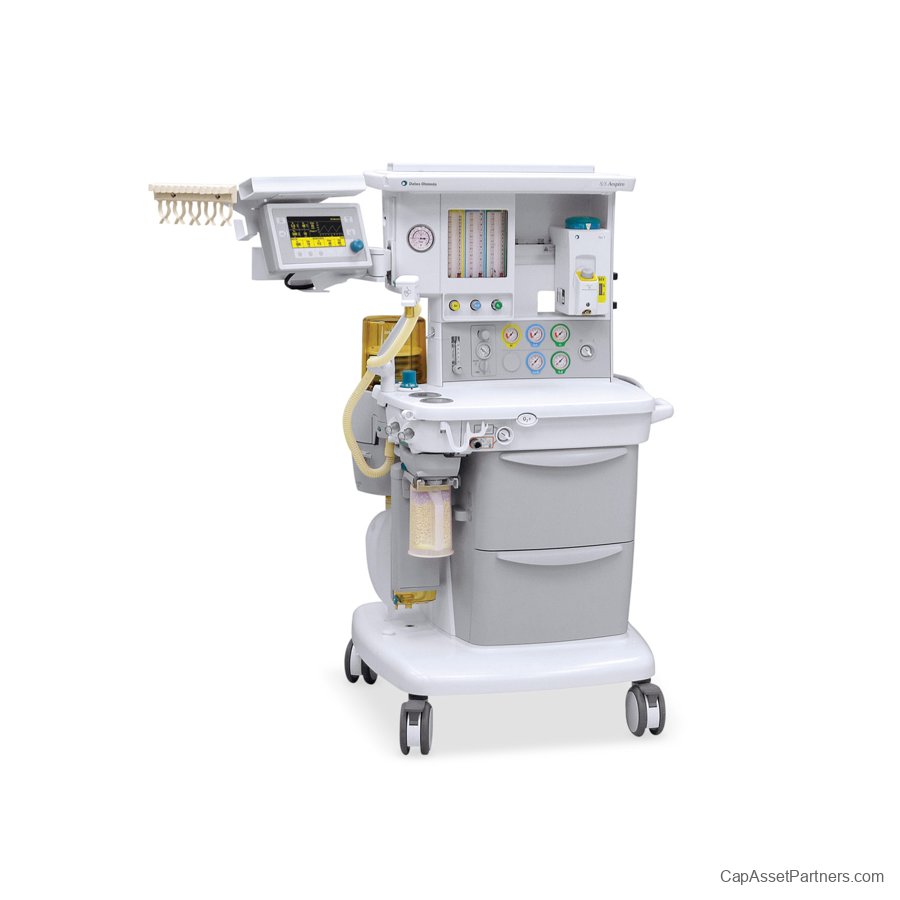

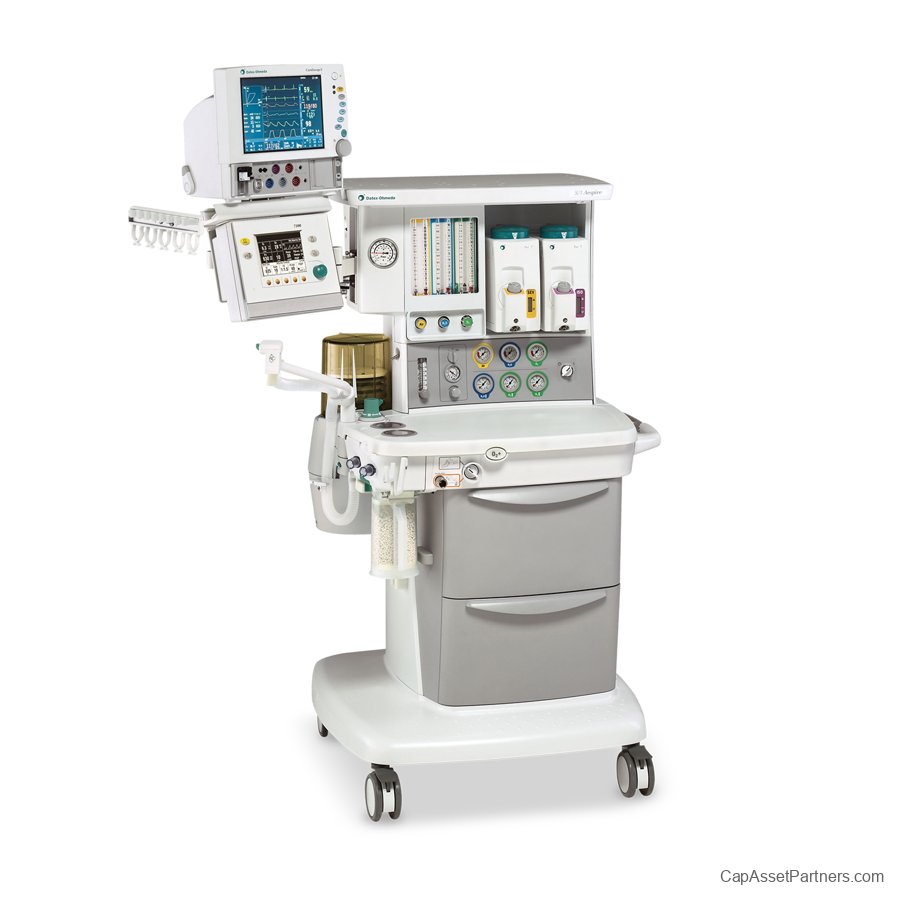

GE Aespire S5 Anesthesia Machine with 7900 SmartVent: Elevating Patient Care with Innovative Technology
The GE Aespire S5 Anesthesia Machine, equipped with the advanced 7900 SmartVent, is designed to enhance clinician-inspired solutions and improve patient care in various medical settings. This state-of-the-art anesthesia machine is known for its seamless integration with the GE/Datex Ohmeda Anesthesia Monitor Series, allowing for enhanced monitoring capabilities that cater to the needs of both patients and healthcare professionals.
Key Features:
  • Lightweight and Compact Design: The GE Aespire S5 is expertly engineered for easy maneuverability, making it suitable for diverse clinical environments.
  • Integrated Auxiliary Options: Streamline procedures with the optional integrated auxiliary O2 flowmeter and suction control, ensuring quick access to essential functions.

Advanced Breathing System (ABS™):
The innovative ABS™ enhances user efficiency with features including:
  • A one-step bag/vent switch for quick ventilator operation.
  • A reduced number of parts and tube connections that minimize the potential for leaks and misconnects.
  • Tool-free ease of disassembly for convenient maintenance.
  • Fully autoclavable components and latex-free design for enhanced safety.

7900 SmartVent Ventilator:
This high-performance ventilator offers:
  • Versatile volume and pressure modes with electronic PEEP.
  • Synchronized Intermittent Mandatory Ventilation (SIMV) for optimal patient support.
  • Direct access to ventilator settings for immediate adjustments.
  • PSVPro mode, offering pressure support with apnea backup.
  • Intelligent smart alarms that pinpoint specific issues for prompt resolution, ideal for spontaneously breathing patients.

Cost-Effective and Efficient:
The GE Aespire S5 is designed with low flow capabilities and reduced life cycle costs in mind, featuring:
  • Only one scheduled maintenance check required per year, ensuring operational efficiency.
  • Fresh gas flow compensation that operates automatically, enhancing user experience (available with tidal volume compensation).
  • A minimum O2 flow of 50 mL and dual airflow tubes standard for higher resolution of low flows, minimizing wastage yet ensuring patient safety.

Elevate your clinical practice with the GE Aespire S5 Anesthesia Machine and provide exceptional care with its blend of advanced technology and intuitive design. Discover a solution that not only meets but exceeds your anesthesia needs.

GE Aespire S5 Anesthesia Machine with 7900 Smartvent Specifications


Physical Weight & Dimensions

  • Height: 134.5 cm / 52.9 in
  • Width: 72 cm / 28.3 in
  • Depth: 73 cm / 28.7 in
  • Weight: Approximately 108 kg / 238 lb

Top Shelf

  • Weight limit: 34 kg / 75 lb
  • Width: 66 cm / 26 in
  • Depth: 40 cm / 15.75 in

Work Surface

  • Height: 81.7 cm / 32.2 in
  • Size: 2160 cm² / 334 in²

DIN Rail

  • Side of machine: 34.5 cm / 13.6 in

Drawers (Internal Dimensions)

  • Height: 17.5 cm / 6.9 in
  • Width: 33 cm / 13 in
  • Depth: 26.5 cm / 10.4 in

Absorber Bag Arm (Optional)

  • Arm length: 30.5 cm / 12 in
  • Bag arm height (adjustable): 87 cm (34.3 in) to 104 cm (40.9 in)

Casters

  • Diameter: 12.5 cm / 5 in
  • Brakes: Individual locking front casters

Electrical Specifications

Current Leakage
  • 100/120 V: < 300 ?A

Power
  • Power input: 100-120 Vac, 50/60 Hz
  • Power cord length: 5 m / 16.4 ft
  • Rating: 15A @ 120 Vac

Inlet/Outlet Modules (120 V)
  • System circuit breakers: 15A
  • Outlets (optional): 4 outlets on back, 3-2A, 1-3A individual breakers, optional isolation transformer

Pneumatic Specifications

Auxiliary Common Gas Outlet
  • Connector: ISO 22 mm OD and 15 mm ID

Gas Supply
  • Pipeline input range: 240 kPa to 600 kPa / 35 psig to 88 psig
  • Pipeline connections: DISS-male, DISS-female, DIN 13252, AS4059, S90-116 or NIST (ISO 5359). All fittings available for O?, N?O, and Air, including pipeline filter and check valve.

  • Cylinder input: Pin indexed in accordance with CGA-V-1 or DIN; contains input filter and check valve. Note: Maximum 3 cylinders; two inboard mounted, one outboard mounted.
  • Primary regulator diaphragm minimum burst pressure: 2758 kPa / 400 psig
  • Primary regulator nominal output:
  • < 338 kPa / 49 psig for Pin indexed cylinder connections
  • < 407 kPa / 59 psig for DIN cylinder connections

Environmental Specifications

System Operation
  • Temperature: 10° to 40°C / 50° to 104°F
  • Humidity: 15 to 95% relative humidity (non-condensing) per IEC 68-2-3
  • Altitude: -440 to 3565 m / 500 to 800 mmHg

System Storage
  • Temperature: -15° to 50°C / -5° to 122°F
  • Humidity: 10 to 95% relative humidity (including condensing) per IEC 68-2-3
  • Altitude: -440 to 3565 m / 500 to 800 mmHg
  • Oxygen cell storage: -15° to 50°C / 5° to 122°F; 10 to 95% relative humidity; 500 to 800 mmHg

Electromagnetic Compatibility

  • Immunity: Complies with all requirements of EN 60601-1-2
  • Emissions: CISPR 11 group 1 class B
  • Approvals: UL 2601-1; CSA C22.2 #601.1; EN/IEC 60601-1; CE 0197
