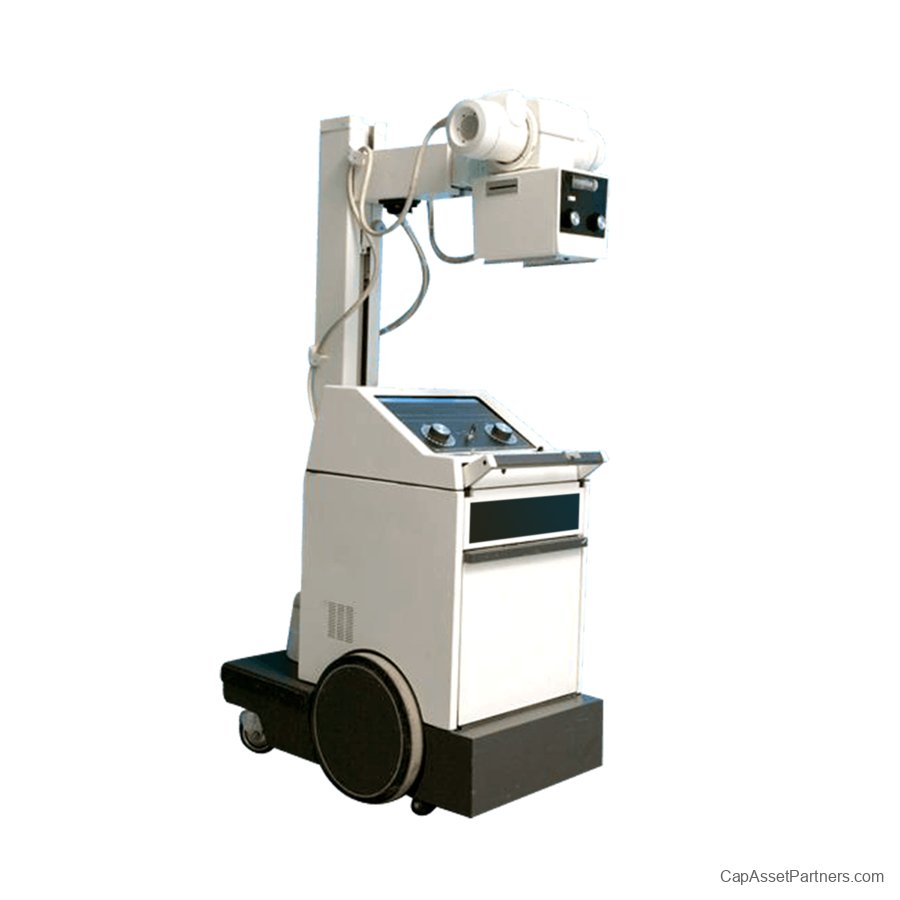

GE AMX-III Portable X-Ray Machine

GE AMX-III Portable X-Ray Machine

The GE AMX-III Portable X-Ray Machine is designed for medical professionals seeking efficiency, convenience, and high-quality imaging in diverse clinical settings. This portable unit combines advanced technology with user-friendly features to deliver reliable performance, making it an essential tool for hospitals, clinics, and urgent care facilities.

Key Features

With its robust design and versatility, the GE AMX-III Portable X-Ray Machine is a trusted choice for healthcare professionals dedicated to delivering excellent patient care. Enhance your imaging capabilities and improve workflow efficiency with this state-of-the-art equipment.

GE AMX-III Portable X-Ray Machine Specifications

Power Requirements

• Source: Rechargeable 120V battery

Power Required to Recharge Battery

• Input Voltage: 110 to 125 VAC

• Frequency: 50/60 Hz

• Current: 6.0 amps

Battery Capacity

• Output: Approximately 10,000 mAs at 100 kVp (when fully charged)

Motor Drive Ratings

• Speed: Up to 180 feet per minute (54.9 meters per minute)

X-ray Generator Ratings & Duty Cycle

• Exposures: All radiographic exposures at 100 milliamperes

kVp (Maximum)

• Ranges:

• 110 to 125 kVp

• 95 to 105 kVp

• 50 to 90 kVp

mAs (Maximum)

• Values:

• 200 mAs

• 250 mAs

• 320 mAs

Operational Conditions

• All ratings and duty cycles subject to limitations of the X-ray tube rating at altitudes up to 8,000 feet (2,438 meters), average relative humidity not exceeding 80%, and ambient temperature between 60°F (15.6°C) and 100°F (37.8°C).

Typical Accuracies

• kVp Accuracy: ±6%

• mAs Accuracy: ±10%

Selection and Range

• mAs Range:

• 0.64 mAs to 1.25 mAs

• 1.6 mAs to 10 mAs

• 12.5 mAs to 320 mAs

• kVp Range:

• 50 kVp to 74 kVp

• 76 kVp to 125 kVp

Accuracy

• mAs Accuracy: ±30%, ±20%, ±12%, ±(9% + 1kV), ±(12% + 2 kV)

• kVp Accuracy: Subject to additional ±(5% + 2kV)

Conditions to Meet Previously Mentioned Accuracies

• Handswitch must have been released for 25 seconds after the previous exposure.

• 15-minute interval after change completion with keyswitch in ON or CHARGE.

• Main power circuit breaker must be ON before making an exposure.

Collimator

• Filtration: Minimum inherent filtration of 1.5 mm aluminum equivalent to 150 kVp.

• Additional Filtration: Can be obtained by inserting 1 mm and/or 2 mm aluminum filters.

• Source-to-Skin Distance: Limited to more than 30 cm by tracks on the bottom of the collimator for accessory extension mounting.

• Radiographic Coverage: Full 17" x 17" (43 cm x 43 cm) coverage at 40" (1.02 m) source to image distance for tubes with a 15-degree target angle.

• Collimator Rotation: Can be rotated and locked at 0°, ±15°, ±30°, ±45°, and ±90° from the front position.
