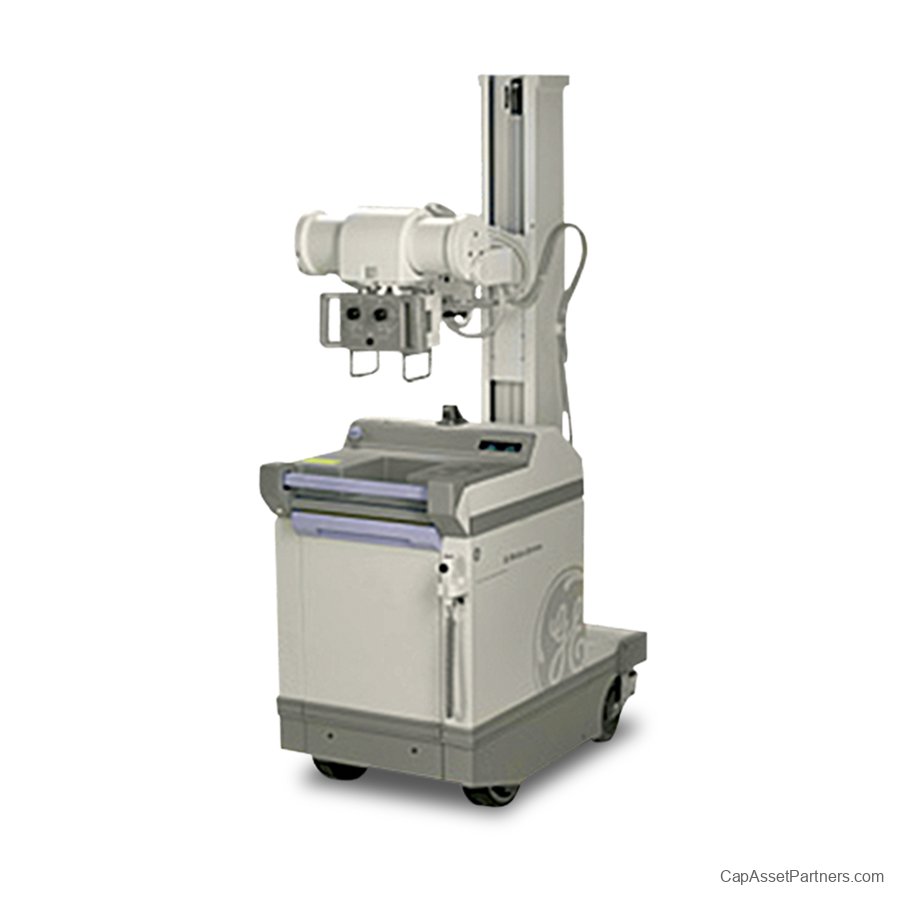

GE AMX-IV Portable X-Ray Machine
Introducing the GE AMX-IV Portable X-Ray Machine, a top choice for medical facilities seeking mobility without compromising on image quality. Designed for today's fast-paced healthcare environment, this portable X-ray machine combines advanced technology and exceptional functionality.
Features:
- High-Performance X-Ray Tube: Equipped with the MX-75 275k HU X-ray tube featuring a .75mm focal spot, ensuring high-resolution imaging for accurate diagnostics.
- GE AMX-IV Collimator: This precision collimator enhances the quality of images while optimizing radiation exposure.
- Superior Imaging: The machine provides high-quality images to assist healthcare professionals in reliable decision-making.
- Variable Speed Control: With forward and reverse variable speed capabilities, this unit is engineered for flexibility and ease of use.
- Complete Mobility: The design allows for seamless transportation, making it ideal for various clinical settings.
- User-Friendly LED Display: The bright LED display simplifies operation and enhances user experience.
Performance Specs:
- Power Independence: Operates at full power without needing a direct power connection, allowing for greater flexibility in patient care.
- Comprehensive kVp Stations: Offers 24 kVp stations for various imaging requirements (kVp range: 50 - 125).
- Versatile mAs Settings: With 30 mAs stations (mAs range: 0.4 - 320), the machine adapts to diverse diagnostic needs.
- Consistent Output: 100 mA constant output ensures stable performance across different imaging scenarios.
The GE AMX-IV Portable X-Ray Machine is an essential tool for healthcare providers focused on delivering accurate and efficient care wherever patients may be. Experience the perfect blend of innovation and mobility with this state-of-the-art imaging solution.
GE AMX-IV Portable X-Ray Machine Specifications
Physical Weight & Dimensions
- Height: 76 inches (1,930 mm)
- Width: 25-3/16 inches (640 mm)
- Depth: 45-3/8 inches (1,153 mm)
- Weight: 1,050 lbs (477 kg)
Battery
- Nine 12.9 volt batteries connected in series provide approximately 116 volts at full charge.
- Battery capacity: Approximately 20,000 mAs at 100 kVp when fully charged under specific conditions.
Movements
- Vertical Movement (measured at focal spot):
- Range: At least 52.5 inches (1,334 mm)
- Lowest Position: 26.1 inches (663 mm) from the floor
- Highest Position: 78.6 inches (1,996 mm) from the floor
- Horizontal Movement (measured at focal spot relative to column face):
- Range: 24 inches (610 mm) minimum to 40 inches (1,016 mm) maximum
- Tube Column Rotation: 360°
- Tube and Yoke Rotation (around horizontal arm, measured from tube port down position):
- Range: 360°, Detent Locations: 0, ±90°, ±180°
- Tube Trunion Rotation (measured from tube port down position):
- Range: 120°, Forward: 110°, Backward: 10°, Detent: 0°, 90°
- Collimator Rotation (from front of collimator with tube port facing down):
- Range: 180°, Right: 90°, Left: 90°, Detent: 0°, 90°
Drive Speeds
- Speed 1: 264 feet (6,705 mm) per minute ±25% with horizontal arm secured for support.
- Speed 2: Maneuvering speed with horizontal tube arm removed from transport latch (30% to 60% of drive speed).
> Note: Drive speed is measured on a smooth, hard, and level surface. Speed may decrease on inclines or soft surfaces.
Reproducibility
- Coefficient of variation of radiation output: Less than 0.045 for successive exposures with constant technique factors.
Collimator
- Minimum source to skin distance: More than 30 cm.
- Full Radiographic Coverage: 17" × 17" (43 cm × 43 cm) at 40" (1.02 m) source to image distance.
- Minimum inherent filtration: 2.0 mm aluminum equivalent at 100 kVp.
Light Field Intensity
- Average illumination at 100 cm (39.37 inches) from the focal spot: 16 foot candles (170 lux) or more.
