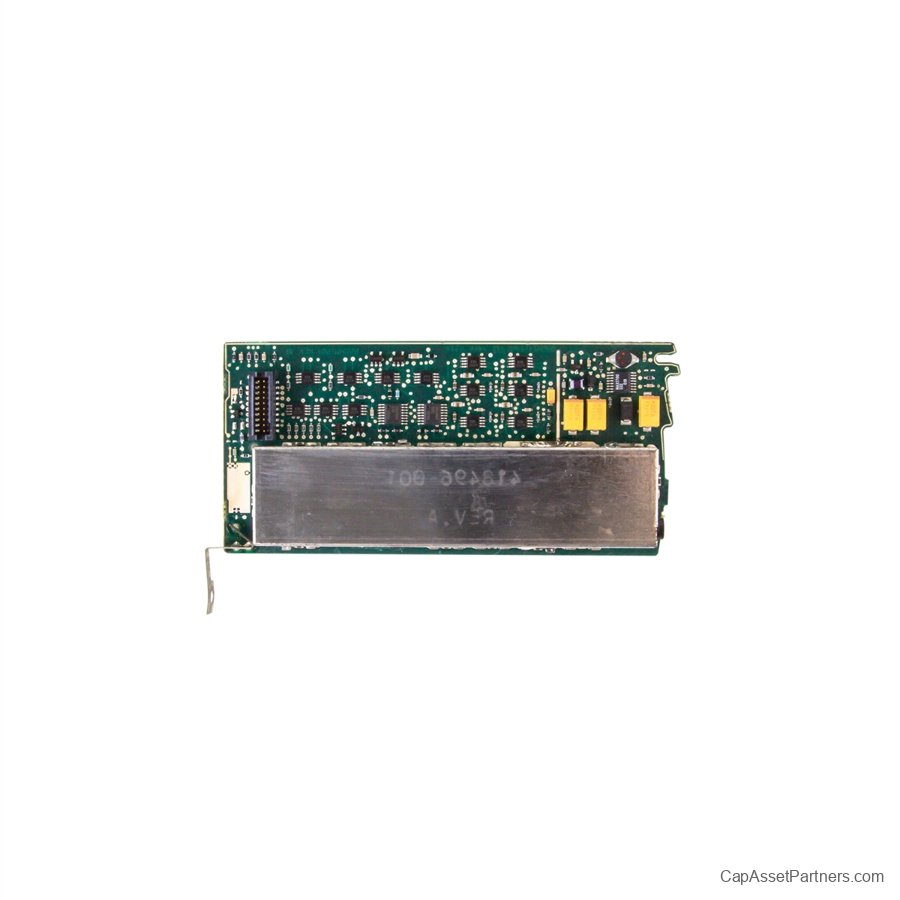

GE ApexPro Telemetry Transmitter Main Circuit Board PCB

Discover the high-quality GE ApexPro Telemetry Transmitter Main Circuit Board (PCB), meticulously tested and cleaned by our expert biomedical technicians to ensure optimal performance. This essential component is designed for seamless integration with the GE ApexPro Telemetry Transmitter, making it a critical part of your medical telemetry system.
The GE ApexPro Telemetry Transmitter Main Circuit Board is engineered for reliability and accuracy, guaranteeing that you maintain the highest standard of patient monitoring. The OEM part number for this circuit board is 801590-006, ensuring you are purchasing a compatible replacement that meets original specifications.
Elevate your medical equipment's efficiency with this reliable PCB, perfect for healthcare facilities looking to support advanced telemetry solutions. Invest in the GE ApexPro Telemetry Transmitter Main Circuit Board for superior patient care and monitoring capabilities.

GE ApexPro Telemetry Transmitter Main Circuit Board (PCB) Specifications

• Dimensions:

• Length: 4.0 inches (101.6 mm)

• Width: 3.0 inches (76.2 mm)

• Height: 0.5 inches (12.7 mm)

• Weight:

• Approx. 0.25 lbs (113.4 g)

• Operating Temperature:

• Range: 32°F to 122°F (0°C to 50°C)

• Power Supply:

• Voltage: 5 V DC (± 5%)

• Current Consumption: 200 mA maximum

• Communication Protocols:

• Wireless Frequency: 2.4 GHz ISM band

• Data Rate: Up to 1 Mbps

• Memory:

• RAM: 512 KB

• Flash: 1 MB

• Input/Output Interfaces:

• Serial Communication: RS-232/TTL

• Analog Inputs: 4 channels, 0-5 V (0-12 V option available)

• Digital Outputs: 2 channels, Open Collector

• Environmental Rating:

• IP Rating: IP 54 (dust and water resistant)

• Material:

• PCB substrate: FR-4

• Coating: Conformal coating for moisture resistance.

• Component Compatibility:

• Supports various sensors and modules as per the telemetry specifications.

• Certifications:

• Complies with CE and FCC standards.

• Assembly:

• Standard SMT (Surface Mount Technology) components.

• Operating Life:

• Estimated lifespan: 5 years under normal operating conditions.
