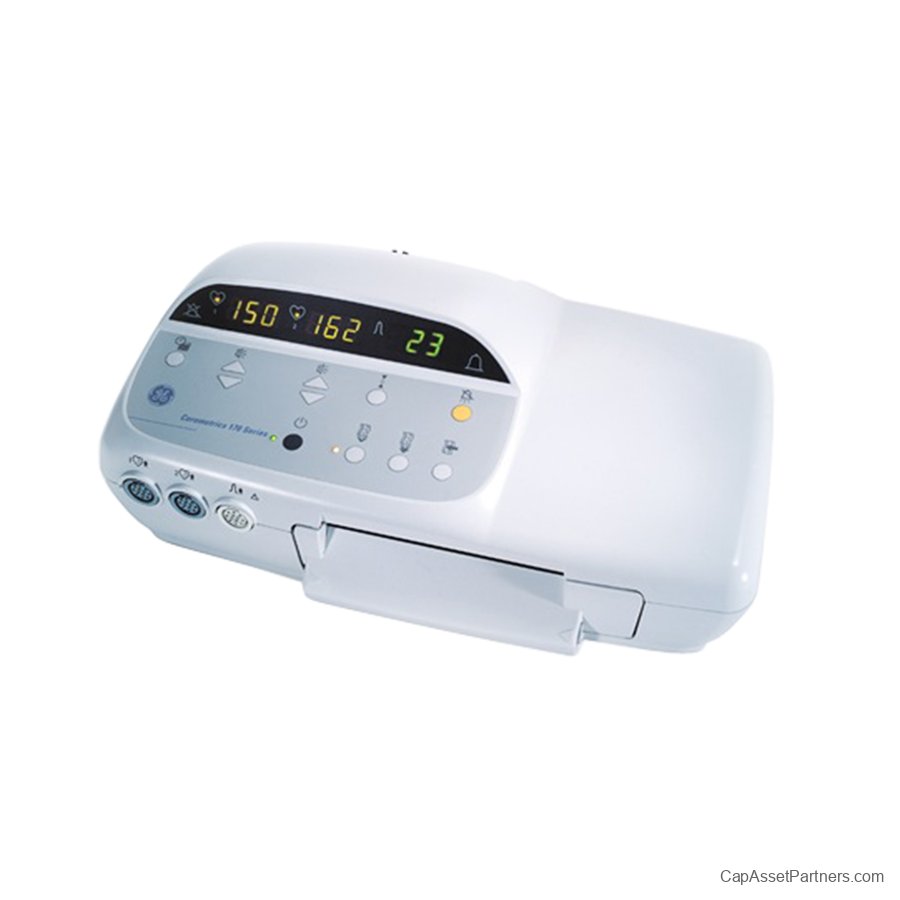

GE Corometrics 171 Fetal Monitor

Do you have a GE Corometrics 171 Fetal Monitor you want to sell?

We buy used equipment! Learn about selling

Manufactured by: GE

Category: Monitors - Fetal

GE GE Corometrics 171 Fetal Monitor
GE Corometrics 171 Fetal Monitor Overview
Introducing the GE Corometrics 171 Fetal Monitor, an essential tool in the Corometrics 170 Series designed for reliable and effective antepartum fetal monitoring. This user-friendly unit is especially ideal for clinicians seeking a cost-effective solution that ensures accurate fetal heart rate analysis. With its lightweight design, weighing just 8 pounds, the 171 is highly portable, making it convenient for various healthcare settings.
The Corometrics 171 features a clear LCD display, providing quick access to fetal heart rate data. Clinicians can easily customize heart rate alarm ranges according to individual patient needs, enhancing monitoring efficiency. The monitor also includes transducer placement aids, allowing for seamless navigation during each unique delivery scenario.
Engineered for singleton pregnancies, the GE Corometrics 171 Antepartum Monitor ensures precise monitoring and assessment. For those requiring dual heart rate monitoring capabilities, the 172 model is available as an alternative.
Key Features:
  • Monitors external uterine activity for comprehensive assessment
  • Customizable fetal heart rate alarms for tailored monitoring
  • Lightweight and portable design, weighing only 8 pounds
  • Watertight and lightweight TOCO and ultrasound transducers for reliability
  • 9-Crystal ultrasound technology for consistent monitoring performance
  • Independent volume controls facilitate optimal transducer placement
  • Optional fetal movement detection to enhance monitoring capabilities
  • Exclusively intended for use in singleton pregnancies

The GE Corometrics 171 Fetal Monitor stands out as a practical choice for healthcare providers who demand accuracy and ease of use in fetal monitoring.
GE Corometrics 171 Fetal Monitor Specifications

Physical
  • Dimensions: 5.75” (14.6 cm) H x 16.75” (42.5 cm) W x 10” (25.4 cm) D
  • Weight: 8 lbs (3.6 kg) approx.

Operating
  • Technique: Pulsed Doppler with auto correlation processing
  • Transducer Type: 9-crystal
  • Pulse Repetition: 2 kHz (all modes)
  • Frequency Pulse Duration: 92 µs
  • Transmitter Frequency: 1.151 MHz
  • Spatial-Average Temporal Isata: <5 mW/cm²
  • Average Intensity: Peak Instantaneous 1.8 mW/cm²
  • Focal 20 dB Beam Area: 16.6 cm², at a range = 7 cm
  • Heart Rate Counting Range: 50-120 BPM
  • Leakage Current: Complies with IEC 601.1.1 and/or IEC 601.1.1 harmonized national standard; complies with EN 60601-1-2:2002

Power
  • Normal Line Voltage: 100 - 230 VAC
  • Line Frequency: 50/60 Hz (operates over 47 - 63 Hz)
  • Power Consumption: ? 30 VA
  • Monitor DC Input: 12 Vdc at 2.5A

Environmental
  • Operating Temperature: 50°F to 104°F (10°C to 40°C)
  • Relative Humidity (Operating): 10% to 75%, non-condensing
  • Storage Temperature: 14°F to 131°F (-10°C to 55°C)
  • Relative Humidity (Storage): 10% to 90%, non-condensing
