GE Corometrics 172 Fetal Monitor

Do you have a GE Corometrics 172 Fetal Monitor you want to sell?

We buy used equipment! Learn about selling

Manufactured by: GE

Category: Monitors - Fetal

GE GE Corometrics 172 Fetal Monitor

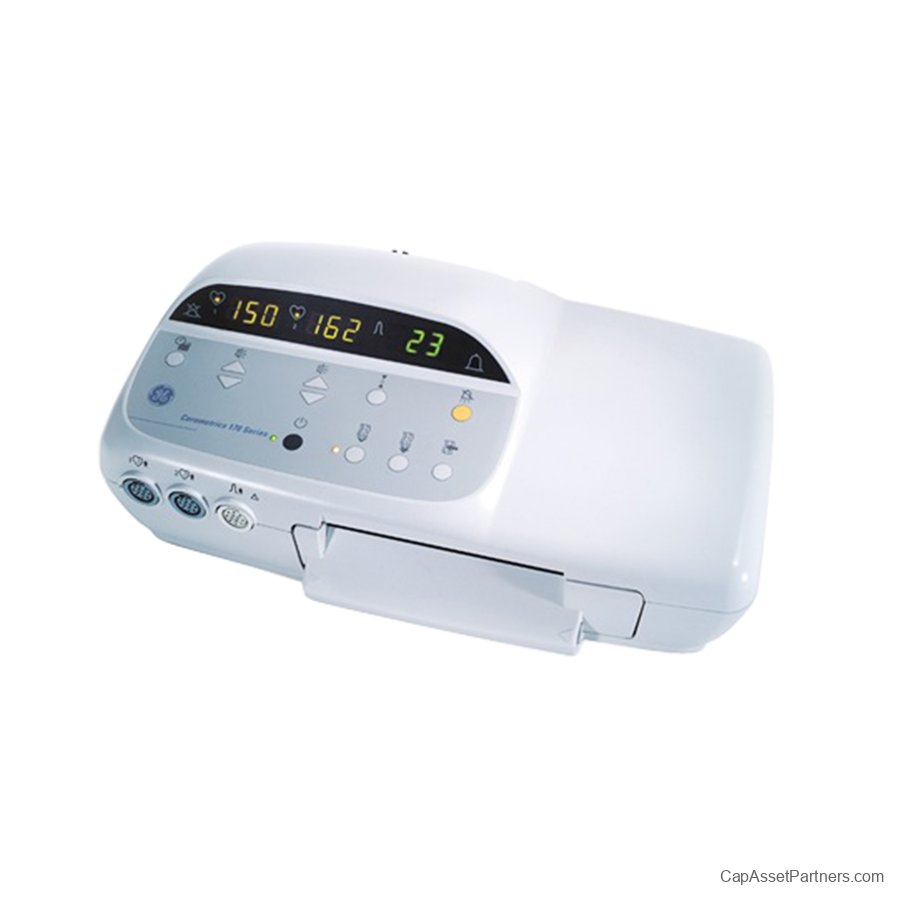

GE Corometrics 172 Fetal Monitor: Precision and Portability in Fetal Monitoring
The GE Corometrics 172 Fetal Monitor is an essential tool within the Corometrics 170 Series, expertly designed to support basic fetal monitoring during the antepartum phase for both singleton and twin pregnancies. This unit excels in portability, weighing in at just 8 pounds, making it the ideal solution for healthcare providers requiring mobility without compromising on functionality.
Equipped with a user-friendly LCD display, the GE Corometrics 172 allows for swift analysis of fetal heart rate, ensuring clinicians can make informed decisions quickly. The monitor features customizable heart rate alarm ranges, which enhance the safety and adaptability of fetal monitoring, and it includes placement aids to facilitate effective transducer positioning during each unique delivery scenario.
This model supports dual ultrasound capabilities that effectively cater to twin pregnancies, ensuring that both fetuses are monitored precisely. The 172 also offers optional fetal movement detection, a valuable feature for comprehensive fetal assessments.

Key Features:

  • Monitors external uterine activity for thorough evaluation.
  • Customizable fetal heart rate alarms for enhanced safety.
  • Highly portable design at just 8 pounds for easy transport.
  • Dual ultrasound capabilities for monitoring twin pregnancies.
  • Watertight, lightweight TOCO and ultrasound transducers ensure reliability.
  • 9-Crystal ultrasound technology for accurate monitoring.
  • Independent volume controls to optimize transducer placement.
  • Optional fetal movement detection for added monitoring capabilities.

The GE Corometrics 172 Fetal Monitor combines reliability, ease of use, and advanced features to provide healthcare professionals with the tools needed for effective fetal monitoring. Ideal for clinics and hospitals looking to enhance their antepartum capabilities, this monitor is a robust choice for any medical environment focused on maternal and fetal health.
GE Corometrics 172 Fetal Monitor Specifications

Physical:
  • Dimensions: 5.75” (14.6 cm) H x 16.75” (42.5 cm) W x 10” (25.4 cm) D
  • Weight: 8 lbs (3.6 kg) approx.

Operating:
  • Technique: Pulsed Doppler with auto correlation processing
  • Transducer Type: 9-crystal
  • Pulse Repetition: 2 kHz (all modes)
  • Frequency Pulse Duration: 92 µs
  • Transmitter Frequency: 1.151 MHz
  • Spatial-Average Temporal Isata: <5 mW/cm²
  • Average Intensity:
  • Focal 20 dB Beam Area: 16.6 cm² at a range = 7 cm
  • Peak Instantaneous Intensity: 1.8 mW/cm²
  • Heart Rate Counting Range: 50-120 BPM
  • Leakage Current: Complies with IEC 60 1.1 and/or IEC 601.1.1 harmonized national standard; complies with EN 60601-1-2:002

Power:
  • Normal Line Voltage: 100 - 230 VAC
  • Line Frequency: 50/60 Hz (operates over 47 - 63 Hz)
  • Power Consumption: ? 30 VA
  • Monitor DC Input: 12 Vdc at 2.5A

Environmental:
  • Operating Temperature: 50°F to 104°F (10°C to 40°C)
  • Relative Humidity (Operating): 10% to 75%, non-condensing
  • Storage Temperature: 14°F to 131°F (-10°C to 55°C)
  • Relative Humidity (Storage): 10% to 90%, non-condensing
