GE Corometrics 174 Fetal Monitor

Do you have a GE Corometrics 174 Fetal Monitor you want to sell?

We buy used equipment! Learn about selling

Manufactured by: GE

Category: Monitors - Fetal

GE GE Corometrics 174 Fetal Monitor

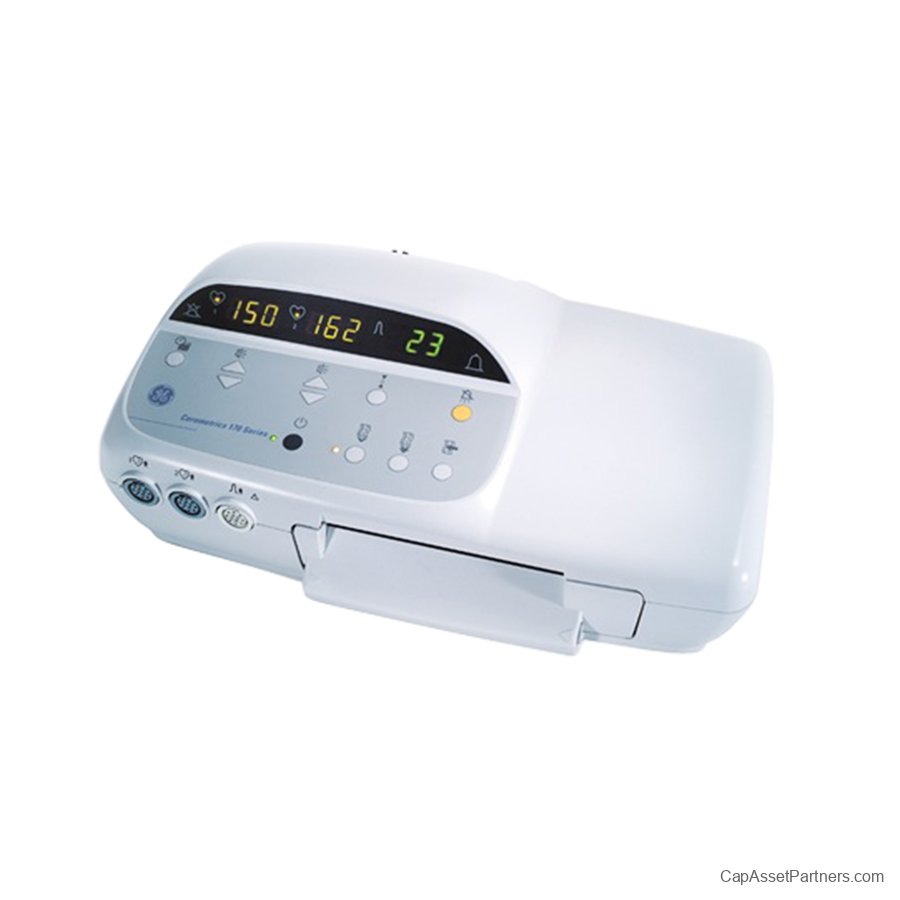

Product Description: GE Corometrics 174 Fetal Monitor
Introducing the GE Corometrics 174 Fetal Monitor, an essential tool for healthcare professionals seeking a reliable and efficient solution for fetal monitoring. Part of the acclaimed Corometrics 170 Series, this monitor is specifically designed to support both singleton and twin pregnancies during the antepartum period, labor, and delivery.
Weighing just 8 pounds, the GE Corometrics 174 is highly portable, making it easy to transport between rooms or facilities. The clear LCD display screen provides instant access to critical data, allowing for swift decision-making during monitoring sessions.
The monitor excels in dual heart rate monitoring, utilizing either FECG/ultrasound or dual ultrasound for comprehensive insights into fetal health. It also efficiently monitors external uterine activity with the included toco transducer and offers the option for internal monitoring using an Intrauterine Pressure Catheter (IUPC).
Clinicians will appreciate the customizable fetal heart rate alarm ranges tailored to each patient's unique needs. Additional features include placards for transducer placement, enhancing ease of use, and optional fetal movement detection to further enrich monitoring capabilities.
Key Features:
  • Monitors external uterine activity via TOCO
  • Supports internal uterine activity measurement through IUPC
  • Customizable fetal heart rate alarms for tailored monitoring
  • Dual heart rate monitoring capability
  • Highly portable design at only 8 pounds
  • Accommodates dual ultrasound for twin pregnancies
  • Watertight, lightweight TOCO and ultrasound transducer
  • 9-Crystal ultrasound technology for dependable monitoring
  • Independent volume controls for precise transducer placement
  • Features heartbeat coincidence and fetal heart rate offset
  • Optional fetal movement detection for comprehensive insights

The GE Corometrics 174 Fetal Monitor is designed to provide healthcare providers with the tools they need to ensure the safety and well-being of both mother and baby during critical moments. Choose this reliable and user-friendly monitor for your fetal monitoring needs.
GE Corometrics 174 Fetal Monitor Specifications

Physical
  • Dimensions: 5.75” (14.6 cm) H x 16.75” (42.5 cm) W x 10” (25.4 cm) D
  • Weight: 8 lbs (3.6 kg) approx.

Operating
  • Technique: Pulsed Doppler with auto correlation processing
  • Transducer Type: 9-crystal
  • Pulse Repetition: 2 kHz (all modes)
  • Frequency Pulse Duration: 92 µs
  • Transmitter Frequency: 1.151 MHz
  • Spatial-Average Temporal Isata: <5 mW/cm²
  • Average Intensity:
  • Focal 20 dB Beam Area: 16.6 cm², at a range = 7 cm
  • Peak Instantaneous Intensity: 1.8 mW/cm²
  • Heart Rate Counting Range: 50-120 BPM
  • Leakage Current: Complies with IEC 60 1.1 and/or IEC 601.1.1 harmonized national standard; complies with EN 60601-1-2:002

Power
  • Normal Line Voltage: 100 - 230 VAC
  • Line Frequency: 50/60 Hz (operates over 47 - 63 Hz)
  • Power Consumption: ? 30 VA
  • Monitor DC Input: 12 Vdc at 2.5A

Environmental
  • Operating Temperature: 50°F to 104°F (10°C to 40°C)
  • Relative Humidity (Operating): 10% to 75%, non-condensing
  • Storage Temperature: 14°F to 131°F (-10°C to 55°C)
  • Relative Humidity (Storage): 10% to 90%, non-condensing
