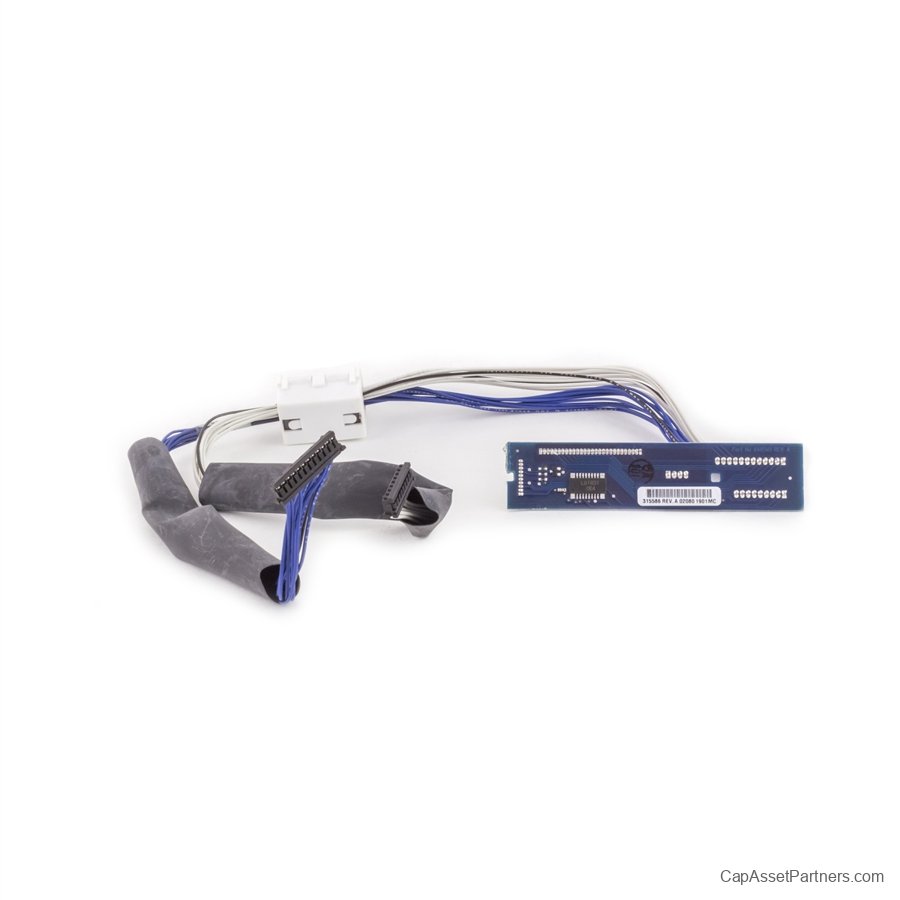

GE Critikon DinaMap Pro 100 200 300 400 V1 Patient Monitor Printer Interface Circuit Board PCB

Introducing the GE Critikon DinaMap Pro 100, 200, 300, and 400 V1 Patient Monitor Printer Interface Circuit Board (PCB), an essential component designed to enhance the functionality of your medical monitoring equipment. This high-quality printer interface board has been meticulously tested and cleaned by experienced biomedical technicians, ensuring optimal performance and reliability for your patient monitoring system.
Compatibility: This PCB is compatible with the following GE Critikon DinaMap Pro series patient monitors:

• GE Critikon DinaMap Pro 100 V1

• GE Critikon DinaMap Pro 200 V1

• GE Critikon DinaMap Pro 300 V1

• GE Critikon DinaMap Pro 400 V1

OEM Part Number: 315586
Upgrade your medical equipment with the GE Critikon DinaMap Pro Patient Monitor Printer Interface Circuit Board, and ensure smooth operation and accurate data reporting for critical patient care situations.

GE Critikon DinaMap Pro 100/200/300/400 V1 Patient Monitor Printer Interface Circuit Board Specifications

• Model: GE Critikon DinaMap Pro 100/200/300/400 V1

• Type: Interface Circuit Board (PCB)

• Power Supply:

• Voltage: 12 VDC (± 5%)

• Power Consumption: 10 W max

• Connections:

• Printer Interface: Standard RS-232

• Communication Protocol: ASCII

• Dimensions:

• Length: 7.1 inches (180 mm)

• Width: 5.5 inches (140 mm)

• Height: 1.0 inch (25 mm)

• Weight:

• Approx. 0.5 lbs (0.23 kg)

• Operating Temperature Range:

• 32°F to 122°F (0°C to 50°C)

• Storage Temperature Range:

• -40°F to 158°F (-40°C to 70°C)

• Humidity Range:

• Operating: 10% to 95% RH Non-condensing

• Storage: 10% to 95% RH Non-condensing

• Compatible Models:

• DinaMap Pro 100

• DinaMap Pro 200

• DinaMap Pro 300

• DinaMap Pro 400

• Compliance:

• CE Marked

• UL Listed

Additional Features:

• Data Transmission Rate: 9600 bps

• Diagnostics Support: Built-in self-test functionality

• User Interface: LED indicators for status and errors

Note:

• Ensure compatibility with specific models before installation. Always refer to manufacturer guidelines for installation procedures.
