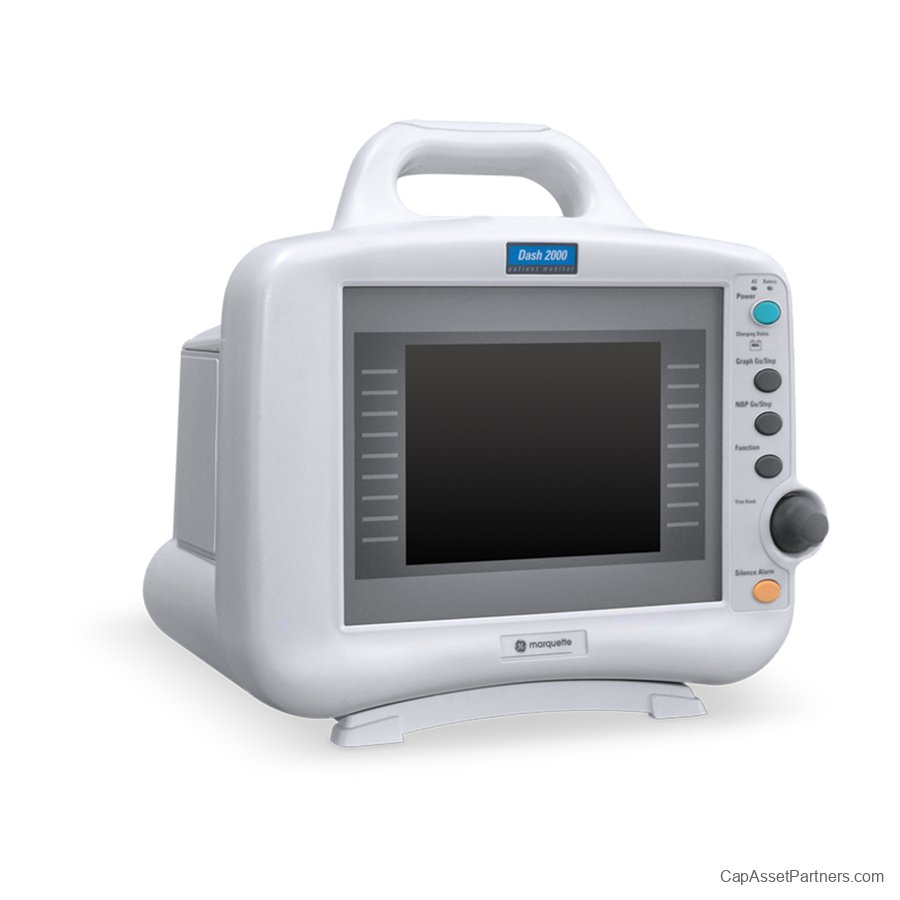

GE Dash 2000 Pro Monitor

GE Dash 2000 Pro Monitor – Exceptional Performance Meets Affordability

Discover the GE Dash 2000 Pro Monitor, a premier choice for clinicians seeking a perfect balance of reliability and cost-effectiveness in patient monitoring. Featuring GE Medical Systems Information Technologies' acclaimed performance, this monitor is designed specifically for special procedure rooms and physician offices, ensuring your patients receive the best care without straining your budget.

Features

Gold-Standard NIBP Accuracy

• Integrated with advanced DINAMAP® technology, the DASH 2000 Pro stands out as the only full-featured monitor providing unparalleled NIBP accuracy.

• This system consistently delivers the most reliable non-invasive blood pressure determinations available in a bedside monitor.

• Patented peak matching technology enhances measurement integrity by navigating through artifacts with stepped deflation, making it ideal for NICU, PICU, and adult hypertensive patients.

Gold-Standard Arrhythmia Detection

• Equipped with EK-Pro® technology for simultaneous multi-lead arrhythmia detection, this monitor sets the benchmark for both sensitivity and specificity in patient monitoring.

• Multiple leads ensure continuous monitoring, crucial for detecting localized events that could otherwise be overlooked.

• Incremental updates minimize noise interference, allowing for accurate tracking of subtle variations in cardiac rhythm.

• Continuous correlation provides precise QRS detection, even in challenging environments with noise or artifact.

• Contextual analysis significantly reduces false alarms and enhances arrhythmia recognition, tailored to each patient's unique heart patterns.

Easy to Use

• Enjoy a shared user interface common across all GE Medical Systems Information Technologies monitors, facilitating confident and quick transitions between devices.

• An intuitive menu structure simplifies operation, reducing the need for extensive training.

• Compatible connectors with SOLAR® and TRAM® monitors allow for seamless transitions to higher-acuity monitoring if a patient's condition changes.

Choose the GE Dash 2000 Pro Monitor for a blend of advanced technology, user-friendliness, and budget-friendly pricing—an essential addition to any healthcare setting.

GE Dash 2000 Pro Monitor Specifications

Physical Display

• Height: 10.25" (26 cm)

• Depth: 8" (20 cm)

• Width: 11" (28 cm)

• Weight: 12 lbs (5.5 kg) maximum

• Size: 5.8" (16 cm) diagonal

• Type: Monochrome LCD; optional color LCD

• Resolution: 320 x 240 pixels

• Number of traces: 3

• Number of seconds/trace: 3.8 at 25 mm/sec

• Sweep speed: 25 mm/sec (with erase bar)

• Information window: Non-real-time information display without obstruction of real-time data

• Display organization: Prioritized by parameter

ECG

• Leads: I, II, III, V, aVR, aVL, aVF

• Lead fail: Identifies failed lead

• Alarms: User-selectable upper and lower limits

• Heart rate range: 30 to 300 bpm

Respiration

• Measurement technique: Impedance variation detection

• Respiration rate range: 0 to 200 breaths per minute

• Alarms: User-selectable upper and lower respiration rate limits and apnea limit

IBP (Invasive Blood Pressure)

• Number of channels: 1

• Transducer sites: Arterial, pulmonary arterial venous, left arterial, intracranial, and special

• Range: -25 mmHg to 300 mmHg

• Alarms: User-selectable upper and lower limits for systolic, diastolic, and mean pressures

Temperature

• Number of channels: 1

• Range: 0°C to 45°C (32°F to 113°F)

• Resolution: ±0.1°C (0.18°F)

• Accuracy: ±0.1°C (0.18°F)

• Alarms: User-selectable upper and lower limits

NIBP (Non-Invasive Blood Pressure)

• Measurement technique: Oscillometric

• Displayed parameters: Systolic, diastolic, mean pressures, pulse rate, time of last measurement

• Measurement modes: Manual, auto, and start in adult ICU and OR modes; a/manual and auto in neonatal mode

• Heart rate detection: 30 to 300 beats per minute

• Total cycle time: 20 to 40 seconds typical

• Automatic cycle times: 0 to 24 hours

Pulse Oximetry

• Parameters monitored: Arterial oxygen saturation (SpO2) and peripheral pulse rate (PPR)

• SpO2 range: 50 to 100%

• PPR range: 30 to 300 beats per minute (±3 beats per minute)

• SpO2 accuracy: ±2% (70 to 100% SpO2), ±3% (50 to 69% SpO2)

• PPR accuracy: ±3 beats per minute

Alarms

• Categories: Patient status and system status

• Priority: 4 levels - crisis, warning, advisory, message

• Notification: Audible and visual

• Setting: Default and individual

• Silencing: 1 minute, current alarm only

• Pause: 5 minutes in adult ICU mode, 3 minutes in neonatal ICU mode, and 5, 15 minutes, or permanent pause in OR mode

• Volume: Default 70%, 70 dB measured at 1 meter

Controls

• Trim Knob® control

• Five hard keys: Silence alarm, graph go/stop, NBP go/stop, function, and power on/off

Electrical

• Power requirements: 90 to 264 VAC, 50/60 Hz, 500 mA

• Power consumption: 40 Watts (fully loaded)

• Cooling: Convection; Heat dissipation: 135 BTU/hr maximum
