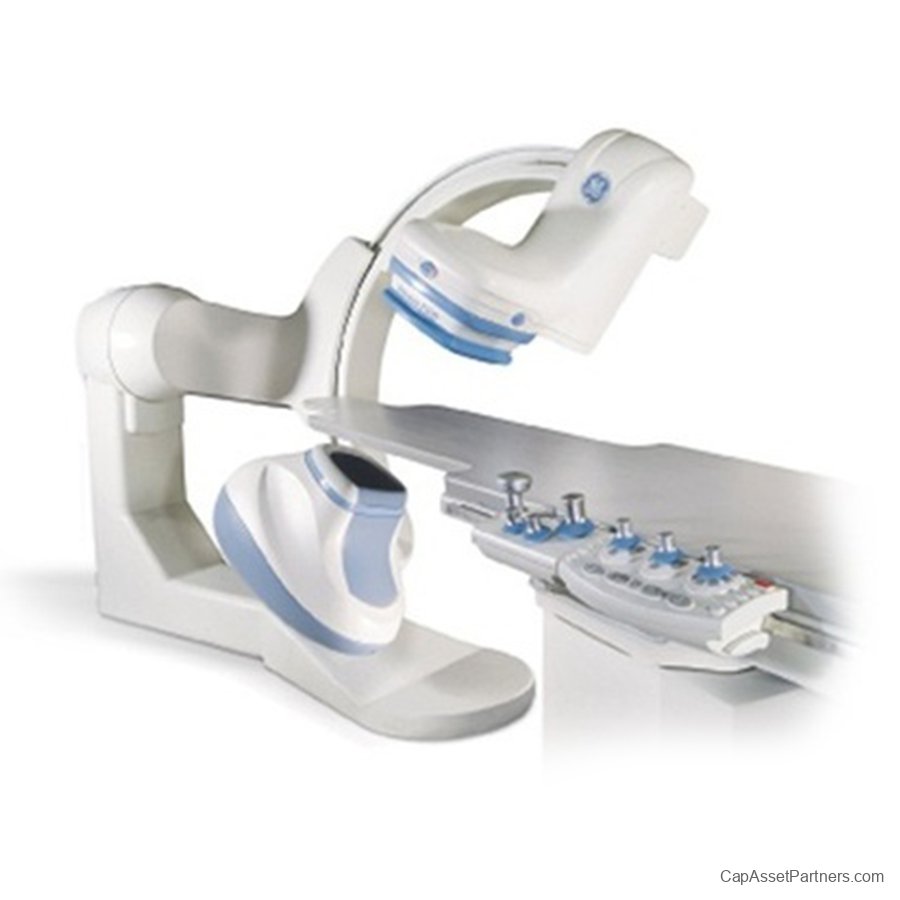

GE Innova 2100 Cath/Angio System

GE Innova 2100 Cath/Angio System: Advanced Cardiovascular Imaging Solution

The GE Innova 2100 Cath/Angio System stands out as a sophisticated solution for clinicians involved in cardiovascular procedures. This complete imaging system is meticulously designed to enhance patient positioning, ensuring both comfort and accessibility during interventional and diagnostic angiography. With its commitment to delivering consistently high image quality, the Innova 2100 facilitates precise and accurate assessments tailored to enhance patient care.

Key Features

• Ergonomic Design: The GE Omega IV angio table is built for versatility, accommodating a weight limit of up to 450 pounds while featuring a “floating top” that allows for flexible patient positioning.

• Optimal Adjustability: The table height can be easily adjusted between 30.5 to 42.5 inches, catering to various procedural needs and clinician preferences.

• Intuitive User Interface: The Table Side User Interface (TSUI) comes equipped with smart control options for efficient operation, alongside a central touchscreen for seamless interaction.

• High-Performance Components: The Innova Console includes a high-definition digital LCD monitor, exposure hand switch, keyboard, and mouse for enhanced usability.

• Advanced Imaging Capabilities: With a high-frequency and high-voltage generator, x-ray tube, collimator, and image detection unit, the system is engineered for excellence in imaging.

• Integrated DICOM Compatibility: Ensure smooth workflow integration with DICOM worklist compatibility, facilitating streamlined data management.

• Continuous Cooling System: An external chiller offers continuous water cooling, maintaining optimal performance during extended procedures.

• Comprehensive Radiation Protection: With ceiling and table-mounted protection systems, the Innova 2100 prioritizes clinician and patient safety.

• Versatile Accessories: Enhance your procedural setup with a variety of provided accessories, including table panning devices, arm supports, and dual footswitches.

The GE Innova 2100 Cath/Angio System is an indispensable tool for healthcare facilities seeking to elevate their cardiovascular imaging capabilities. Discover the difference that advanced technology brings to patient care with the Innova 2100.

GE Innova 2100 Cath/Angio System Specifications

Generator

• Nominal output power: 100 kW

• Max kW of generator’s output (loading time 0.1s): 100 kW

• Range of frequency used by the high-voltage generator: 20 kHz - 60 kHz

• kV-mA range:

• kV from 40 kV to 125 kV

• Maximum mA: 1000 mA

• Large focus:

• Maximum mA: 1000 mA

• Maximum power: 100 kW

• Small focus:

• Maximum mA: 400 mA

• Maximum power: 48 kW

• Compressed focus:

• Maximum mA: 200 mA

• Maximum power: 16 kW

Gantry

• L-arm rotation: +/- 100° (motorized limit set at +/- 95°)

• Offset C-arm (pivot): -117°/+105° RAO/LAO rotation

• C-arm angulation:

• Cranial: 50°

• Caudal: 45°

• SID fully motorized: 8.9 cm/s (3.5 in/s)

• SID range: 85 cm to 119 cm (33.5 in to 46.8 in)

• Travel distance: 34 cm (13.4 in)

• X-ray tube focal spot to isocenter: 72 cm (28.3 in)

• Isocenter to floor: 107 cm (42 in)

Omega IV Table

• Tabletop filtration: < 0.85 mm aluminum equivalent

• Mattress: 2.5 cm (1 in) + slicker < 0.70 mm aluminum equivalent

• Maximum patient weight: 204 kg (450 lb)

• Maximum table load: 204 kg (450 lb)

• Tabletop length: 300 cm (118 in)

• Tabletop width:

• Patient trunk area: 48 cm (18 in)

• Max: 67 cm (26.4 in)

• Horizontal float movement: 8-way

• Longitudinal travel: 110 cm (43.3 in)

• Transverse travel: manual +/- 14 cm (+/- 5.5 in)

• Vertical travel: 30 cm (12 in)

• Vertical travel above floor:

• 2 cm/s (0.8 in/s) at 50 Hz

• 2.5 cm/s (1 in/s) at 60 Hz

• Table base dimensions: 61 cm x 52 cm (24 in x 20.5 in)

• Table rotation: +/- 180°

Innova Digital

• DICOM V3.0 implementation

• Store capacity: up to 4,000 sequences and photos

Innova Imaging

• Input screen size of detector (cm):

• 0 Mag - 20

• 1 Mag - 17

• 2 Mag - 15

• 3 Mag - 12

• Horizontal center resolution (lp/mm):

• 0 Mag - 2.5

• 1 Mag - 2.5

• 2 Mag - 2.5

• 3 Mag - 2.5

• Hi-resolution 1249 line analog video output

• Hi-resolution 1249 line motor: 50 Hz

• Visibility range: 4 cm - 13 cm (using 20 cm PMMA and 16 cm PMMA step wedge)
