GE GE Innova 3131 Cath/Angio System

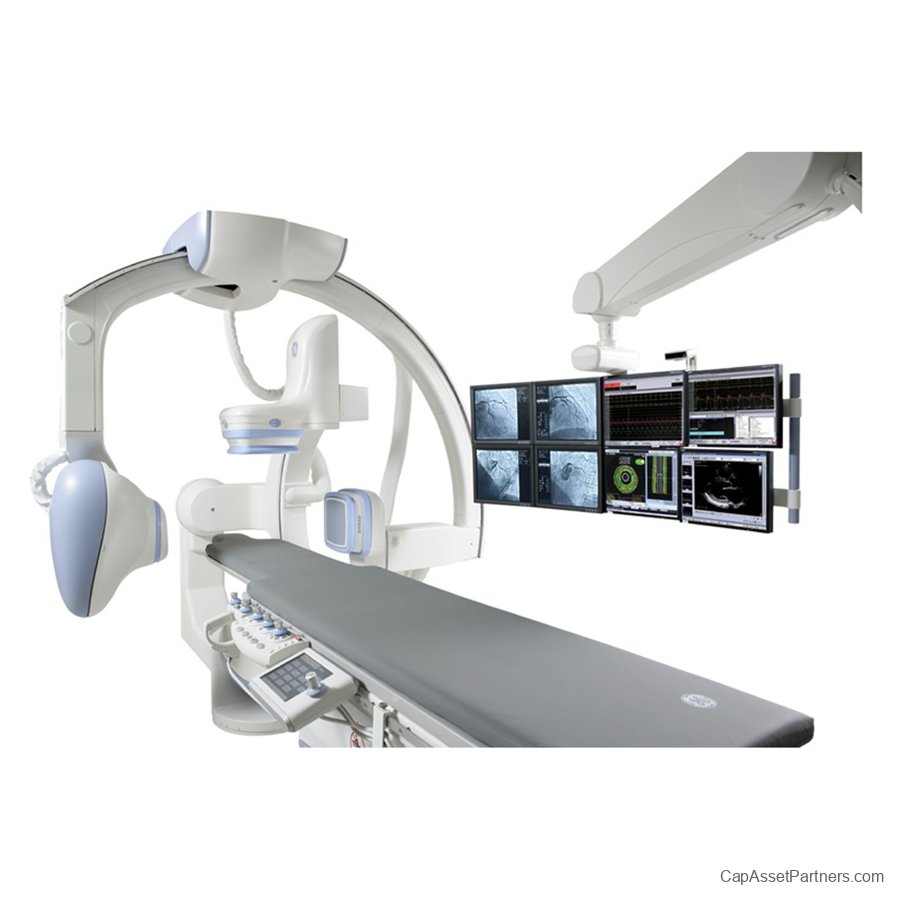

GE Innova 3131 Cath/Angio System: Advanced Imaging for Superior Patient Care
The GE Innova 3131 Cath/Angio System stands out as a fully integrated biplane angiographic x-ray system, designed to excel in interventional x-ray procedures. Tailored for both cardiology and neurology applications, this advanced medical equipment delivers exceptional image quality and performance, ensuring accuracy and reliability in diagnostics and treatment.
Equipped with a range of innovative features, the Innova 3131 promotes efficient workflow and patient comfort. With capabilities such as dose monitoring, real-time 3D imaging, and a max dose reduction setting, this system is engineered for safety and efficiency. The inclusion of smart fluoroscopy and anti-collision software enhances patient protection throughout the procedure.
Highlight Features:
  • Enhanced Imaging Performance: Achieves high-quality imaging with precision and consistency.
  • Flexible Configuration: Supports up to eight monitors for comprehensive visualization.
  • Comprehensive Safety Measures: Equipped with anti-collision sensors and robust dose monitoring features.
  • Advanced Technology: Includes real-time 3D imaging capabilities and smart handle controls for improved usability.
  • Integrated Components: Features like a tube chiller, detector chiller, and various C-arm units enhance performance and workflow.

The GE Innova 3131 is compatible with a variety of essential accessories, including but not limited to, table head extenders, armboards, IV poles, and patient support systems, ensuring a tailored setup for your clinical environment.
Invest in the GE Innova 3131 Cath/Angio System for a sophisticated solution that prioritizes image quality, patient safety, and operational efficiency, making it an invaluable addition to your medical practice.
GE Innova 3131 Cath/Angio System Specifications

Generator
  • Maximum Peak Power: 100 kW
  • Maximum Average Power: 3.2 kW
  • Frequency Range: 20 kHz - 60 kHz
  • kV-mA Range: 40 kV - 125 kV; 1000 mA maximum
  • Large Focus Maximum mA: 1000 mA
  • Large Focus Maximum Power: 100 kW
  • Small Focus Maximum mA: 400 mA
  • Small Focus Maximum Power: 48 kW
  • Compressed Focus Maximum mA: 200 mA
  • Compressed Focus Maximum Power: 16 kW

Gantry
  • LC Positioner (Frontal)
  • L-arm Rotation: ±100° (±95° motorized limit set)
  • Offset C-arm RAO/LAO Rotation: -117°/+105°
  • L-arm Rotation Speed: 10° per second
  • Cranial Angulation: 50°
  • Caudal Angulation: 45°
  • Combination Movement: ±55° cranial and caudal
  • SID Motorized Speed: 8.9 cm/s (3.5 in/s)
  • SID Range: 89 cm to 119 cm (35 in to 46.8 in)
  • Travel Distance: 30 cm (11.8 in)
  • X-ray Tube Focal Spot to Isocenter: 72 cm (28.3 in)

Gantry
  • LP Positioner (Lateral)
  • C-arm Angulation: 2° LAO to 115° LAO
  • C-arm Pivot Angulation: 45° cranial to 90° caudal
  • C-arm/C-arm Pivot Rotation Speed: 0° to 10° per second
  • X-ray Tube Focal Spot to Isocenter Range: 71 cm to 88 cm (27.9 in to 34.6 in)
  • SID Range: 84 cm to 137 cm (33.1 in to 54 in)
  • Detector and Tube Lift Speed: 89 mm/s

Omega Table
  • Maximum Load Capacity: 204 kg (450 lbs)
  • Tabletop Length: 333 cm (131 in)
  • Width: 46 cm (18 in) (patient trunk area), 67 cm (26.4 in) (maximum)
  • Horizontal Float Movement: 8-way
  • Horizontal Motorized Movement: 2-way
  • Longitudinal Speed: 0 to 15 cm/s
  • Longitudinal Travel: 170 cm (67 in)
  • Equivalent Fluoroscopic Coverage: 186 cm (73 in)
  • Transverse Travel: ±14 cm (5.5 in)
  • Vertical Travel: 30 cm (12 in)
  • Vertical Height Above Floor: 78 cm to 108 cm (30.7 in to 42.5 in)
  • Vertical Speed: 2 cm/s at 50 Hz, 2.5 cm/s at 60 Hz
  • Table Base Dimensions: 61 cm x 52 cm (24 in x 20.5 in)
  • Table Rotation: ±180°

Physical
  • Operating Temperature Range: 15°C to 32°C (59°F to 89.6°F)
  • Maximum Load on Table-side Rail: 40 kg (88.18 lbs)
