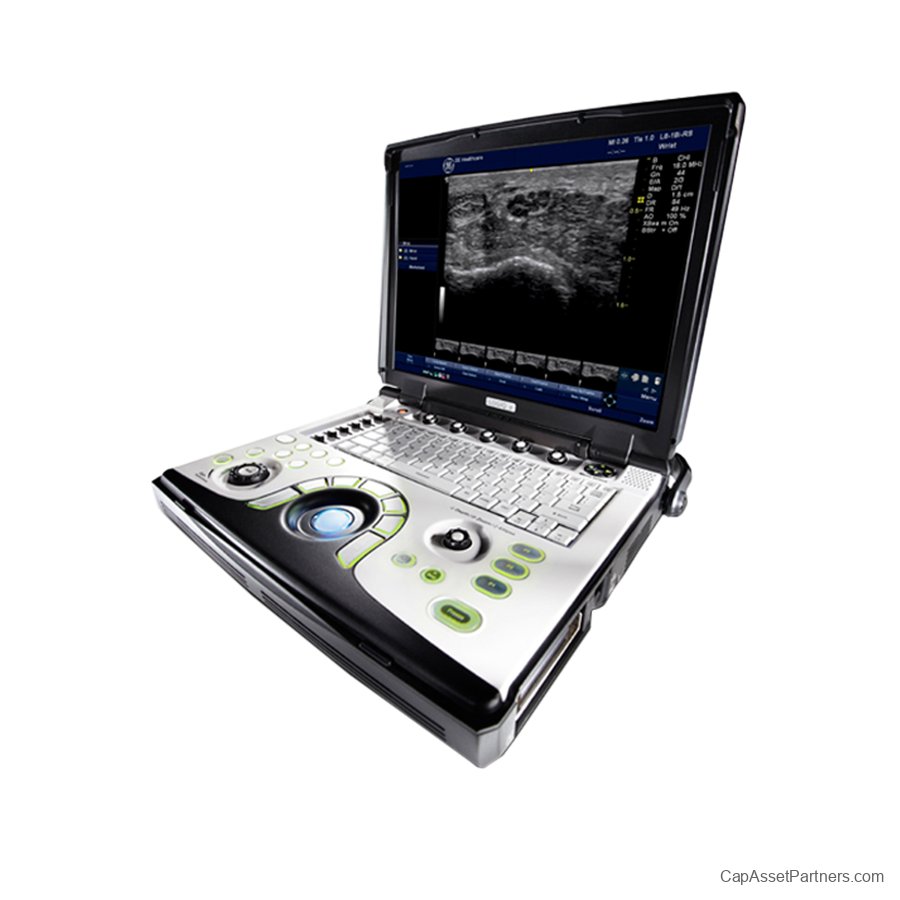

GE Logiq E Portable Ultrasound System

Product Description for the GE Logiq E Portable Ultrasound System
Introducing the GE Logiq E Portable Ultrasound System, a cutting-edge solution designed for exceptional medical imaging in a user-friendly, mobile format. This lightweight device is perfect for healthcare professionals seeking high-quality imaging on the go, ensuring accuracy and reliability in diverse clinical settings.

Applications

The GE Logiq E is versatile and suitable for a variety of medical applications, including:

• OB/GYN

• Vascular

• Abdominal

• Small Parts

• Musculoskeletal (MSK)

• Urology

• Cardiology

• Pediatric

• Neonatal

Key Standard Features

This portable ultrasound system is equipped with advanced features designed to enhance your imaging experience:

• B, CFM, M, PW, and PDI imaging modes

• Anatomical M-Mode for improved visualization

• 15-inch high-resolution color LCD screen

• Auto Tissue Optimization (ATO) for standardized imaging quality

• Auto CFM Optimization (ACO) for enhanced blood flow assessment

• Adaptive Color Enhancement (ACE) for clearer images

• TruScan Architecture, incorporating TruAccess, SmartScan, and ComfortScan technologies

• External USB DVD-RW drive for convenient data storage and transfer

Optional Features

The GE Logiq E also offers a range of optional features to further elevate your imaging capabilities:

• Continuous Wave (CW) Doppler for advanced cardiovascular assessments

• ECG module for comprehensive cardiac monitoring

• CrossXBeam for enhanced clarity and detail

• Easy 3D imaging for complex anatomical evaluations

• Coded Harmonics to improve image quality

• Automatic Image Optimization for effortless enhancements

• DICOM 3.0 connectivity for seamless integration with other systems

• LogiqView for advanced image management and review

Elevate your diagnostic capabilities with the GE Logiq E Portable Ultrasound System, designed to meet the needs of today’s dynamic healthcare environments. Experience the perfect blend of performance, portability, and precision in your medical imaging practices.

GE Logiq E Portable Ultrasound System Specifications:

• Dimensions:

• Width: 18.5 in (47 cm)

• Depth: 21.3 in (54 cm)

• Height: 28.5 in (72 cm)

• Weight: 85 lbs (39 kg)

• Display:

• Screen Size: 15 in (38 cm)

• Resolution: 1024 x 768 pixels

• Imaging Modes:

• 2D, M-Mode, Color Doppler, Pulsed Wave Doppler, Continuous Wave Doppler

• Frequency Range:

• 2 MHz to 12 MHz

• Probes:

• Compatible with multiple transducer types, including:

• Linear Array

• Curved Array

• Phased Array

• Power Supply:

• Voltage: 100-240 V

• Frequency: 50-60 Hz

• Power Consumption: 300 VA

• Battery Life:

• Up to 2 hours of continuous operation

• Data Storage:

• Internal Memory: 2000 images

• USB Ports: Yes (for external storage)

• Connectivity:

• DICOM Compatible

• Ethernet Port

• Operating System:

• Windows-based platform

• User Interface:

• Touchscreen

• Customizable settings and shortcuts

• Software Features:

• Advanced measurement and calculation packages for a variety of applications

• Additional Features:

• Lightweight design for portability

• Built-in handle for easy transport

• Optional battery upgrade for extended use
