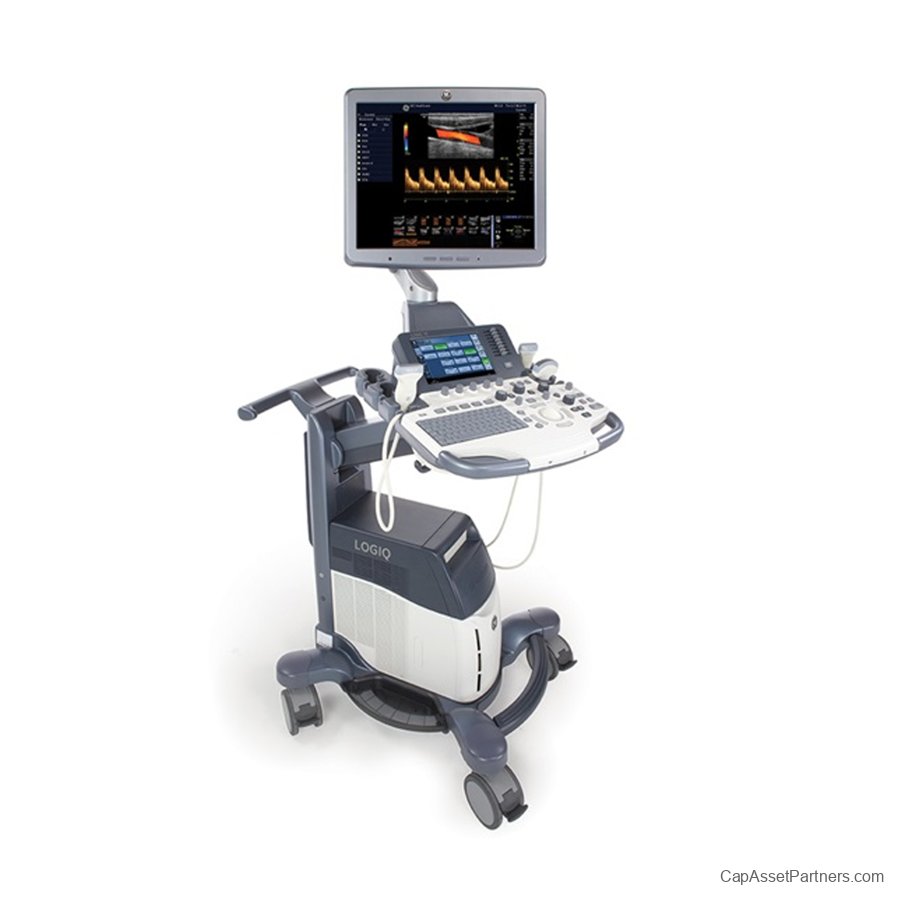

GE Logiq S8 Ultrasound System

GE Logiq S8 Ultrasound System: Next-Generation Imaging for Every Clinical Need
Introducing the GE Logiq S8 Ultrasound System, a state-of-the-art imaging solution designed for versatility and performance. This sleek, lightweight system fits seamlessly into tight examination spaces while providing exceptional high-quality imaging capabilities. The Logiq S8 is equipped with advanced, established technologies that deliver superior imaging for patients of all sizes, making it an ideal choice for a diverse range of clinical applications.
Whether your focus is general diagnostics or specialized imaging, the GE Logiq S8 adapts to meet your needs with ease. Its application-rich platform supports various medical disciplines, ensuring that healthcare professionals have the tools necessary for accurate diagnosis and improved patient care.
Applications of the GE Logiq S8:

• Breast Imaging

• Cardiac Assessments

• Emergency Situations

• Musculoskeletal Evaluations

• OB/GYN Procedures

• Vascular Studies

Elevate your imaging capabilities and enhance your clinical practice with the GE Logiq S8 Ultrasound System, a trusted ally for healthcare providers worldwide.

GE Logiq S8 Ultrasound System Specifications

• Display:

• Size: 15 inches (38.1 cm) TFT LCD

• Resolution: 1280 x 1024 pixels

• Dimensions:

• Height: 46.5 inches (118.1 cm)

• Width: 27.5 inches (69.9 cm)

• Depth: 32.0 inches (81.3 cm)

• Weight:

• Approximately: 175 lbs (79.4 kg)

• Transducer Types:

• Linear

• Curvilinear

• Phased array

• Endocavitary

• Frequency Range:

• Linear: 5.0 - 12.0 MHz

• Curvilinear: 2.0 - 8.0 MHz

• Phased array: 1.5 - 5.0 MHz

• Endocavitary: 3.0 - 10.0 MHz

• Imaging Modes:

• B-Mode

• Doppler (Color, Pulsed, Continuous Wave)

• 3D/4D Imaging

• Harmonic Imaging

• Battery Life:

• Up to 2 hours of continuous scanning with rechargeable battery

• Storage Capacity:

• Up to 30,000 images and clips

• Connectivity:

• DICOM compatibility

• USB ports for external devices

• Ethernet port for network connectivity

• Power Supply:

• Voltage: 100-240 VAC

• Frequency: 50/60 Hz

• Operating System:

• Windows-based interface

These specifications are essential for understanding the capabilities of the GE Logiq S8 ultrasound system in clinical settings.
