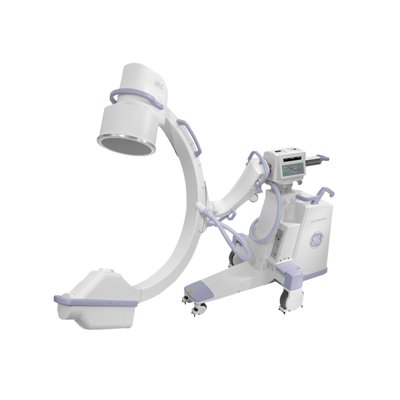

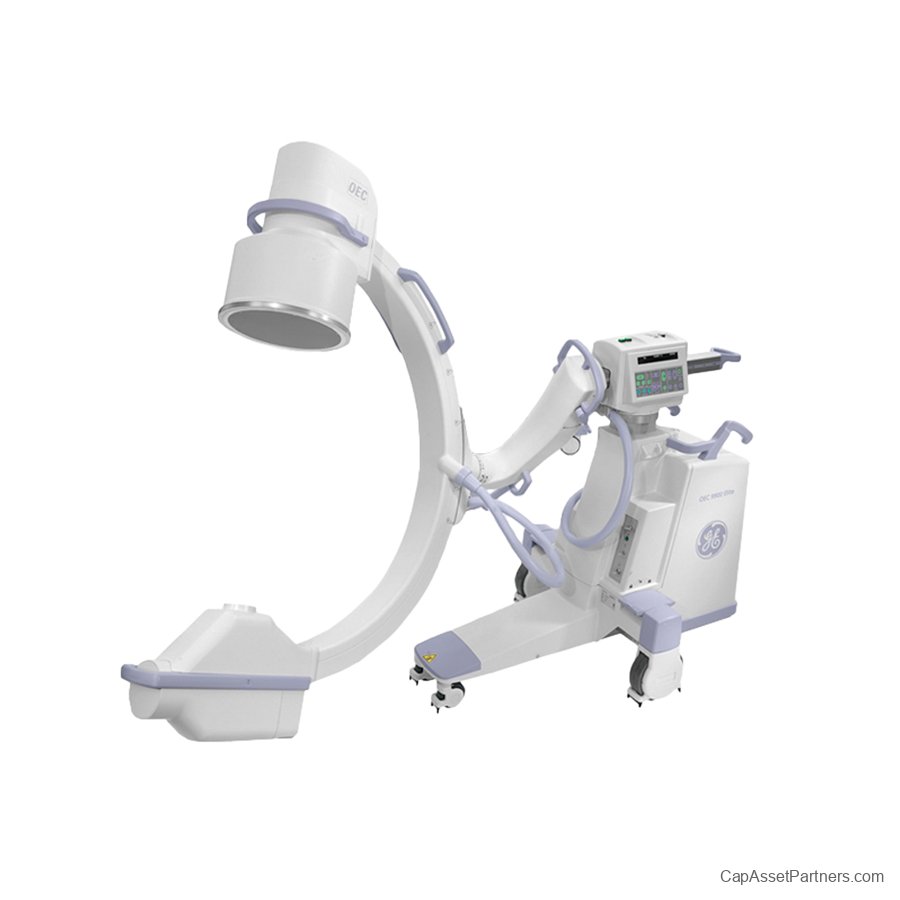

GE OEC 9900 Elite Mobile C-arm

Do you have a GE OEC 9900 Elite Mobile C-arm you want to sell?

We buy used equipment! Learn about selling

Manufactured by: GE

Category: C-Arm - Fluoroscopy Machines

GE GE OEC 9900 Elite Mobile C-arm
GE GE OEC 9900 Elite Mobile C-arm
GE None - C-Arm - Fluoroscopy Machines
GE None - C-Arm - Fluoroscopy Machines

Discover the GE OEC 9900 Elite Mobile C-arm: Exceptional Imaging Power in a Flexible Design


Elevate your imaging capabilities with the GE OEC 9900 Elite Mobile C-arm, a top-of-the-line device designed for high-resolution medical imaging. Boasting an impressive 1k x 1k output, this c-arm delivers unparalleled image clarity while remaining effortlessly mobile for improved accessibility in various clinical settings. Its innovative deep arch design facilitates premium patient access for both cardiovascular and pain management procedures, ensuring that clinicians can provide optimal care.


Key Features



    • Exceptional image quality combined with an easy-to-use interface enhances user experience.
    • 1k x 1k high-resolution imaging technology supports accurate diagnostics.
    • Maintains low radiation dosage while delivering high-quality images.
    • Designed for flexibility; ideal for hospital environments and outpatient facilities alike.
    • Capable of handling a wide range of imaging cases, from straightforward to complex.
    • Deep arch design ensures optimal patient access during procedures.
    • Quick positioning features and superior articulation for efficient workflows.
    • User-friendly interface streamlines operations, improving procedure time.
    • SmartView pivot joint offers true lateral imaging capability, reducing the need for multiple exposures.

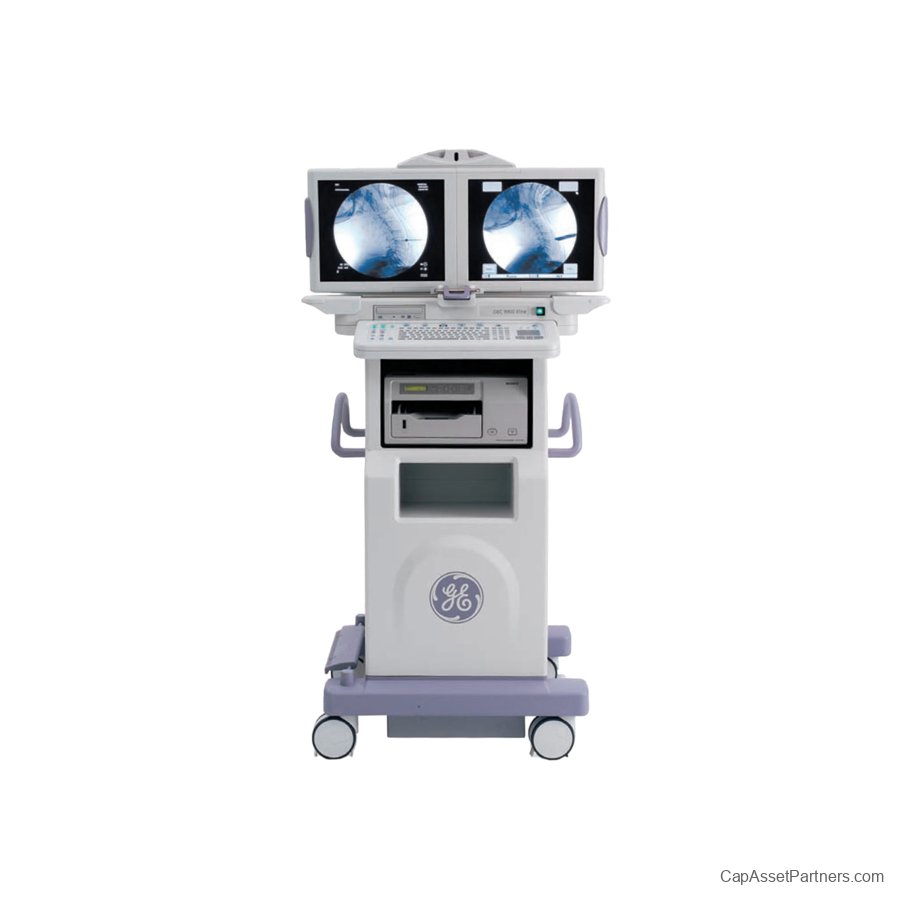

    • Flat panel monitors on an articulating arm provide versatile viewing angles throughout the imaging suite.
    • Intuitive dual control mainframe for easy access and fast operation.
    • Dynamic Range Management (DRM) technology ensures uncompromised image quality.
    • Extended imaging sessions are supported by a robust x-ray tube and cooling system.
    • Battery buffer technology significantly increases operational uptime.
    • 100 times more image computing power than earlier models enhances diagnostic capabilities.
    • Preset imaging profiles allow for quick adjustments tailored to specific needs.
    • Remote service connectivity enables efficient system diagnostics and support.

The GE OEC 9900 Elite Mobile C-arm is your go-to solution for advanced imaging efficiency, combining state-of-the-art technology with user-friendly features to improve patient outcomes and streamline healthcare delivery.

GE OEC 9900 Elite Mobile C-arm Specifications:

X-ray System Generator:
  • Frequency: 60 kHz
  • Power: 15 kW
  • Maximum Voltage: 120 kVp
  • Radiographic Film Exposure: Up to 75 mA
  • Continuous High Level Fluoroscopy (HLF): Up to 20 mA
  • Digital Spot: Up to 75 mA

X-ray Tube:
  • Type: Rotating anode X-ray tube
  • Focal Spots: 0.3 mm and 0.6 mm
  • Anode Heat Capacity: 300,000 HU
  • Anode Cooling Rate: 85,000 HU/min
  • Housing Heat Capacity: 1,600,000 HU
  • Standard Housing Cooling: 15,000 HU/min
  • Passive Housing Cooling: 22,500 HU/min (standard on 12-inch (31 cm) I.I. systems, optional on 9-inch (23 cm) systems)

Digital Image Rotation:
  • Features: Digitally adjusts image display
  • Automatic Updates: Image rotation, image reversal (side-to-side), image invert (top-to-bottom)
  • Positioning: Image positioning without additional exposure

PreView Collimator:
  • Features: On-screen collimator position indication
  • Type: PreView iris collimator
  • Design: PreView Tungsten rotatable double leaf collimator
  • Adjustment: Adjusts collimators without X-ray exposure

9-inch Image Intensifier:
  • Modes: Tri-mode 9”/6”/4.5” (23 cm/15 cm/11 cm)
  • Minimum Central Resolution:
  • 9” (23 cm): 2.2 lp/mm
  • 6” (15 cm): 3.0 lp/mm
  • 4.5” (11 cm): 3.5 lp/mm
  • DQE: 65% (typical)

12-inch Image Intensifier:
  • Modes: Tri-mode 12”/9”/6” (31 cm/23 cm/15 cm)
  • Minimum Central Resolution:
  • 12” (31 cm): 1.6 lp/mm
  • 9” (23 cm): 2.2 lp/mm
  • 6” (15 cm): 2.6 lp/mm
  • DQE: 65% (typical)

Precise Imaging Profiles:
  • Profiles Available: 9800, General, Orthopedic, Spine, Cardiac, Vascular, Bolus Chase

Video Camera:
  • Type: High resolution 1k x 1k CCD camera
  • Features: Full frame capture, motorized rotation
  • On-screen Indicators: Orientation indicator (real-time feedback without fluoro), left-right image reversal, top-bottom image invert
