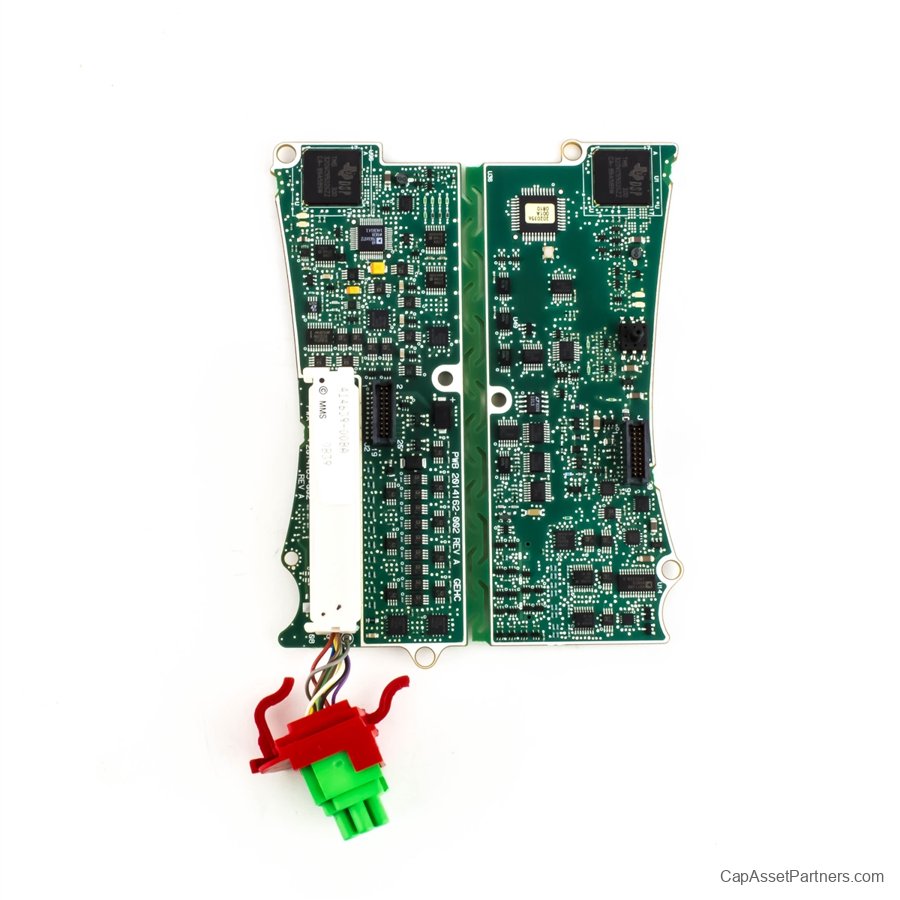

GE Patient Data Module PDM ECG Circuit Board & Connector

GE Patient Data Module PDM ECG Circuit Board & Connector
Elevate your medical equipment capabilities with the reliable GE Patient Data Module (PDM) ECG Circuit Board & Connector. This essential component is designed to ensure accurate and efficient ECG monitoring, making it a vital addition to your healthcare facility.
Each GE PDM ECG circuit board has been meticulously tested and cleaned by our experienced biomedical technicians, ensuring compliance with manufacturer specifications. This commitment to quality guarantees optimal performance and longevity for your medical equipment needs.
Key Features:

• Compatibility: Works seamlessly with all GE PDM configurations, providing versatility for your ECG monitoring requirements.

• OEM Part Numbers: This ECG circuit board is identified by OEM part numbers 2014163-002 and 2014162-002, ensuring you have the exact replacement for your medical devices.

Upgrade your ECG capabilities today with the GE Patient Data Module PDM ECG Circuit Board & Connector—where precision meets reliability in patient care.

GE Patient Data Module (PDM) ECG Circuit Board & Connector Specifications:

• Circuit Board Dimensions:

• Length: 7.5 inches (190.5 mm)

• Width: 4.5 inches (114.3 mm)

• Thickness: 0.062 inches (1.57 mm)

• Connector Specifications:

• Type: Proprietary connector

• Number of Pins: 15

• Pin Diameter: 0.025 inches (0.635 mm)

• Operating Temperature:

• Range: 50°F to 104°F (10°C to 40°C)

• Storage Temperature:

• Range: -40°F to 158°F (-40°C to 70°C)

• Relative Humidity:

• Operating: 15% to 95% (non-condensing)

• Storage: 10% to 100% (non-condensing)

• Power Requirements:

• Voltage: 12 VDC

• Current: 500 mA (maximum)

• Material:

• PCB Base: FR-4 (glass-reinforced epoxy laminate)

• Weight:

• Approximately 0.2 lbs (90 g)

• Compliance Standards:

• IEC 60601-1

• ISO 13485

• Data Transmission:

• Protocol: Digital

• Speed: 9600 bps

• Protection Rating:

• IP Rating: IP21 (Drip-proof)

Feel free to provide additional information or specific details you require!
