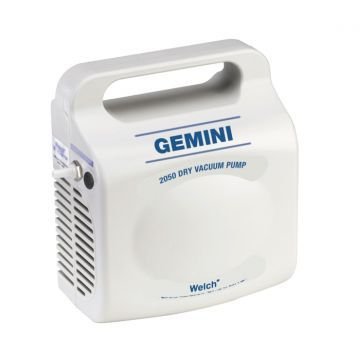

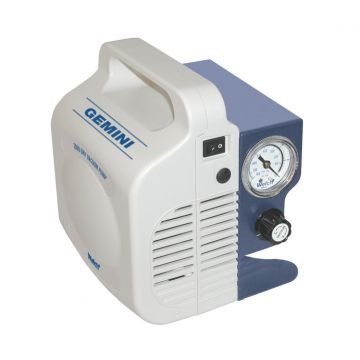

Gemini Dry Vacuum Pumps
Elevate your laboratory and field operations with the Gemini Dry Vacuum Pumps, engineered for precision and versatility. These portable pumps are particularly effective for organic filtration and degassing applications utilizing aqueous solutions, selected solvents, and moderate pH acids and bases. With high-performance wetted components resistant to corrosion, you can trust them to perform reliably in the most demanding environments.
Key Features
- Lightweight, compact, and easily portable, making it ideal for both lab and field use.
- Oil-free design ensures cleaner operation and reduces maintenance needs.
- Durable, chemically resistant wetted parts, including polyarylamide heads and Viton™ diaphragms, tubing, and valves.
- Powerful performance tailored for a variety of applications while being economical in energy consumption.
- Includes a DC car adapter (Part No. 1431B) for convenient field operation.
Applications
Specifications
| SKU |
Includes |
Max Pressure |
Motor Power |
Ambient Temperature Range |
Intake Thread NPT |
| 2050B-01 |
Adjustable Vacuum Gas Ballast |
22.4 PSIG |
0.7 kW @ 50 Hz, 0.85 kW @ 60Hz |
10°C - 40°C |
3/8 |
| 2060B-01 |
Adjustable Vacuum Gas Ballast |
22 PSIG |
0.7 kW @ 50 Hz, 0.85 kW @ 60Hz |
10°C - 40°C |
3/8 |
Additional Info
| SKU |
Dimensions |
Certification |
Power Requirement |
Plug Type |
| 2050B-01 |
7.6 in x 4.48 in x 7.5 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
| 2060B-01 |
9.25 in x 7.24 in x 8.5 in |
cUL, CE |
115V, 60Hz, 1 Phase |
NEMA 5-15 |
