GFK Floor Checkweighing Scales (0.005lb)
The GFK Floor Checkweighing Scales are engineered for precision in high-demand environments such as manufacturing, food processing, and inventory control. With capabilities for checkcounting to a predefined weight or count, this scale simplifies your operational workflows, ensuring accuracy and efficiency.
Key Features

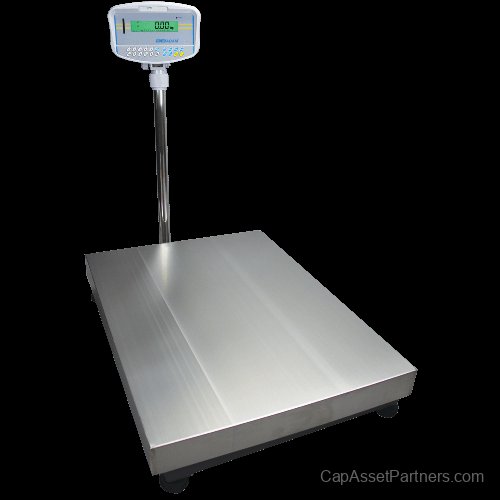

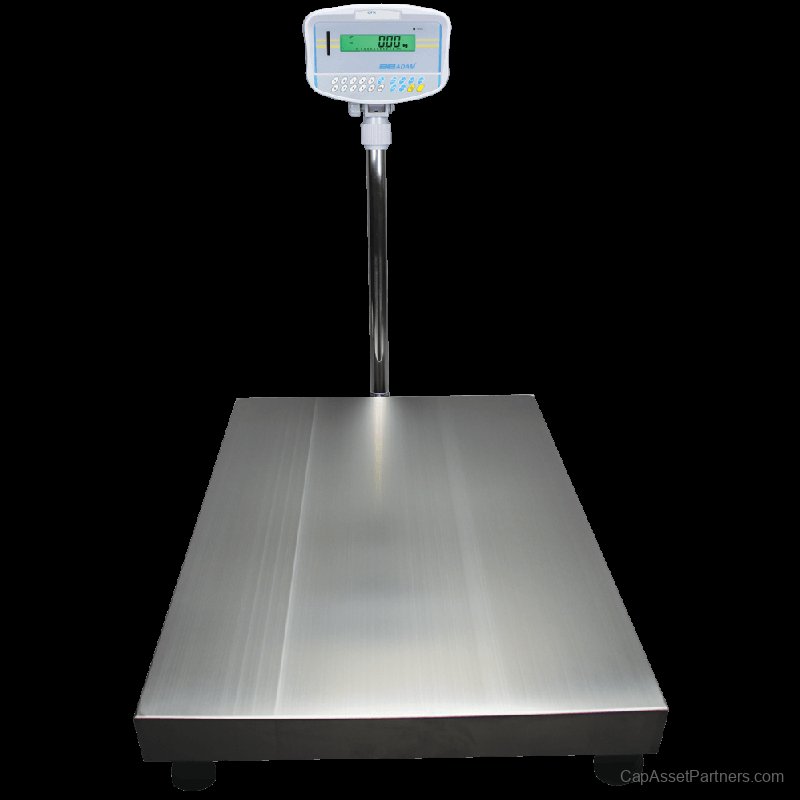

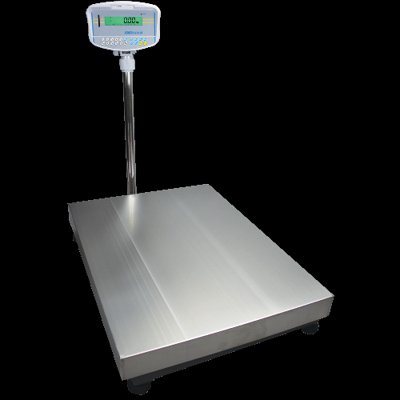

Built with a robust stainless steel platform and a reliable pillar-mounted ABS plastic indicator, this scale is suitable for a variety of counting and weighing applications. The large, bright backlit display provides clear visibility of unit weight, total weight, and piece count, even in challenging lighting conditions.
Hardware Specifications:
- Adjustable Leveling Feet: Optimize the scale's setup for enhanced stability.
- Color-Coded Keys: Facilitate quick recognition and access to frequently used buttons.
- Stainless Steel Pan: A large grade 304 stainless steel pan designed for fast cleaning and maintenance.
- RS-232 Interface: Enables quick connection to computers and printers for seamless data management.
- Sealed Keypad: Protects against dirt and spills, ensuring long-lasting durability.
Software Features:
- Audible Overload Alarm: Alerts users when the capacity limit is exceeded.
- Checkweighing with Alarm: Provides audible warnings to ensure accuracy.
- Parts Counting: Allows you to select sample sizes freely for precise counting.
- Parts Counting Optimization: Automatically refines piece weight as additional parts are added.
- Preset Tare Function: Speeds up repetitive weighing tasks.
- Programmable Counting: Set to count to a predetermined number of parts for efficient processing.
- Selectable Digital Filtering: Minimizes the effects of vibration and environmental disturbances.
- Zero-Tracking Feature: Ensures that the display resets to zero after each weighing.
Display Features:
- Backlit LCD: Provides vivid visibility in any lighting condition, enhancing usability.
- Programmable Backlight: Customize the backlight settings to your preferences for energy efficiency.
- Capacity Tracker: Monitors potential overloads with ease for improved safety management.
- Checkweighing LEDs: Clearly indicates whether weights are under, over, or within acceptable limits.
Specifications
| SKU |
Repeatability |
Linearity |
Pan Size |
Includes |
Operating Temperature Range |
Warranty |
| GFK 600aM |
0.2 lb |
0.2 lb |
400 x 500mm |
NTEP / Measurement Canada Approval |
-10°C to 40°C |
5-Years |
| GFK 300aM |
0.1 lb |
0.1 lb |
400 x 500mm |
NTEP / Measurement Canada Approval |
-10°C to 40°C |
5-Years |
| GFK 150aM |
0.05 lb |
0.04 lb |
400 x 500mm |
NTEP / Measurement Canada Approval |
-10°C to 40°C |
5-Years |
Additional Information
| SKU |
Dimensions |
Interface |
Material |
Power Requirement |
Display |
Model # |
| GFK 600aM |
15.7" x 24.4" x 33.9" |
RS-232, Optional USB |
ABS Plastic Indicator with Die-Cast Aluminum Base |
12VDC 800mA Adapter / Internal Rechargeable Battery |
Backlit LCD with 20mm-High Digits |
GFK 600aM |
| GFK 300aM |
15.7" x 24.4" x 33.9" |
RS-232, Optional USB |
ABS Plastic Indicator with Die-Cast Aluminum Base |
12VDC 800mA Adapter / Internal Rechargeable Battery |
Backlit LCD with 20mm-High Digits |
GFK 300aM |
| GFK 150aM |
15.7" x 24.4" x 33.9" |
RS-232, Optional USB |
ABS Plastic Indicator with Die-Cast Aluminum Base |
12VDC 800mA Adapter / Internal Rechargeable Battery |
Backlit LCD with 20mm-High Digits |
GFK 150aM |
