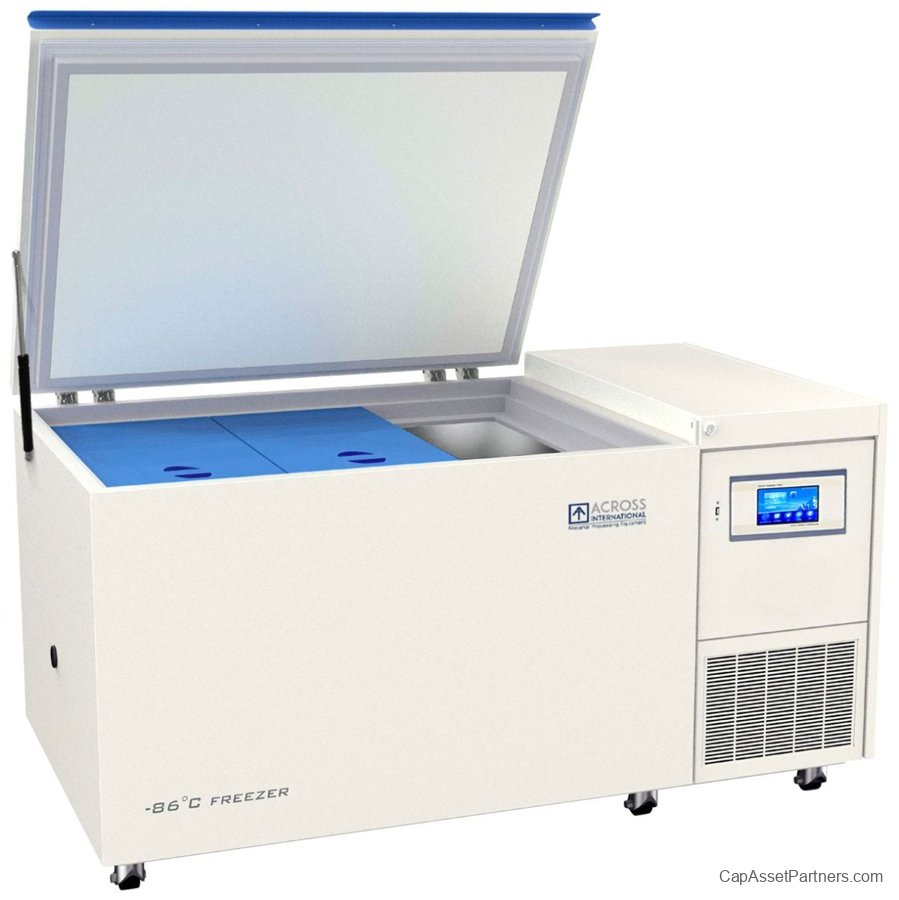

Glacier Ultra-Low Temperature Chest Freezers
Introducing the Glacier Ultra-Low Temperature Chest Freezers, your reliable solution for secure and efficient sample storage. Engineered for both small and large capacity needs, these freezers feature an innovative dual parallel compressor design that ensures speedy cooling and excellent temperature consistency within the chamber.
Features:
- Optional remote alarm with R485 and 4-20mA transmitter for enhanced monitoring
- Wide operational temperature range of -10°C to -86°C, accommodating diverse storage requirements

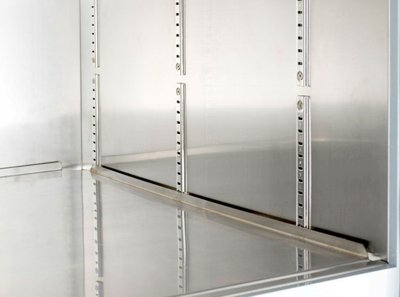

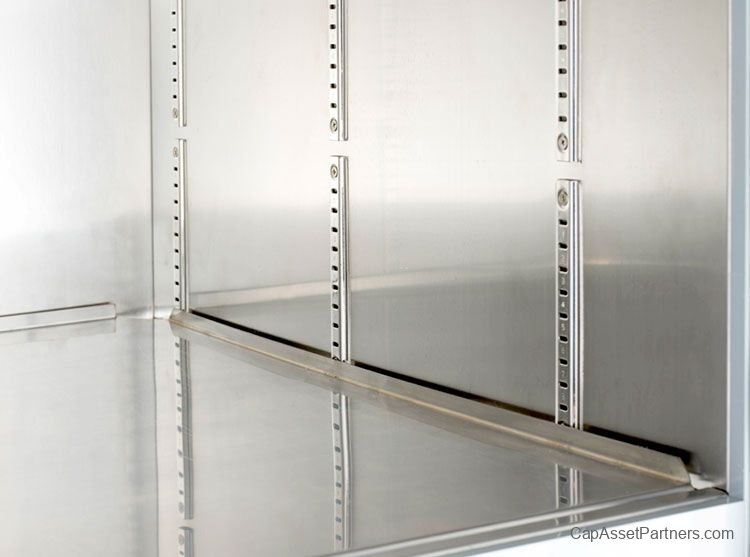

- Durable all stainless steel interior for optimal cleanliness and minimised maintenance

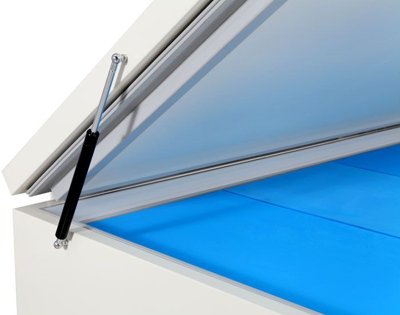

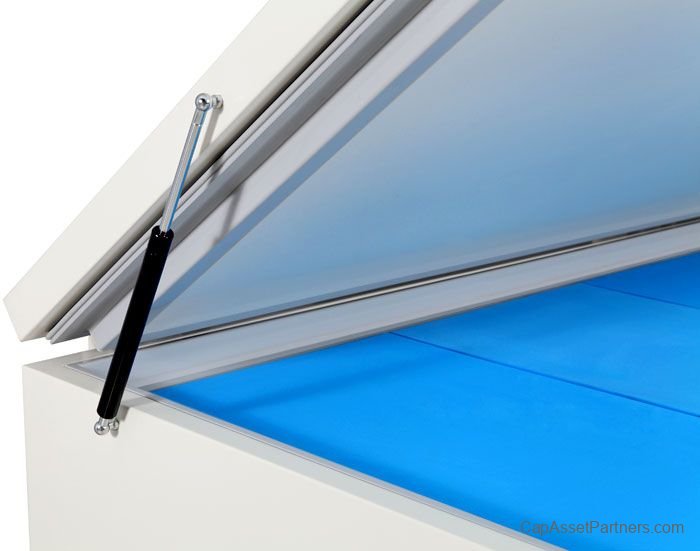

- External door equipped with hydraulic support for effortless accessibility
- Powerful dual parallel compressor for rapid cooling and impressive temperature uniformity

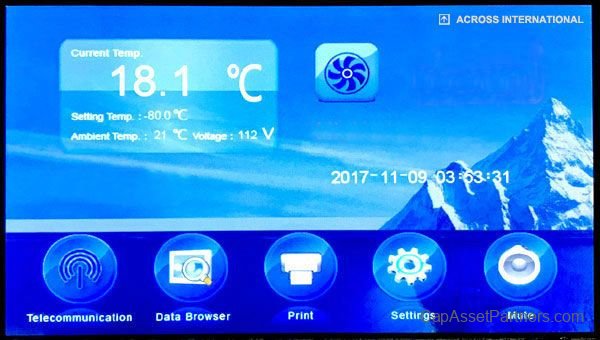

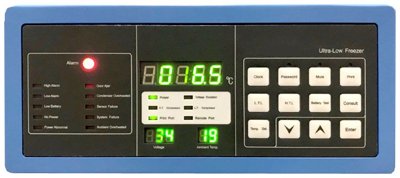

- Central control system with a large 7" touch screen LCD for user-friendly operation
- Lockable door for added security of sensitive contents
- Integrated high/low temperature alarms, power failure alarms, door open alarms, and filter clogging alarms
- Password-protected security features to safeguard both stored products and the unit itself

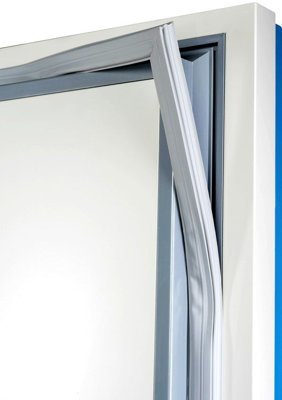

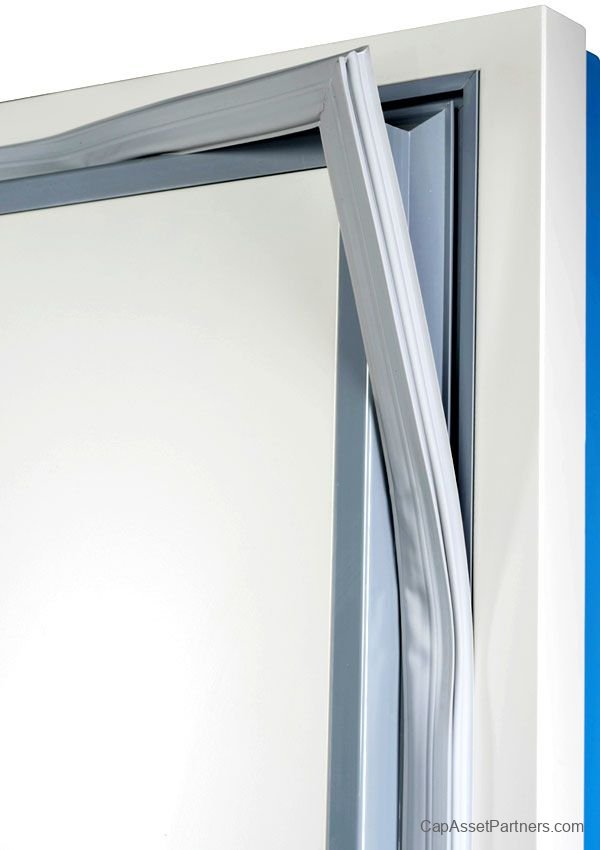

- Dual silicon sealing gaskets for optimal airtight performance
- 24-hour battery backup for controller ensures continuous operation during power interruptions
- USB interface for convenient data export and archival
- Extremely quiet operation without compromising reliability
- Utilises environmentally friendly refrigerant to minimize ecological impact
Applications:
- Preservation of DNA, RNA, and virus samples
- Storage of biological organs
Inclusions:
- Ice scraper for maintaining optimal internal conditions
- Additional access port inside the cap for easy sample retrieval
- Wrench for maintenance tasks
- Two door keys for secure access
- USB drive containing data reading program for easy data management
Certifications & Compliances:
- Compliant with CDC and VFC regulations
- ETL tested to UL and CSA standards for safety assurance
- Optional ETL testing to UL 471 for commercial refrigeration and freezer standards
Specifications:
| SKU |
Door Type |
Operating Temperature Range |
Compliance |
Warranty |
Hinge |
| G21c.220 |
Solid Horizontal Swing Door |
-40°C to -86°C |
UL STD 61010-1 & CSA C22.2 NO. 61010-1 |
One Year |
|

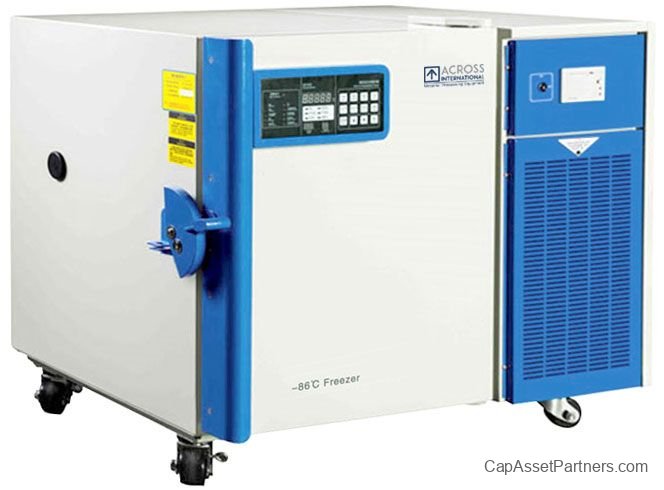

| G04 |

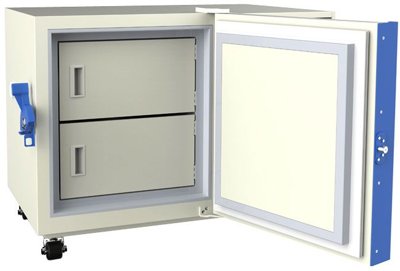

Solid Swing Door |
-40°C to -86°C |
UL STD 61010-1 & CSA C22.2 NO. 61010-1 |
Two Year |
Right |

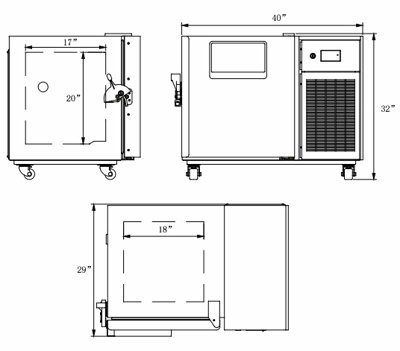

Additional Information:
| SKU |
Dimensions |
Electrical Information |
Refrigerant |
Controller |
| G21c.220 |
51.0 in x 84.0 in x 48.0 in |
220V (±10%), 60Hz, 10.5A, 1-PH, 2057W |
Ai Proprietary Mixture Gases |
Microprocessor |
| G04 |

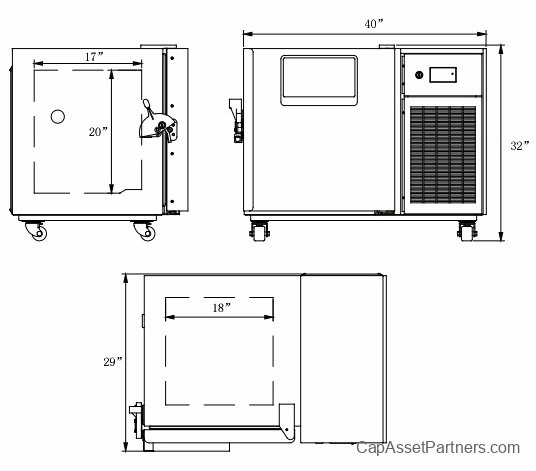

32.0 in x 46.0 in x 45.0 in |
110V (±10%), 60Hz, 1-Phase, 950W, 8.6A |
Ai Proprietary Mixture Gases, CFC-Free |
Microprocessor |
Note: It is recommended not to plug in your freezer for the first 24 hours upon receiving the unit. Components and materials used are RoHS-compliant and non-toxic for safe operation.
