Guardian™ 5000 Series Hot Plate Stirrers

Get Quote Add to Quote List

Do you have a Guardian™ 5000 Series Hot Plate Stirrers you want to sell?

We buy used equipment! Learn about selling

Manufactured by: Ohaus Corporation

Category: Hot Plate Stirrers

Ohaus Corporation Guardian™ 5000 Series Hot Plate Stirrers

Ohaus Corporation None - Hot Plate Stirrers

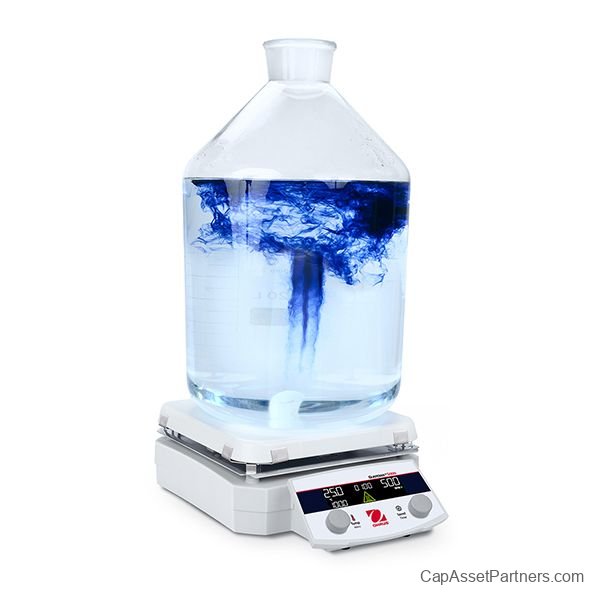

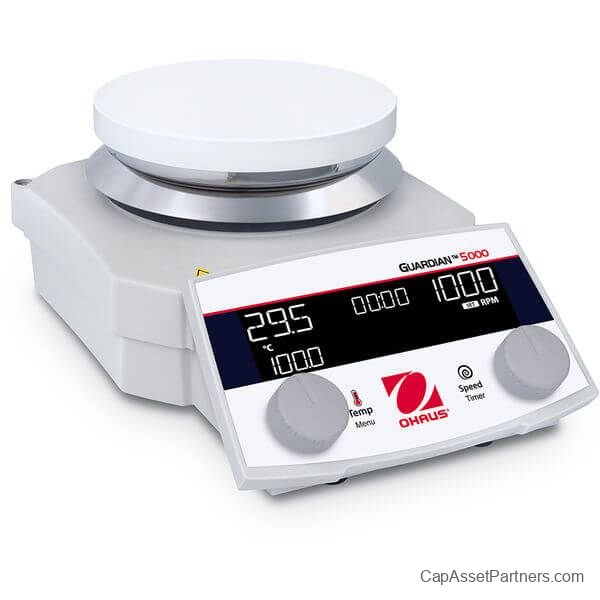

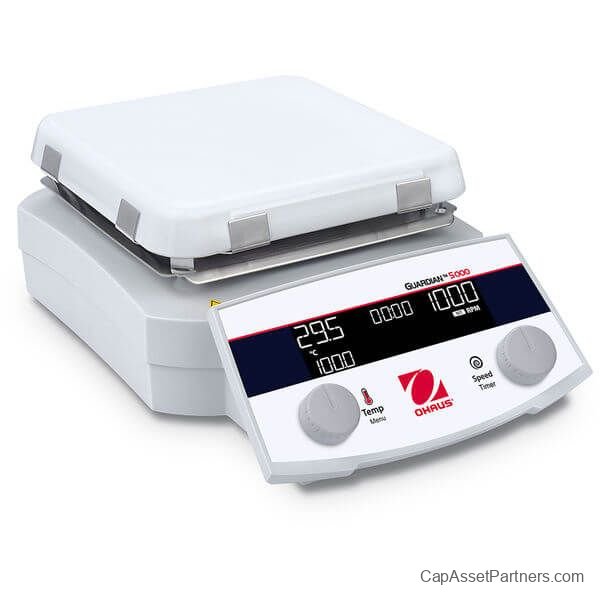

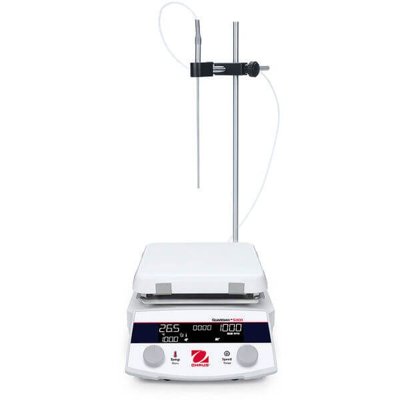

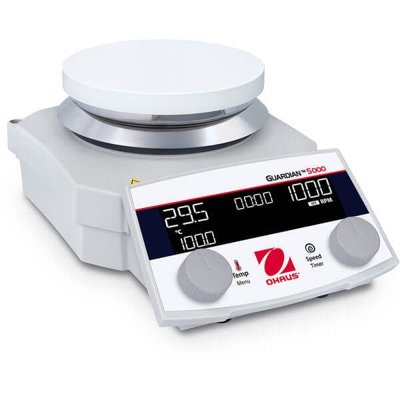

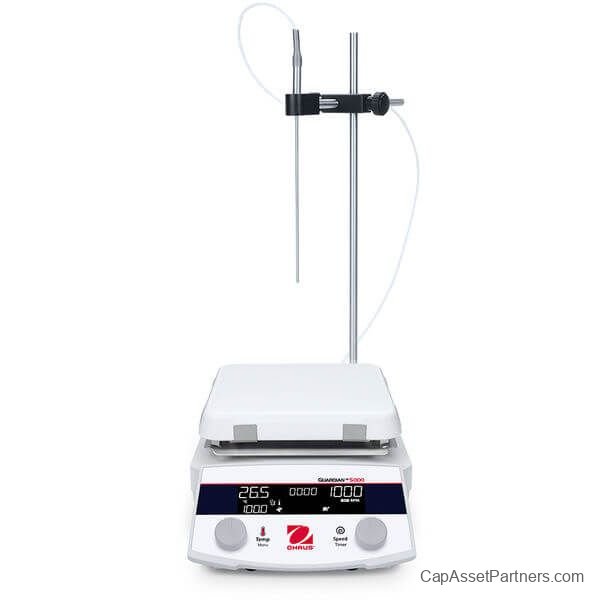

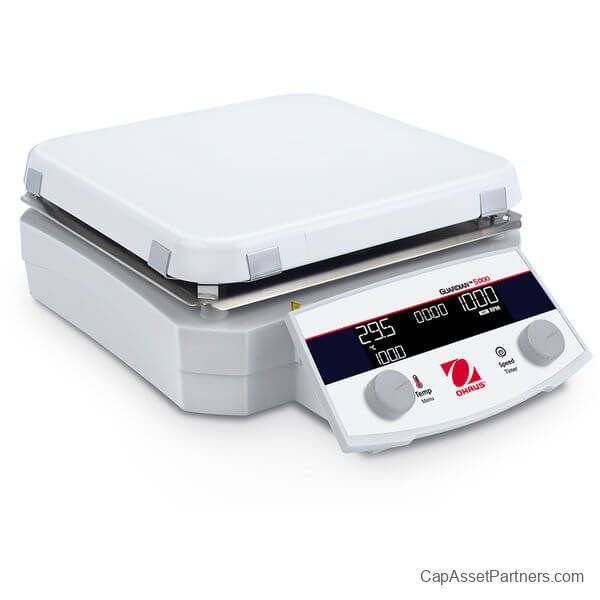

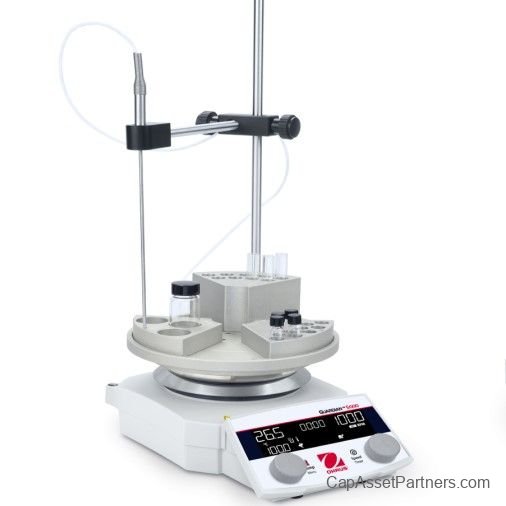

Guardian™ 5000 Series Hot Plate Stirrers

Experience the perfect blend of power and precision with the Guardian™ 5000 Series Hot Plate Stirrers, meticulously designed for diverse applications in research, academia, and industrial environments. These advanced stirrers are engineered to facilitate powerful heating and effective mixing, ensuring reliable performance for all your laboratory needs.

Key Features:

Ideal for precise lab processes demanding controlled heating, including temperature-sensitive reactions, sterilization, pH optimization, endothermic reactions, denaturing, and sample preparation.

Equipped with a backlit LCD display that provides clear indicators for heating and stirring statuses, as well as a hot surface alert for safety awareness.

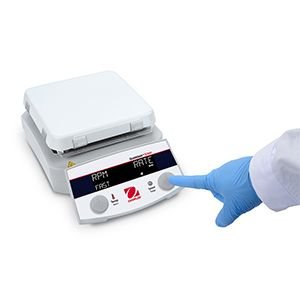

Operates on 100-120 VAC or 220-240 VAC at 50/60 Hz, and features intuitive rotary switch knobs for straightforward control.

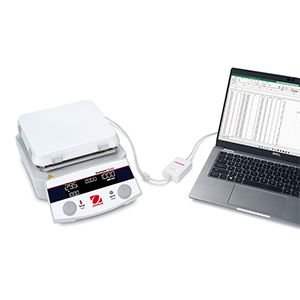

Includes RS232 connectivity for efficient data logging and remote operation, enhancing user convenience.

Designed with a large, angled front panel that allows for easy distance monitoring; features smooth surfaces that simplify cleaning tasks.

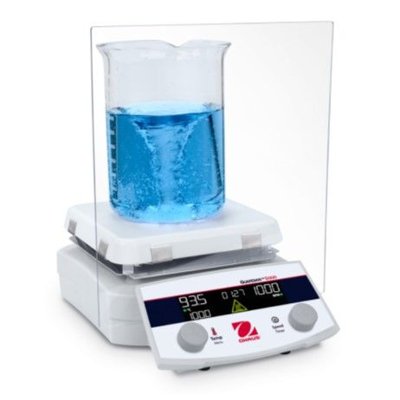

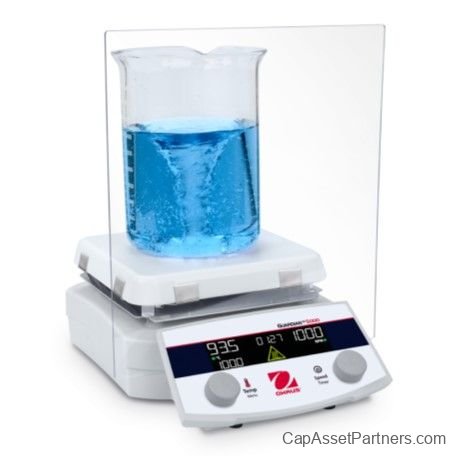

Comes with an audible alarm for operational alerts and IP32 protection to safeguard against water ingress, along with an optional quick-install splash shield to bolster safety.

Specifications:

SKU	Speed	Capacity	Temperature Accuracy	Power Requirement	Model #
30981783	50 rpm - 1800 rpm	22 L	±0.2°C + PT1000 (Class A) Tol.	220-240 VAC, 10A, 50/60Hz, 2066 W	E-G52HS10C -K1
30981782	50 rpm - 1800 rpm	22 L	±0.2°C + PT1000 (Class A) Tol.	100-120 VAC, 15A, 50/60Hz, 1650 W	E-G52HS10C -K1
30981779	50 rpm - 1800 rpm	20 L	±0.2°C + PT1000 (Class A) Tol.	220-240 VAC, 7A, 50/60Hz, 1050 W	E-G52HS07C -K1
30981778	50 rpm - 1800 rpm	20 L	±0.2°C + PT1000 (Class A) Tol.	100-120 VAC, 15A, 50/60Hz, 1582 W	E-G52HS07C -K1
30541638	50 rpm - 1800 rpm	22 L	±0.2°C + PT1000 (Class A) Tol.	220-240 VAC, 10A, 50/60Hz, 2066 W	E-G52HS10C
30541637	50 rpm - 1800 rpm	22 L	±0.2°C + PT1000 (Class A) Tol.	100-120 VAC, 15A, 50/60Hz, 1650 W	E-G52HS10C
30541632	50 rpm - 1800 rpm	20 L	±0.2°C + PT1000 (Class A) Tol.	220-240 VAC, 7A, 50/60Hz, 1050 W	E-G52HS07C
30541631	50 rpm - 1800 rpm	20 L	±0.2°C + PT1000 (Class A) Tol.	100-120 VAC, 15A, 50/60Hz, 1582 W	E-G52HS07C
30541630	50 rpm - 1800 rpm	20 L	±0.2°C + PT1000 (Class A) Tol.	220-240 VAC, 4A, 50/60Hz, 656 W	E-G52HSRDA
30541629	50 rpm - 1800 rpm	20 L	±0.2°C + PT1000 (Class A) Tol.	100-120 VAC, 8A, 50/60Hz, 600 W	E-G52HSRDA

Additional Information:

SKU	Communication	Calibration	Display	Dimensions	Includes
30981783	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	15.84 in x 11.28 in x 4.65 in	Temperature Probe, Holder Kit
30981782	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	15.84 in x 11.28 in x 4.65 in	Temperature Probe, Holder Kit
30981779	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	12.94 in x 8.69 in x 4.56 in	Temperature Probe, Holder Kit
30981778	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	12.94 in x 8.69 in x 4.56 in	Temperature Probe, Holder Kit
30541638	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	15.84 in x 11.28 in x 4.65 in
30541637	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	15.84 in x 11.28 in x 4.65 in
30541632	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	12.94 in x 8.69 in x 4.56 in
30541631	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	12.94 in x 8.69 in x 4.56 in
30541630	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	10.21 in x 6.87 in x 4.26 in
30541629	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	10.21 in x 6.87 in x 4.26 in
