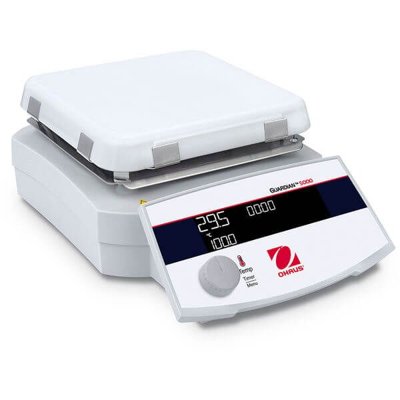

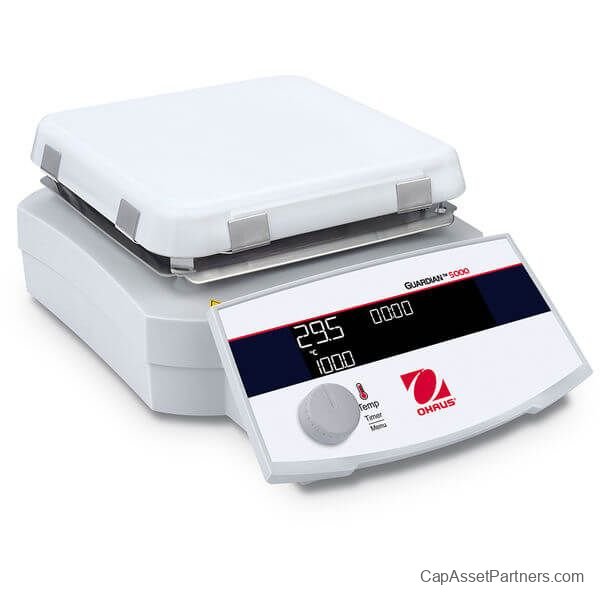

Ohaus Corporation Guardian™ 5000 Series Hot Plates

Guardian™ 5000 Series Hot Plates

Designed for utmost safety and versatility, the Guardian™ 5000 Series Hot Plates are the ideal solution for research, academic, and industrial environments. These hot plates deliver exceptional heating performance with advanced hardware and software, ensuring optimal results for various applications. Choose from four models that can reach temperatures of up to 550°C, each with three temperature control modes to facilitate quick and precise heating without overshoot.

Key Features:

Supports a variety of controlled heating processes, including temperature-sensitive reactions, sterilization, endothermic reactions, denaturation, and sample preparation.

Equipped with a backlit LCD display that shows heating and stirring statuses, along with a hot surface indicator for enhanced safety.

Dual voltage operation (100-120 V or 220-240 V) at 50/60 Hz, controlled via a user-friendly rotary switch knob.

RS232 connectivity for effortless data logging and remote control capabilities.

Features a large, angled front panel for remote monitoring, easy-to-clean smooth surfaces, an audible alarm for alerts, and IP32 protection against dust and moisture, with an optional quick-install splash shield.

Specifications:

SKU	Temperature Accuracy	Power Requirement	Model #
30541633	±0.2°C + PT1000 (Class A) Tol.	100-120 VAC, 15A, 50/60Hz, 1582 W	E-G52HP07C
30541634	±0.2°C + PT1000 (Class A) Tol.	220-240 VAC, 7A, 50/60Hz, 1050 W	E-G52HP07C
30981780	±0.2°C + PT1000 (Class A) Tol.	100-120 VAC, 15A, 50/60Hz, 1582 W	E-G52HP07C -K1
30981781	±0.2°C + PT1000 (Class A) Tol.	220-240 VAC, 7A, 50/60Hz, 1050 W	E-G52HP07C -K1

Additional Information:

SKU	Communication	Calibration	Display	Dimensions	Includes
30541633	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	12.94 in x 8.69 in x 4.56 in
30541634	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	12.94 in x 8.69 in x 4.56 in

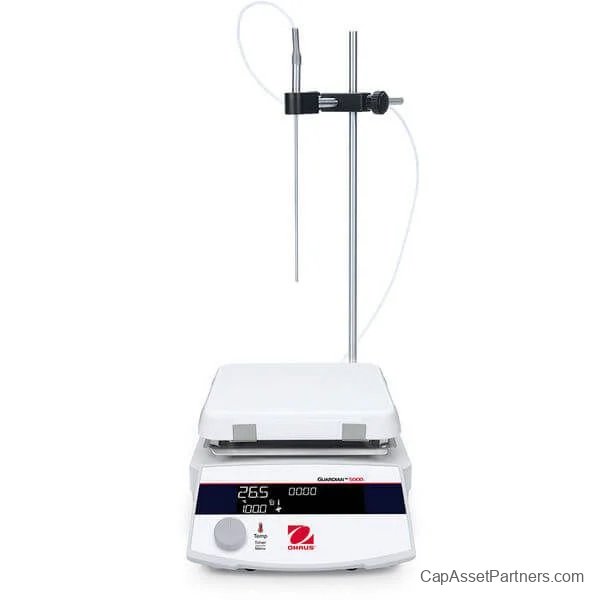

30981780	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	12.94 in x 8.69 in x 4.56 in	Temperature Probe, Holder Kit
30981781	Ethernet, RS232, USB	Temperature Calibration 3 Plate/3 Probe	LCD	12.94 in x 8.69 in x 4.56 in	Temperature Probe, Holder Kit
