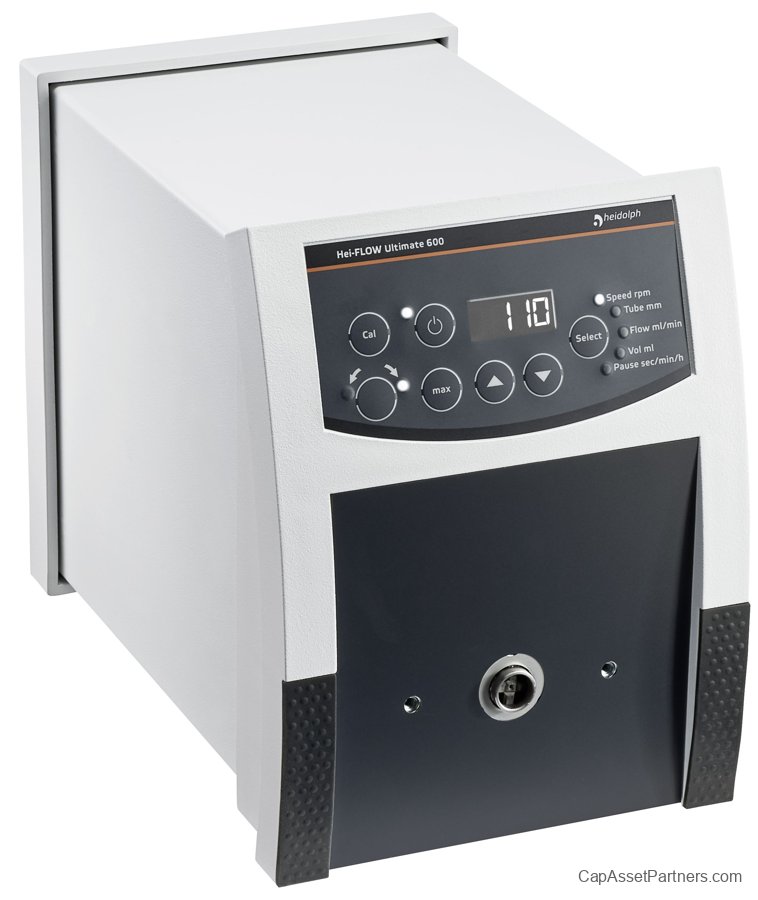

Hei-FLOW Ultimate Peristaltic Pumps
The Hei-FLOW Ultimate Peristaltic Pumps provide unparalleled precision and control for all your pumping and dosing requirements. Designed for accuracy and reproducibility, these units are perfect for laboratory settings that demand exceptional performance.
Key Features:
- Flexible control options: Adjust speed, direction, and on/off functionality via an analog interface or digital RS 232 interface.
- High control accuracy: Achieve flow control with precision of ±0.5%.
- Customizable operation: Individual calibration of flow volume and flow rate ensures optimal performance for your specific needs.
- Simple direction change: Switch between clockwise and counterclockwise operation effortlessly with the push of a button.
- Comprehensive digital display: Easy-to-read digital readout of critical parameters including speed, tubing diameter, flow rate in mL/min, dosing volume, interval dosing, and a pause function.
- Optional foot pedal control: Connect to an external foot pedal remote control via cable for convenient operation outside a closed fume hood.
- Versatile configurations: The Ultimate 120 is compatible with single-channel or multi-pump heads, while the Ultimate 600 is tailored for single-channel pump heads.
Multi-Channel Operation for Expert 120:
- Maximize productivity: Operate up to 12 individual cassettes on a single pump drive and pump head system to enhance your throughput.
- Dynamic metering: Execute separate metering into multiple vessels with varying feed rates in a single operation by utilizing different tubing dimensions to adjust flow rates.
- Quick tubing changes: Replace tubing in seconds to maintain workflow efficiency.
- Enhanced low pulsation performance: Opt for 8-roller pump heads for applications requiring smooth, low-pulsation flow in addition to the standard 4-roller system.
- Effortless cassette handling: Change cassettes easily, even during operation—with no operational restrictions.
- Click-in simplicity: Adjustments and changes to cassettes are made quick and easy by clicking in place.
- Cost-effective upgrades: Upgrade your single-channel pump drive to multi-channel use with just one adaptor, choosing the head and cassette configuration that best suits your application needs.
Specifications:
| SKU |
Includes |
Control Accuracy |
Interval Dosing |
Volume Dosing |
Interface |
| 036150110 |
- |
±2% |
±0.5% |
0.001-9999mL in breaks 0.1 sec-750h |
Analog interface for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop |
| 036150170 |
Adaptor for Multi-Channel Pump Heads |
±1% |
±0.5% |
0.001-9999mL in breaks 0.1 sec-750h |
Analog interface for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop |
| 036150090 |
- |
±1% |
±0.5% |
0.001-9999mL in breaks 0.1 sec-750h |
Analog interface for speed 0 - 10 V / 4 - 20 mA direction of rotation start/stop |
Additional Information:
| SKU |
Display |
| 036150110 |
Digital RS 232 |
| 036150170 |
Digital RS 232 |
| 036150090 |
Digital RS 232 |
