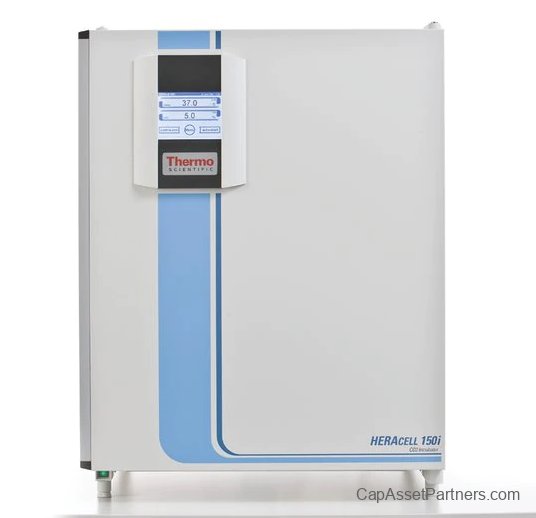

Heracell™ 150i CO2 Medical Device Incubators

The Heracell™ 150i CO2 Medical-Device Incubators are precision-engineered instruments approved as an FDA Class II Medical Device for in vitro fertilization (IVF) applications. Constructed with non-corrosive stainless steel or 100% copper interior chambers, these incubators create an optimal environment for cell growth while safeguarding precious samples.

Key Features:

ContraCon Moist Heat Decontamination: This innovative technology ensures effective cleaning and operational reliability, minimizing the risk of contamination.

iCAN™ Touchscreen Control:

• Convenient door-mounted placement for easy access and visibility.
• User-friendly on-screen prompts streamline measurement and control navigation.
• Available in multiple languages for a global user base.
• Environmental changes are logged and recorded on-screen for easy monitoring.
• Visual alarm system for immediate alerts on parameter deviations.

Rapid Humidity Recovery:

• Features a large, directly heated water reservoir.
• Recovery times are up to five times faster than conventional water pans.
• Equipped with a water level alarm that provides both audible and visual alerts.

O₂ Control with Auto-Cal:

• Two O₂ control ranges to precisely maintain oxygen concentration.
• Ideal for applications with specific oxygen requirements for enhanced cell culture conditions.

TC Sensor Technology:

• Standardized thermal conductivity (TC) sensor that employs accurate gas sensor technology for reliable monitoring.

Specifications:

SKU	Internal Dimensions	External Dimensions	Ambient Temperature Range	Concentration Range	Oxygen Control
50116050	20.9 in x 18.5 in x 23.9 in Each Chamber		3°C to 55°C	Optional 1 to 21% or 5 to 90%	Optional 1 to 21% or 5 to 90%
51026282	20.9 in x 18.5 in x 23.9 in	30.8 in x 25.1 in x 24.1 in	3°C to 55°C	Optional 1 to 21% or 5 to 90%	Optional 1 to 21% or 5 to 90%
51026283	20.9 in x 18.5 in x 23.9 in	30.8 in x 25.1 in x 24.1 in	3°C to 55°C	Optional 1 to 21% or 5 to 90%	Optional 1 to 21% or 5 to 90%
50116048	20.9 in x 18.5 in x 23.9 in Each Chamber		3°C to 55°C	Optional 1 to 21% or 5 to 90%	Optional 1 to 21% or 5 to 90%

Additional Information:

SKU	Certification	Power Requirement	Humidity Source	Relative Humidity
50116050	CE, CSA	120V, 50/60Hz	Integrated Water Reservoir	<90% at 37°C
51026282	CE, CSA	120V, 50/60Hz	Integrated Water Reservoir	<90% at 37°C
51026283	CE, CSA	120V, 50/60Hz	Integrated Water Reservoir	<90% at 37°C
50116048	CE, CSA	120V, 50/60Hz	Integrated Water Reservoir	<90% at 37°C
