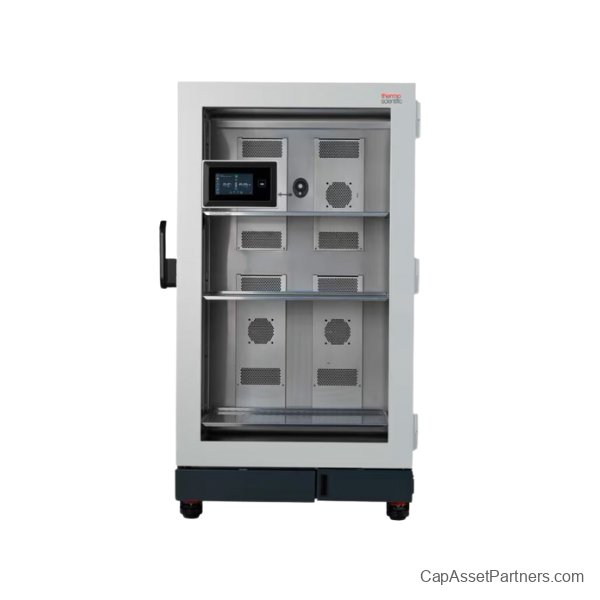

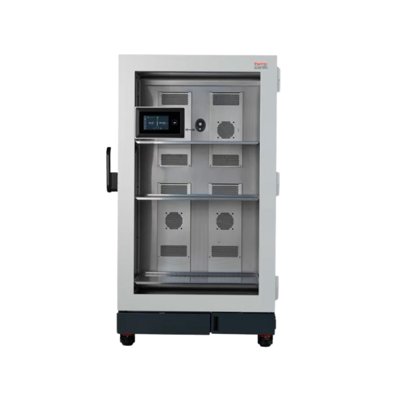

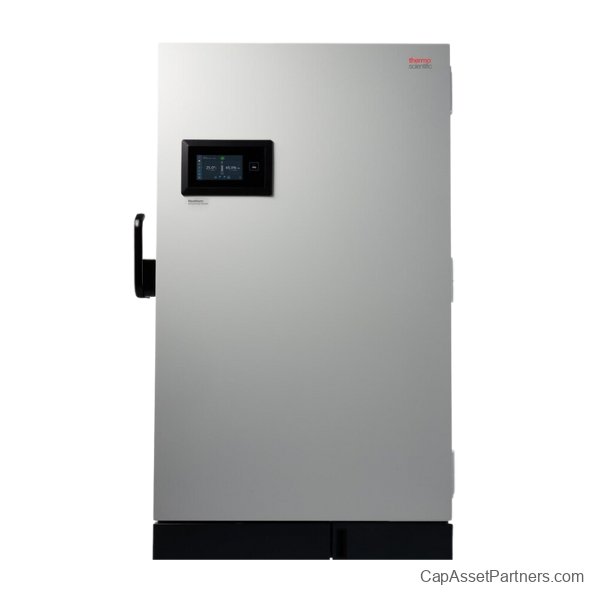

Heratherm™ Environmental CO2 Chambers
The Heratherm™ Environmental CO2 Chambers are engineered for exceptional environmental control, ensuring accurate CO2 levels, temperature, and humidity settings that are critical for cell culture, tissue engineering, and advanced biological research.
Key Features:
- Peltier Technology: Achieves remarkable temperature stability and uniformity while utilizing lower energy consumption.
- Active Humidity Control: Designed for CO2 incubation with integrated humidity management.
- Stable Growth Conditions: Maintain a safe environment for optimal sample growth.
- User-Friendly Touchscreen: Easily program temperature settings and process durations with an intuitive interface.
- Data Capture Ports: Two access ports allow for independent data monitoring; internal logs maintain set and actual parameters to ensure compliance with 21 CFR Part 11 documentation requirements.
- Efficient Data Retrieval: Access data via USB stick, Ethernet connection, or Thermo Cloud utilizing the OPC-UA standard.
- Sample Protection: Features a personalized user ID, with options for standard or automated door locks and various alarm settings for peace of mind.
- Hygienic Design: Rounded corners and removable shelving simplify cleaning procedures, reducing cross-contamination risks.
- Compact Design: Conveniently designed to fit through standard doors for easy installation and immediate operation upon setup.
Specifications
| SKU |
Certification |
Internal Dimensions |
External Dimensions |
Type |
Relative Humidity |
CO2 Range |
| ECS750 |
UL, CE |
33.1 in x 57.1 in x 24.8 in |
42.5 in x 72.2 in x 34.8 in |
CO2 Chamber |
10% to 90% |
0% to 20% |
| ECG750 |
UL, CE |
33.1 in x 57.1 in x 24.8 in |
42.5 in x 72.2 in x 34.8 in |
CO2 Chamber |
10% to 90% |
0% to 20% |
Additional Information
| SKU |
Max Capacity |
Control |
Power Requirement |
| ECS750 |
36 Shelves |
Touch Screen |
100V to 240V, 50/60Hz, 1400W |
| ECG750 |
36 Shelves |
Touch Screen |
100V to 240V, 50/60Hz, 1400W |
