Hewlett Packard Codemaster 100

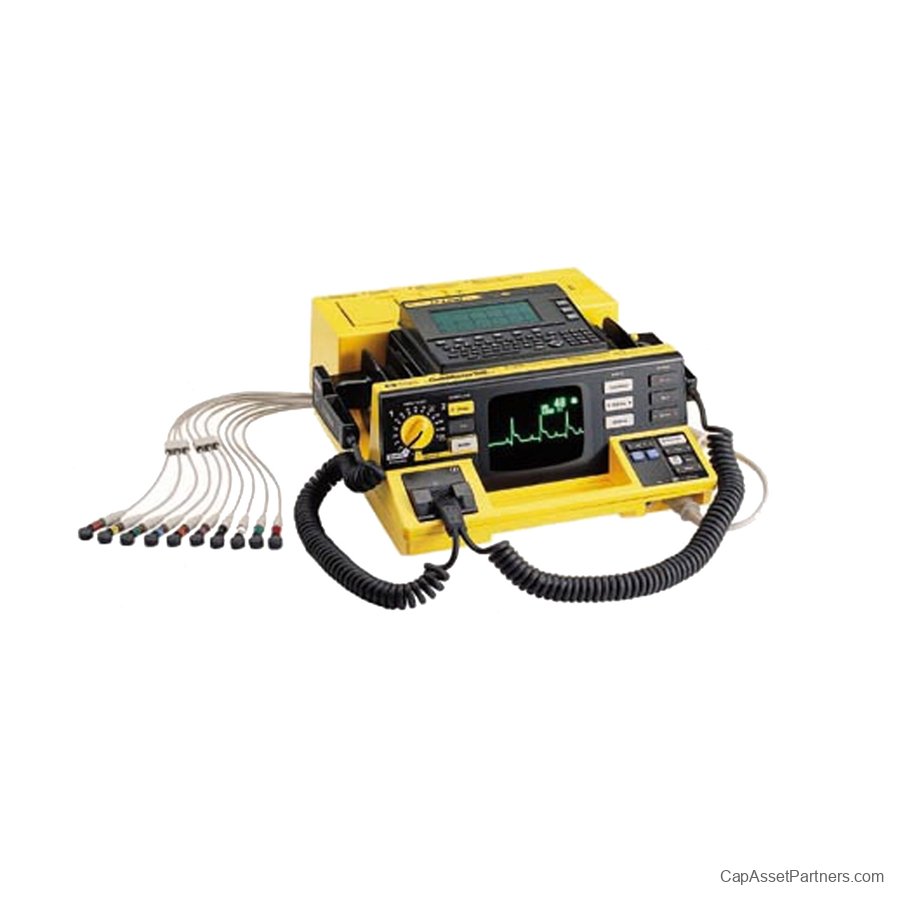

Hewlett Packard CodeMaster 100 Defibrillator/Monitor
The Hewlett Packard CodeMaster 100 redefines excellence in patient treatment and transportation within emergency environments. This advanced defibrillator/monitor is engineered for optimal performance, offering rapid charging and reliability in a rugged, water-resistant design that can endure the demands of emergency use.
Ideal for both Basic Life Support (BLS) and Advanced Life Support (ALS) personnel, the CodeMaster 100 features an intuitive 1-2-3 operation, making it easy for BLS responders to deliver effective care. Its intelligent battery support system ensures that you are always ready, while the easy-to-use pads facilitate hands-free defibrillation. The optional shock advisory feature assists users by indicating whether a rhythm is shockable and provides guidance throughout the process.
For ALS responders, the CodeMaster 100 delivers a range of advanced capabilities, including manual defibrillation, integrated pulse oximetry, non-invasive pacing, and synchronized cardioversion. These features empower healthcare professionals to maintain complete control during critical situations.
Additionally, the CodeMaster 100 boasts a comprehensive 12-Lead ECG system along with predictive instruments and interpretation tools. This functionality accelerates the diagnosis of acute cardiac ischemia and arrhythmias, significantly reducing the time to treatment and improving patient outcomes.
Key Features:

• 12 Lead Defibrillator with Pacing Advisory and SpO2

• Durable construction with materials designed to withstand everyday impacts

• Built-in pediatric paddles conveniently accessible under slide-off adult electrodes

Elevate your emergency response capabilities with the Hewlett Packard CodeMaster 100, the trusted choice for serious medical professionals dedicated to saving lives in critical situations.

Hewlett Packard Codemaster 100 Specifications

General

• Dimensions: 6.25 in (H) × 1.75 in (W) × 15.13 in (D) (15.9 cm × 34.9 cm × 38.4 cm)

• Weight: 21.5 lbs (9.8 kg)

• Defibrillator Waveform: Damped sinusoidal

• Output Energy (delivered): 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 300, and 360 joules

• Charge Control: Push-button on apex paddle and on front panel

• Charge Time: Less than 5 seconds to 360 joules with fully charged battery installed

• Armed Indicator: Charge done tone, charge done light on apex paddle and on defibrillator front panel, available energy indicated on display

• Paddle Contact Indicator (PCI): 3-color LED bar graph array on Sternum paddle indicates quality of defibrillator paddle contact before discharge

Paddles and Inputs

• Paddles: Standard paddles are water-resistant anterior/anterior, adult and pediatric, with PCI. Adult electrodes area: 83 cm². Paddle cord length: 10 ft (3 m).

• Synchronizer: SYNC message appears on monitor and is annotated periodically on recorder while in synchronous mode. An audible beep sounds with each detected R-wave, with a marker on the monitor and sync designator on the recorder strip indicating the discharge point.

• Optional Shock Advisor: Enables the CodeMaster 100 to function as an advisory or "semi-automatic" defibrillator.

• Inputs: ECG may be viewed through paddles or patient cable. Lead I, II, III or PADDLES/PADS selectable. Additional leads (aVR, aVF, aVL, V leads) are available. Monitor and recorder indicate selected ECG source.

Heart Rate Features

• Heart Rate Display: Digital readout on monitor from 15 to 300 bpm

• Heart Rate Alarms: Three configurable pairs of high and low heart rate alarm limits from 20 to 280 bpm
